Summary of Contents for Univex SILVER 50

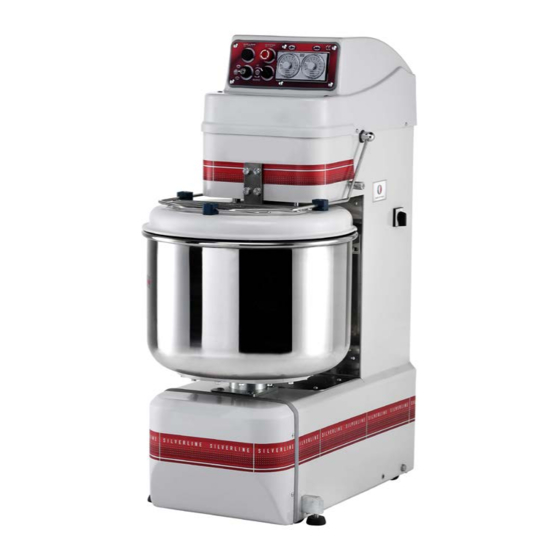

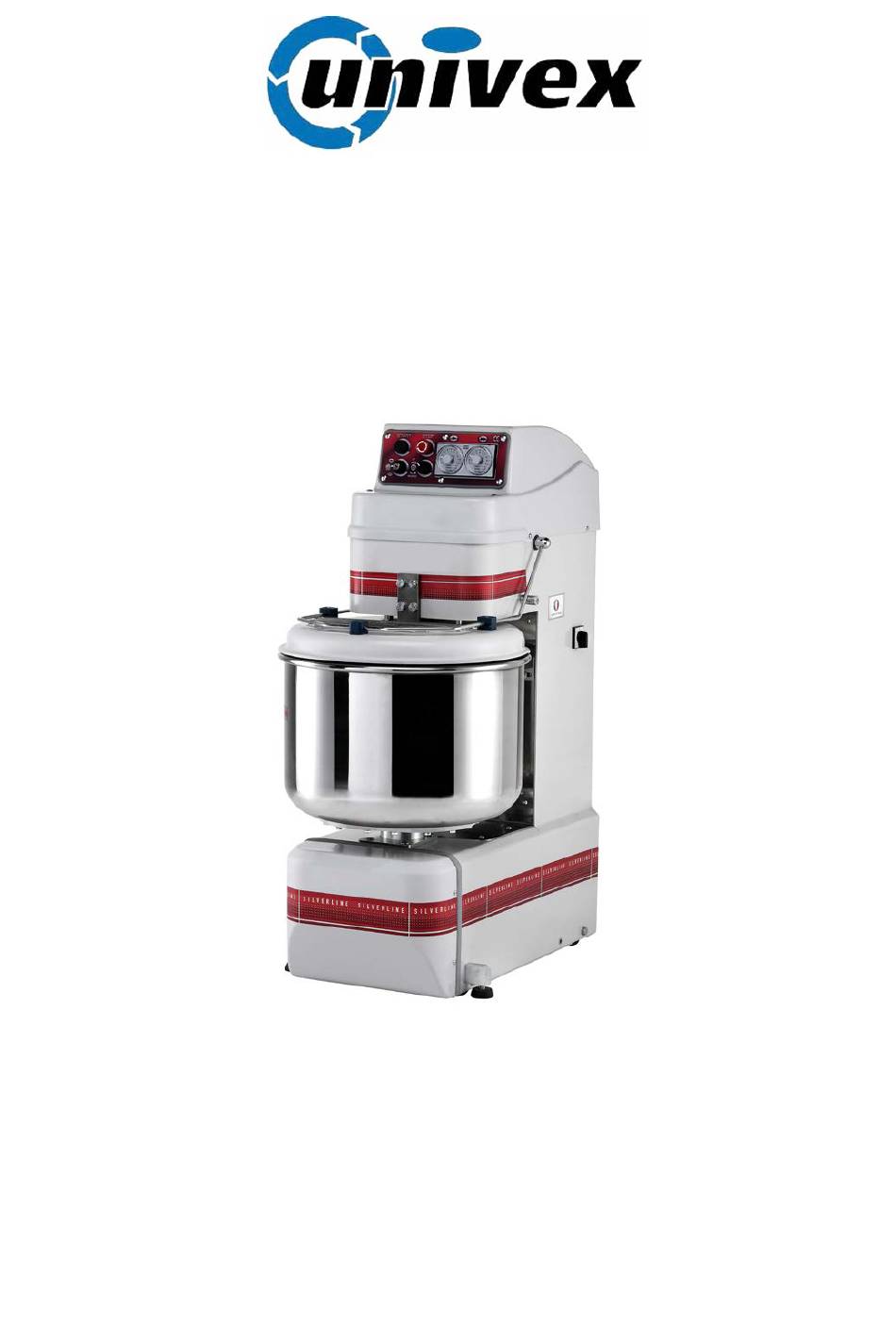

- Page 1 SILVER 50 SPIRAL MIXER OPERATOR’S MANUAL Persons under age 18 are not permitted to operate or have accessibility to operate this equipment per U.S. Dept. Of Labor Employment Standards Administration Fact Sheet No. ESA913. SL50 REV A PAGE 1...
- Page 2 Welcome to Univex Thank you for purchasing this Univex Product. Your new SILVER 50 spiral mixer has been designed with advanced performance and safety features that make it an excellent addition to your food preparation equipment. Like all Univex mixers, slicers, meat grinders and accessories, this mixer is engineered to provide years of reliable service.
-
Page 3: Table Of Contents
USER FRIENDLY SAFETY GUARD ........OPERATING THE SILVER 50 SPIRAL MIXER ...... -
Page 4: Overall View Of The Machine
OVERALL VIEW OF SPIRAL MIXER FIGURE 1 1. CONTROL PANEL 2. STAINLESS STEEL GRID 3. USER FRIENDLY SAFETY GUARD 4. BOWL 5. LOWER FRONTAL COVER 6. ADJUSTABLE FOOT 7. WHEELS 8. MAIN POWER CABLE 9. FIXED MIXTURE GUARD 10. MAIN POWER SWITCH PAGE 4... -
Page 5: Choosing The Right Location For Your Mixer
USER FRIENDLY SAFETY GUARD Your SILVER 50 spiral mixer features a two part safety guard. The Swing Safety Guard is the front one and it is easily opened by lifting it up. -
Page 6: Operating The Silver 50 Spiral Mixer
OPERATING THE SILVER 50 SPIRAL MIXER Your Univex SL50 mixer is designed to meet the pizza and baker’s demand for an efficient, dependable appliance. It should give unfailing performance over a period of years when operated and maintained according to the instructions contained herein. -
Page 7: Capacity Chart
NOTE: Overloading the mixer beyond the factory specifications can damage the mixer and will avoid the warranty. * Absorption Ratio (% AR) water weight / Flour weight SILVER 50 MIXER CAPACITY CHART SILVER 50 KG (110 LB) OF MIXING DOUGH PRODUCT FLOUR BATCH LOW GLUTEN FLOUR 60% AR 65 LB. -
Page 8: Cleaning Your Mixer
CLEANING YOUR MIXER Consistent use of the following procedures will ensure that your mixer is in optimum operating condition. • Warning: disconnect the electrical power supply before cleaning. • Wash the body of the mixer, safety guard, the bowl, spiral, countershaft with warm water and mild soap. -
Page 9: Trouble Shooting Guide
TROUBLE-SHOOTING GUIDE TROUBLE POSSIBLE CAUSE REMEDY 1. MIXER WILL NOT 1.1 ELECTRICAL SERVICE DOWN. 1.1 CHECK ELECTRICAL SERVICE. REPLACE OPERATE FUSEOR RESET CIRCUIT BREAKER AS NECESSARY 1.2 BURNED SWITCH CONTACTS. 1.2 REPLACE OR CLEAN CONTACTS.* 1.3 TIMER NOT TURNED ON 1.3 TURN TIMER ON 1.4 BURNED OUT MOTOR 1.4 REMOVE, TEST, REPAIR OR REPLACE*... -
Page 10: Mixer Dimensions
Dimensions Figure 3 PAGE 10... -
Page 11: Figure 4A Wiring Diagram
WIRING DIAGRAM 208-240 V, 60HZ, 3PH figure 4a WARNING: Whenever maintenance is being performed, or whenever the top cover or rear access panel have been removed , DISCONNECT THE ELECTRICAL POWER SUPPLY and place a tag on it indicating that the mixer is being worked on. PAGE 11... -
Page 12: Figure 4B Wiring Diagram
WIRING DIAGRAM 208-240 V, 60HZ, 3PH figure 4b WARNING: Whenever maintenance is being performed, or whenever the top cover or rear access panel have been removed , DISCONNECT THE ELECTRICAL POWER SUPPLY and place a tag on it indicating that the mixer is being worked on. PAGE 12... -
Page 13: Figure 4C Wiring Diagram
WIRING DIAGRAM 208-240 V, 60HZ, 3PH figure 4c WARNING: Whenever maintenance is being performed, or whenever the top cover or rear access panel have been removed , DISCONNECT THE ELECTRICAL POWER SUPPLY and place a tag on it indicating that the mixer is being worked on. -
Page 14: Figure 4D Wiring Diagram
PAGE 13 WIRING DIAGRAM 208-240 V, 60HZ, 3PH figure 4d WARNING: Whenever maintenance is being performed, or whenever the top cover or rear access panel have been removed , DISCONNECT THE ELECTRICAL POWER SUPPLY and place a tag on it indicating that the mixer is being worked on. -
Page 15: Figure 4E Wiring Diagram
PAGE 14 WIRING DIAGRAM 208-240 V, 60HZ, 3PH figure 4 e WARNING: Whenever maintenance is being performed, or whenever the top cover or rear access panel have been removed , DISCONNECT THE ELECTRICAL POWER SUPPLY and place a tag on it indicating that the mixer is being worked on. PAGE 15... -
Page 16: Warranty
Warranty The Univex SL50 spiral mixer carries a One-Year, on-site, parts and labor warranty against any defects in materials or workmanship. The one-year period begins on the date of purchase by the end user and remains in full effect provided the unit is used properly and in accordance with our operators manual.
