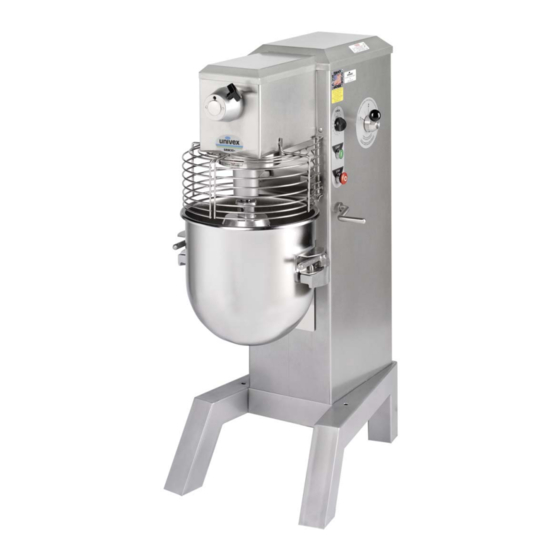

Univex SRM40+ Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

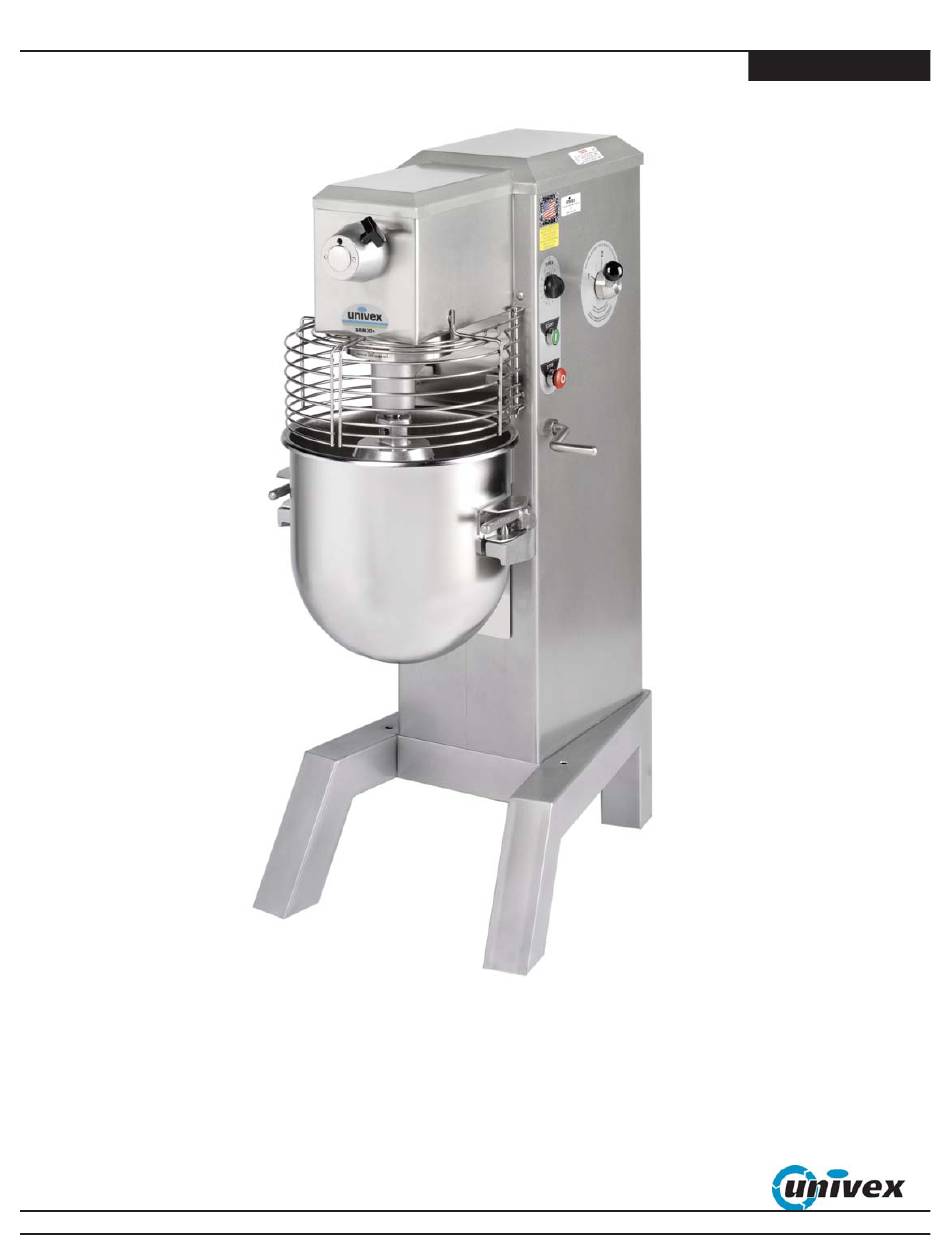

OPERATORS
SRM40+
MANUAL
MIXER
Persons under the age of 18 are not permitted to operate or have accessibility to
operate this equipment per U.S. Department of Labor Employment Standards
Administration Fact Sheet No. ESA91-3.
SRM40+/0109
ED1
0011040

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRM40+ and is the answer not in the manual?

Questions and answers

Related Manuals for Univex SRM40+

Summary of Contents for Univex SRM40+

  • Page 1 OPERATORS SRM40+ MANUAL MIXER Persons under the age of 18 are not permitted to operate or have accessibility to operate this equipment per U.S. Department of Labor Employment Standards Administration Fact Sheet No. ESA91-3. SRM40+/0109 0011040...
  • Page 2 Your new SRM40+ mixer has been designed with advanced performance and safety features that make it an excellent addition to your food preparation equipment. Like all Univex mixers, slicers, meat grinders and accessories, this mixer is engineered to provide years of reliable service.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION PAGE TABLE OF CONTENTS ............2 LIST OF ILLUSTRATIONS .

  • Page 4: Figure 1 Overall View Of The Srm40+ Mixer

    OVERALL VIEW OF FOOD MIXER FIGURE 1 BOWL SUPPORT 12. LOWER MOUNTING BRACKET BOWL CLAMP 13. UPPER MOUNTING BRACKET BOWL 14. TIMER BOWL SUPPORT PIN 15. SPEED CONTROL LEVER BOWL MOUNTING BRACKET 16. SPEED INDICATOR LABEL BEATER HEAD SHAFT 17. POWER CORD INGREDIENT CHUTE 18.

  • Page 5: Choosing The Right Location For Your Mixer

    CHOOSING THE RIGHT LOCATION FOR YOUR NEW MIXER When selecting the best location for the mixer, it is helpful to consider the following: • Where is the best location for the operator, both for saving steps and easy viewing? • Is this a good location for product flow as in: •...

  • Page 6: Operating The Srm40+ Mixer

    OPERATING THE SRM40+ MIXER Your Univex SRM40+ mixer is designed to meet the cook’s and baker’s demand for an efficient, dependable appliance. It should give unfailing performance over a period of years when operated and maintained according to the instructions contained herein.

  • Page 7: Using The Bowl Lift

    NOTE: Do not operate the mixer without a bowl in place. VARI-SPEED CONTROL A major advantage of Univex mixers is there Continuously Variable Transmission (CVT). Unlike other mixers, CVT lets you change speeds while the mixer is running. To change speeds move the speed control lever (Figure 1 [15]) to the desired speed.

  • Page 8: Using The Ingredients Chute

    USING THE INGREDIENTS CHUTE The ingredients chute provided with your mixer enables you to add ingredients to the bowl while the mixer is running and without opening the Swing Ring™ Safety Guard. The chute may be installed on the front or side of either half of the guard. Once the chute is properly installed, it can remain in place permanently, if desired.

  • Page 9: Using The Power Take-Off (Pto)

    USING THE POWER TAKE-OFF (PTO) The Power Take-Off (PTO) hub (Figure 1 [10]) accommodates #12 tapered attachments such as a vegetable slicer and shredder, or a meat and food chopper. The mixers speed control lever also controls the PTO drive speed. Before installing attachments, turn the mixer off and disconnect the electrical power supply cord.

  • Page 10: Cleaning Your Mixer

    CLEANING YOUR MIXER Consistent use of the following procedures will ensure that your mixer is in optimum operating condition. • Warning: disconnect the electrical power supply cord before cleaning. • Wash the body of the mixer, the bowl support, and the beater shaft with warm water and mild soap. •...

  • Page 11: Trouble Shooting Guide

    TROUBLE-SHOOTING GUIDE TROUBLE POSSIBLE CAUSE REMEDY 1. Mixer will not 1.1 Electrical service down. 1.1 Check electrical service. Replace fuse or operate reset circuit breaker as necessary. 1.2 Burned switch contacts. 1.2 Replace or clean contacts. * 1.3 Timer not turned on. 1.3 Turn timer on.

  • Page 12: Figure 3 Beaters, Agitators, Bowls, & Accessories

    Beaters, Agitators, Bowls, and Accessories Available for the SRM40+ Mixer Figure 3 Part numbers (size in quarts) A. Batter Beater G. Bowl 1030116 (40) 1030104 (40) Optional Optional 1033107 (30 for 40) 1035023 (30 for 40) B. Wire Whip H. Splash/Extension Ring 1030114 (40) Optional...

  • Page 13: Figure 4 Table Of Mixing Capacities & Recommended Agitators

    Table of Mixing capacity and Recommended Agitators Figure 4 MODEL SRM 30+ 36 qt. 34 L Bowl capacity Attachment Hub Size Motor 1 Hp Kitchen Capacities Agitator (single batches) 30 lb. 13.6 kg. Batter beater Mashed potatoes 9 qt. 8.5 L. Whipping cream Wire whip 13 qt.

  • Page 14: 100V, 50/60Hz, 1Ph

    WIRING DIAGRAM (115/208-240V, 60HZ, 1PH) (220-240V, 50HZ, 1PH) 100V, 50/60HZ, 1PH FIGURE 5A IMPORTANT: Before making any electrical connections, check the specifications on the data plate, (located on the rear access panel Figure 1 [21]), to make sure that they agree with those of your electrical service.

  • Page 15: Installation Instructions For 3 Phase Mixers

    INSTALLATION INSTRUCTIONS FOR THREE PHASE MIXERS Ground Stud NOTE: 3 phase mixers are shipped with an unattached power Power Cord supply cord. (shipped with mixer) IMPORTANT: Power POWER SUPPLY CORD INSTALLATION AND Connection ELECTRICAL CONNECTION OF THESE MIXERS L1, L2, L3 MUST BE MADE BY A QUALIFIED, LICENSED ELECTRICIAN FOLLOWING ALL LOCAL AND NATIONAL ELECTRICAL CODES.

  • Page 16: Figure 5B Wiring Diagram 208-240V, 60Hz, 3Ph / 220-240V, 50Hz, 3Ph

    WIRING DIAGRAM (208-240V, 60HZ, 3PH) (220-240V, 50HZ, 3PH) FIGURE 5B IMPORTANT: Before making any electrical connections, check the specifications on the data plate, (located on the rear access panel Figure 1 [21]), to make sure that they agree with those of your electrical service.

  • Page 17: Figure 5C Wiring Diagram 460V, 60Hz, 3Ph / 380-400V, 50Hz, 3Ph

    WIRING DIAGRAM (460V, 60HZ, 3PH) (380-400V, 50HZ, 3PH) FIGURE 5C IMPORTANT: Before making any electrical connections, check the specifications on the data plate, (located on the rear access panel Figure 1 [21]), to make sure that they agree with those of your electrical service.
  • Page 18 8:00 a.m. and 5:00 p.m. local time, Monday through Friday. Univex will not cover overtime charges of any kind. Please call the Univex Warranty Service Department at (800) 258-6358 to report any warranty claims before arranging repair or attempting to return the unit to Univex Corporation.
