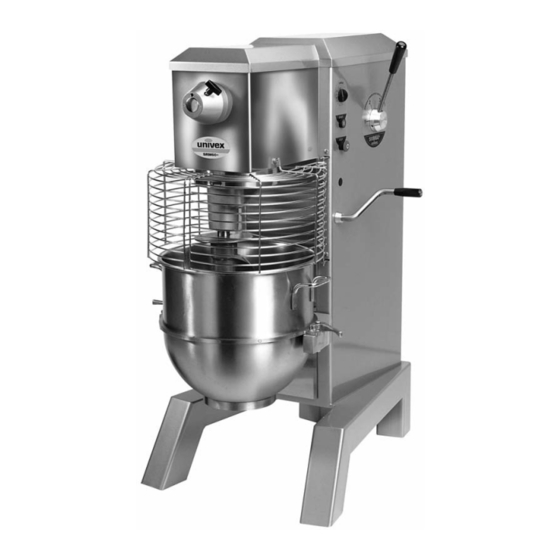

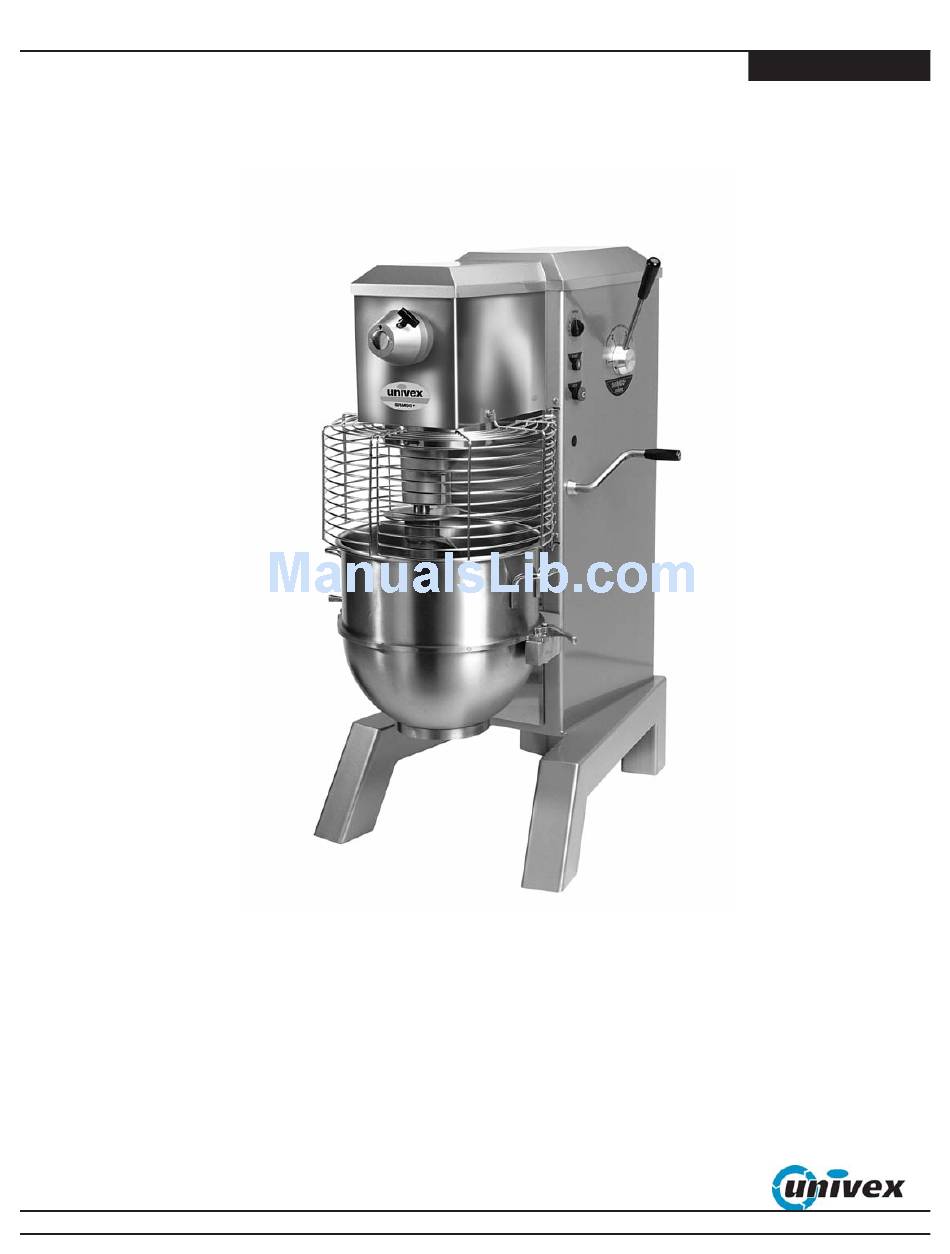

- Page 1 OPERATORS SRM60+ MANUAL MIXER Persons under the age of 18 are not permitted to operate or have accessibility to operate this equipment per U.S. Department of Labor Employment Standards Administration Fact Sheet No. ESA91-3. SRM60+/0109 0011066...
- Page 3 Your new SRM60+ mixer has been designed with advanced performance and safety features that make it an excellent addition to your food preparation equipment. Like all Univex mixers, slicers, meat grinders and accessories, this mixer is engineered to provide years of reliable service.
-
Page 4: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE TABLE OF CONTENTS ............2 LIST OF ILLUSTRATIONS . -
Page 5: Figure 1 Overall View Of The Srm60+ Mixer
OVERALL VIEW OF FOOD MIXER FIGURE 1 BOWL 11. TIMER BOWL RING 12. SPEED CONTROL LEVER BEATER HEAD SHAFT 13. SPEED INDICATOR LABEL INGREDIENT CHUTE 14. START PUSH-BUTTON (GREEN) MAGNET 15. STOP PUSH-BUTTON (RED) SWING RING™ SAFETY GUARD 16. BOWL LIFT HANDLE PTO HUB #12 17. -
Page 6: Choosing The Right Location For Your Mixer
CHOOSING THE RIGHT LOCATION FOR YOUR NEW MIXER When selecting the best location for the mixer, it is helpful to consider the following: • Where is the best location for the operator, both for saving steps and easy viewing? • Is this a good location for product flow as in: •... -
Page 7: Operating The Srm60+ Mixer
OPERATING THE SRM60+ MIXER Your Univex SRM60+ mixer is designed to meet the cook’s and baker’s demand for an efficient, dependable appliance. It should give unfailing performance over a period of years when operated and maintained according to the instructions contained herein. -
Page 8: Using The Bowl Lift
BEATER HEAD SHAFT UNTIL IT HAS FULLY STOPPED. VARI-SPEED CONTROL A major advantage of Univex mixers is there Continuously Variable Transmission (CVT). Unlike other mixers, CVT lets you change speeds while the mixer is running. To change speeds move the speed control lever (Figure 1 [12]) to the desired speed. -
Page 9: Using The Ingredients Chute
USING THE INGREDIENTS CHUTE The ingredients chute provided with your mixer enables you to add ingredients to the bowl while the mixer is running and without opening the Swing Ring™ Safety Guard. The chute may be installed on the front or side of either half of the guard. Once the chute is properly installed, it can remain in place permanently, if desired. -
Page 10: Using The Power Take-Off (Pto)
USING THE POWER TAKE-OFF (PTO) The Power Take-Off (PTO) hub (Figure 1 [7]) accommodates #12 tapered attachments such as a vegetable slicer and shredder, or a meat and food chopper. The mixers speed control lever also controls the PTO drive speed. Before installing attachments, turn the mixer off and disconnect the electrical power supply. -
Page 11: Cleaning Your Mixer
CLEANING YOUR MIXER Consistent use of the following procedures will ensure that your mixer is in optimum operating condition. • Warning: disconnect the electrical power supply before cleaning. • Wash the body of the mixer, the bowl support, and the beater shaft with warm water and mild soap. •... -
Page 12: Trouble Shooting Guide
TROUBLE-SHOOTING GUIDE TROUBLE POSSIBLE CAUSE REMEDY 1. Mixer will not 1.1 Electrical service down. 1.1 Check electrical service. Replace fuse or operate reset circuit breaker as necessary. 1.2 Burned switch contacts. 1.2 Replace or clean contacts. * 1.3 Timer not turned on. 1.3 Turn timer on. -
Page 13: Figure 3 Beaters, Agitators, Bowls, & Accessories
Beaters, Agitators, Bowls, and Accessories Available for the SRM60+ Mixer Figure 3 Part numbers (size in quarts) A. Batter Beater H. Bowl Dolly 1061083 (60) Optional Optional 1061971 (60) 1061096 (30 for 60) 1030971 (30 for 60) B. Wire Whip I. -
Page 14: Figure 4 Table Of Mixing Capacities & Recommended Agitators
Table of Mixing capacity and Recommended Agitators Figure 4 MODEL SRM 60+ 72 qt. 68.1 L Bowl capacity Attachment Hub Size 3 Hp Motor Kitchen Capacities (single Agitator batches) 40 lb. 18.2 kg. Batter beater, 4-Wing beater Mashed potatoes 12 qt. 11.4 L. -
Page 15: Figure 5A Wiring Diagram 208-240V, 60Hz, 1Ph / 220-240V, 50Hz, 1Ph
WIRING DIAGRAM (208-240V, 60HZ, 1PH) (220-240V, 50HZ, 1PH) FIGURE 5A IMPORTANT: Before making any electrical connections, check the specifications on the data plate, (located on the rear access panel Figure 1 [17]), to make sure that they agree with those of your electrical service. - Page 16 WIRING DIAGRAM (208-240V, 60HZ, 3PH) (220V, 50HZ, 3PH) (200V, 50/60HZ, 3PH) FIGURE 5B IMPORTANT: Before making any electrical connections, check the specifications on the data plate, (located on the rear access panel Figure 1 [17]), to make sure that they agree with those of your electrical service.
-
Page 17: Figure 5C Wiring Diagram 460V, 60Hz, 3Ph / 380V, 50Hz, 3Ph
WIRING DIAGRAM (460V, 60HZ, 3PH) (380V, 50HZ, 3PH) FIGURE 5C IMPORTANT: Before making any electrical connections, check the specifications on the data plate, (located on the rear access panel Figure 1 [17]), to make sure that they agree with those of your electrical service. -
Page 20: Warranty
8:00 a.m. and 5:00 p.m. local time, Monday through Friday. Univex will not cover overtime charges of any kind. Please call the Univex Warranty Service Department at (800) 258-6358 to report any warranty claims before arranging repair or attempting to return the unit to Univex Corporation.
