Parts and Maintenance Manual for

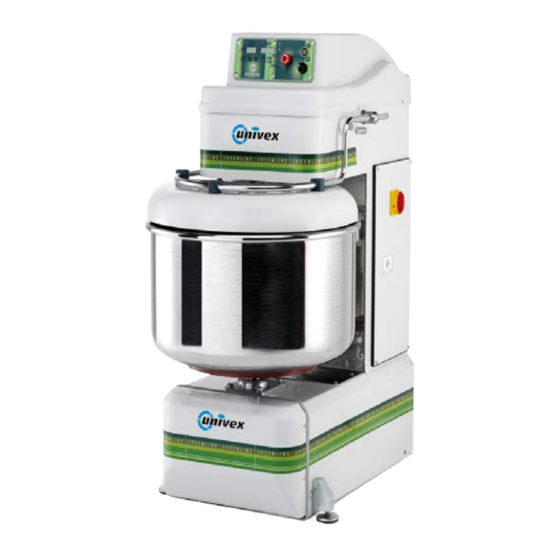

GL50 Spiral Mixer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Univex GL50

Summary of Contents for Univex GL50

  • Page 1 Parts and Maintenance Manual for GL50 Spiral Mixer...

  • Page 2: Warranty Terms

    Breakage or malfunctioning of these pieces depends on their use. They are therefore considered parts subject to wear and are not included in the warranty, unless they manifest evident defects in the parts or machinery. The parts subject to wear are: transmission belts, motors, bearings and bowl. GL50 MIXER 2 of 29...

  • Page 3: Conditions For Use

    Incorrect connection makes the warranty void. Preservation of the machine: Storage before a long period out of service Clean the mixer thoroughly. Disconnect it from the electrical mains. If possible, put it back into its original packing. GL50 MIXER 3 of 29...
  • Page 4 Dimensions: GL50 MIXER 4 of 29...
  • Page 5 Cold water causes dough to be stiff and hard to mix, increasing the load on the mixer transmission and motor. Never use ICE as solid part, melt it before add it into the mixer bowl. Pie Dough can be succesfully mixed in speed “1” GL50 MIXER 5 of 29...

  • Page 6: Troubleshooting Guide

    5.1 GEARS NEED TO BE REPACKED WITH 5.2 NOTIFY A SERVICE AGENT GREASE OR OIL LEVEL IS LOW. 5.2 BADLY WORN OR FRYED DRIVE BELTS 5.2 REPLACE BELT 5.3 OVERLOAD MIXING BOWL. 5.3 ADJUST CONTENTS OF BOWL PER MIXING CAPACITIES TABLE GL50 MIXER 6 of 29...
  • Page 7 Periodically the mixer's automation functioning and earthing must be c hecked. Interval Method The operating modes, safety functions, terminal board contacts need t o be controlled as well as the integrity of the cables, luminous LEDs and ear thing system. GL50 MIXER 7 of 29...

  • Page 8: Cleaning And Maintenance Operations

    Cleaning: the mixer is not water-proof. Do not wash it with running water/hose. Clean it with a moist cloth and neutral detergents. Do not use excess amounts of water as it is hard to remove from the bowl. GL50 MIXER 8 of 29...
  • Page 9 S12003947 Belt Poly V J813 18 Rib S13000317 Bearing 6206 2RS 3 S13000327 Bearing 6306 2RS 3 S13000328 Bearing 6307 2RS 3 S00003294 Main Power Switch Group S03173098-2 Mobile Mixture Guard S00003296 Grid Micro Switch GL50 MIXER 9 of 29...

  • Page 10: Control Panel Descriptions

    It could be helpful at the start-up (for small quantities of dough) or at the end of the mixing cycle for very wet dough. Do not use it for more than 60 seconds. GL50 MIXER 10 of 29...
  • Page 11 -When the timers countdown they pass automatically from 1 speed to 2 speed and stop at the end of the mixing cycle. -You do not need to reset the programs every time you switch off and on the mixer. GL50 MIXER 11 of 29...
  • Page 12 Number Part Number Description Quantity S85193093-2 Control Panel Plate S25001487 Electronic Timer Chipboard S25009061 Emergency Stop Button S25004004 Manual Key Selector S09193097 Panel Decal S01167131 Waterproof Seal S00003380 Reverse Direction Button GL50 MIXER 12 of 29...
  • Page 13 DIN 936 Low Nut M14 DIN 934 Nut M8 DIN 933 Screw TE M8 X 70 DIN 471 Elastic Ring Ø 17 DIN 913 Pin M6 X 8 DIN 912 Screw TCEI M8 X 35 GL50 MIXER 13 of 29...
  • Page 14 Mixer Lid GL50 MIXER 14 of 29...
  • Page 15 DIN 933 Screw TE M10 X 40 DIN 126 Washer M10 ISO 7380 Screw TCBEI M6 X 10 DIN933 Screw TE M8 X 20 DIN 126 Washer M8 DIN 7991 Screw SPEI M10 X 20 GL50 MIXER 15 of 29...
  • Page 16 Main Mixer Body GL50 MIXER 16 of 29...
  • Page 17 Lower Mixer Body Parts Listing S85173091 Foot Block S14002811 Feet S1173094 Wheels S1173058 Wheel Shaft DIN 933 Screw TE M10 X 16 DIN 126 Washer M10 GL50 MIXER 17 of 29...
  • Page 18 Washer M8 DIN 934 Nut M8 DIN 988 Spacer 35x45x0,5 DIN 7991 Screw SPEI M8x20 DIN 933 Screw TE M8x20 DIN 913 Pin M5x8 DIN 6885 A small plate 8x7x60 DIN 603 Squared screw M8x110 GL50 MIXER 18 of 29...
  • Page 19 Spiral Transmission GL50 MIXER 19 of 29...
  • Page 20 Screw TE M10x25 DIN 126 Washer M10 DIN 912 Screw TCEI M12x50 DIN 603 SQUARED SCREW M8x110 DIN 912 Screw TCEI M10x16 DIN 6885 A SMALL PLATE 8x7x50 DIN 988 SPACER 30x42x0,5 DIN 471 SNAP ring Ø30 GL50 MIXER 20 of 29...
  • Page 21 Bowl Transmission Parts Drawing GL50 MIXER 21 of 29...
  • Page 22 Emergency stop button S25009061 Reverse bowl rotation button group S00003380 Manual Key selector GL S25004004 Microswitch group for bowl's guard S00003296 Control panel water proof seal S01167131 GreenLine panel decal S09193097 Control Panel Plate S85193093-2 GL50 MIXER 22 of 29...
  • Page 23 Greenline 50 Electrical Diagrams GL50 MIXER 23 of 29...
  • Page 24 GL50 MIXER 24 of 29...
  • Page 25 GL50 MIXER 25 of 29...
  • Page 26 GL50 MIXER 26 of 29...
  • Page 27 GL50 MIXER 27 of 29...
  • Page 28 GL50 MIXER 28 of 29...

  • Page 29: Obligations Of Informing Users

    The symbol of the barred waste bin on the appliance or its packaging indicates that the product at the end of its useful life it must be disposed of separately from other waste. GL50 MIXER 29 of 29...
