ENOCEAN:

EnOcean is a protocol designed for energy harvesting devices communication. The main
fields of application are building automation and domotics, but it can also be potentially
used in the industrial field.
EnOcean products include solutions for environment monitoring, smart metering and
lighting. Each device uses a unique ID for identification and one of the standardized profiles
(EEPs) for data transmission. Communication process may be secure or unsecure and may
be unidirectional or bidirectional (for devices that support Smart Acknowledge operating
mode).
EnOcean is based on wireless communication on 868.3 MHz ASK.
It is possible to connect up to 100 EnOcean devices to a single converter, where up to 32
can be in Secure Mode and up to 19 with Smart Acknowledge.

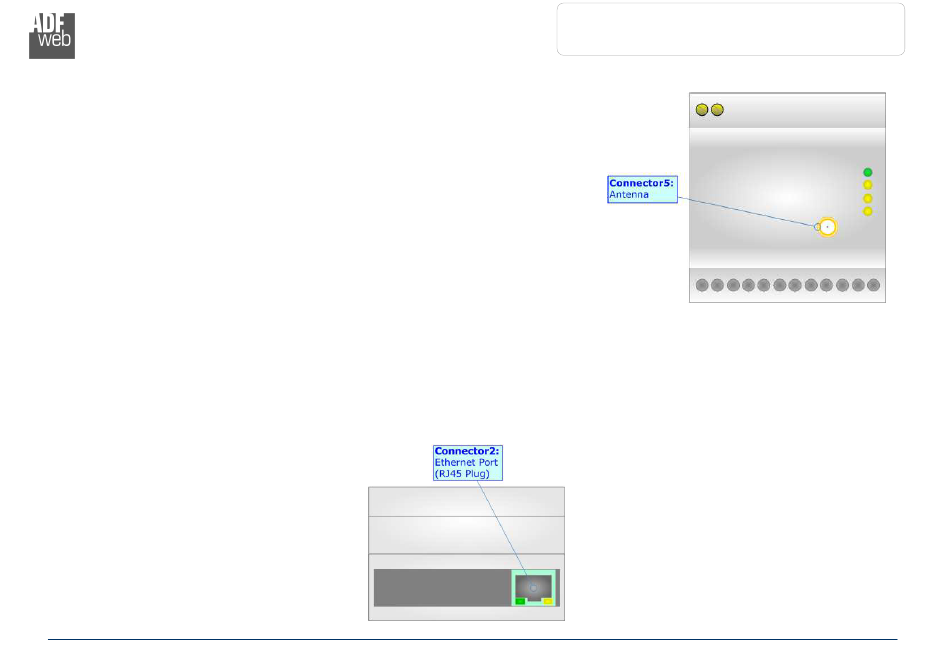

The Antenna connector is a SMA Female ('Female Outer Shell' and 'Female Receptacle') so
the Antenna must have a SMA Male connector.

ETHERNET:

The Ethernet port is used for programming the device.
The Ethernet connection must be made using Connector2 of HD67C67-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.
