Operating instructions
ET1000

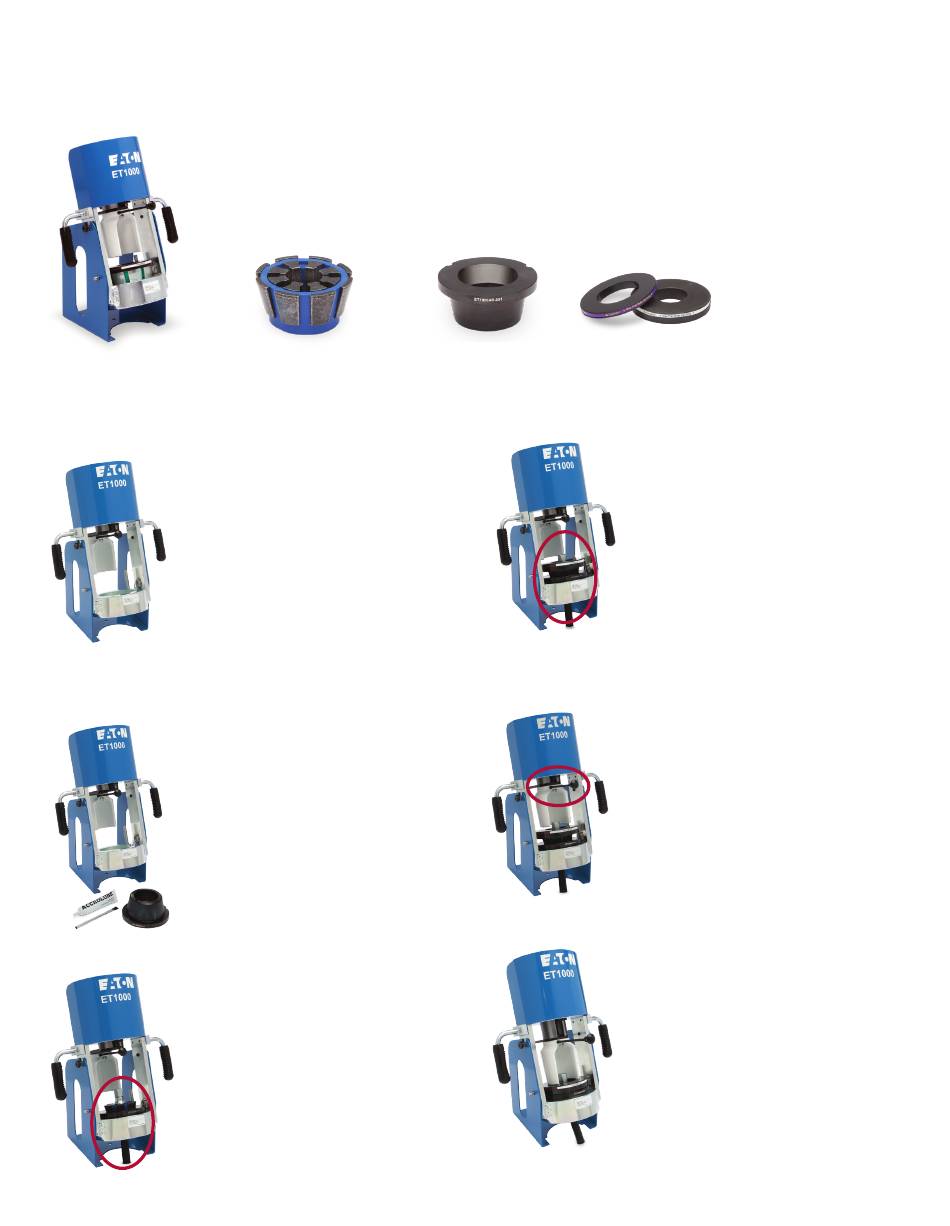

Description of components
ET1000
Crimping procedures
Step 1:
Slide the pusher to the
back position.
Using the PowerSource crimp
spec tool, select the proper collet
assembly and spacer ring.
Lubricate the inside cone of the
die ring and external surfaces of
the collet assembly with a high-
efficiency PTFE based lubricant.
Insert the collet assembly into
the base die ring.
Step 1A:
If using smaller collets, which
require an additional adapter ring,
lubricate the inside cone of the
base die ring and the outside cone
of the die ring adapter plate.
Place the die ring adapter plate
into the base die ring.
Step 2:
Insert the hose assembly
through the bottom of the base
die ring and between the two
collet assembly halves. Align
the fitting with the top of the
collet halves.
4
EATON ET1000 Crimp machine operator´s manual E-EQCR-TM001-E2 April 2021
Split Collet Assembly
Die Ring Adapter
Spacer Rings
Step 3:
Place the spacer ring in the
appropriate position on top
of the collet assembly (either
flat-side up or flat-side down as
referenced in the PowerSource
crimp spec tool).
Step 4:
Pull the pusher forward into the
detent holding position with the
pusher positioning handle
Step 5:
Begin crimping by actuating
the pump. When the spacer
ring bottoms out against the
base die ring, the crimping
is complete.
