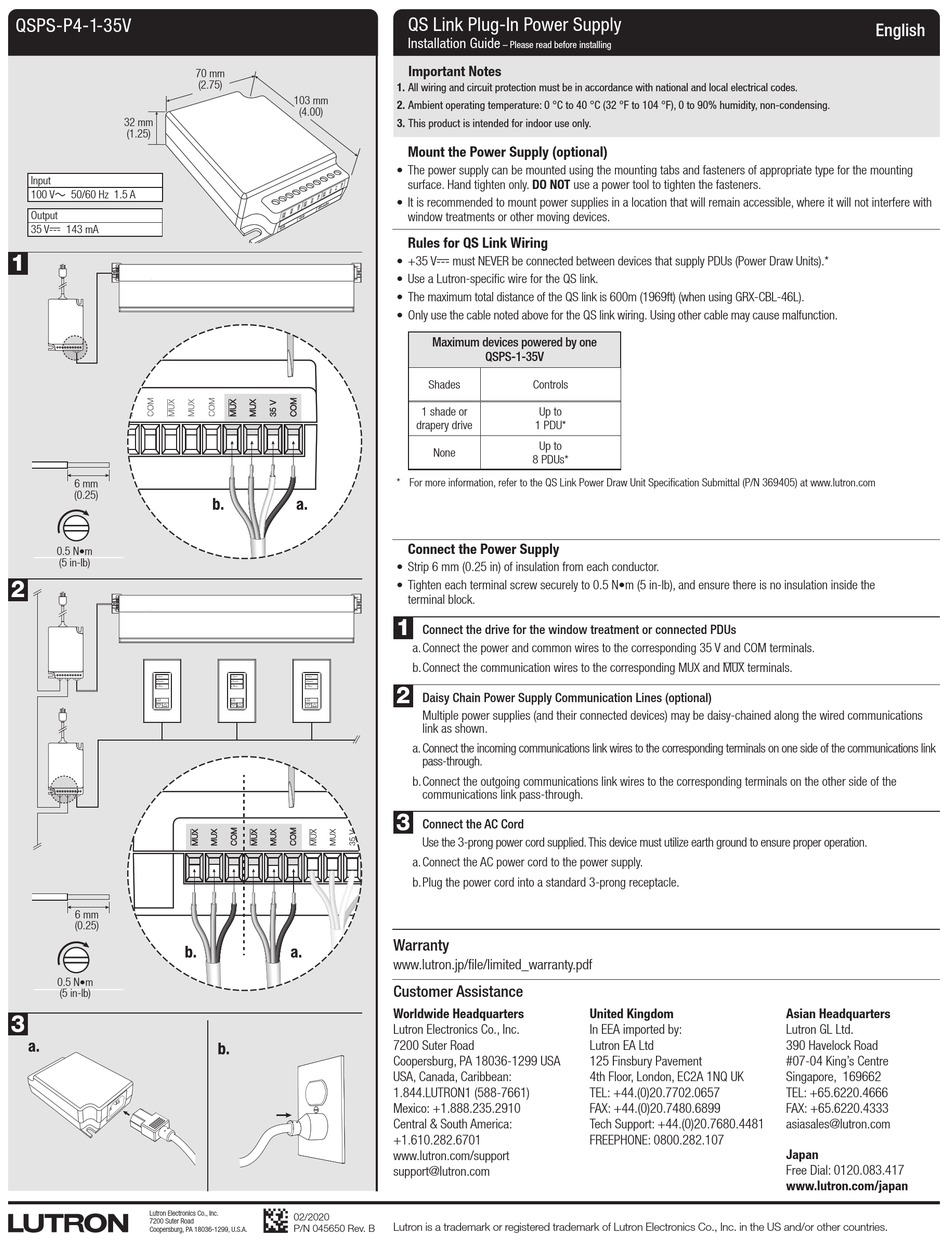

Lutron Electronics QSPS-P4-1-35V Installation Manual

QSPS-P4-1-35V
32 mm
(1.25)
Input
100 V~ 50/60 Hz 1.5 A
Output
35 V- 143 mA
1
6 mm
(0.25)
0.5 N•m
(5 in-lb)
2
6 mm
(0.25)
0.5 N•m
(5 in-lb)
3
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
70 mm
(2.75)
103 mm
(4.00)
02/2020
P/N 045650 Rev. B
QS Link Plug-In Power Supply
Installation Guide
– Please read before installing
Important Notes
1. All wiring and circuit protection must be in accordance with national and local electrical codes.
2. Ambient operating temperature: 0 °C to 40 °C (32 °F to 104 °F), 0 to 90% humidity, non-condensing.
3. This product is intended for indoor use only.
Mount the Power Supply (optional)
• The power supply can be mounted using the mounting tabs and fasteners of appropriate type for the mounting
surface. Hand tighten only. DO NOT use a power tool to tighten the fasteners.
• It is recommended to mount power supplies in a location that will remain accessible, where it will not interfere with
window treatments or other moving devices.
Rules for QS Link Wiring
• +35 V- must NEVER be connected between devices that supply PDUs (Power Draw Units).*
• Use a Lutron-specific wire for the QS link.
• The maximum total distance of the QS link is 600m (1969ft) (when using GRX-CBL-46L).
• Only use the cable noted above for the QS link wiring. Using other cable may cause malfunction.
Maximum devices powered by one
QSPS-1-35V
Shades Controls
1 shade or Up to
drapery drive 1 PDU*
Up to
None
8 PDUs*
* For more information, refer to the QS Link Power Draw Unit Specification Submittal (P/N 369405) at www.lutron.com
Connect the Power Supply
• Strip 6 mm (0.25 in) of insulation from each conductor.
• Tighten each terminal screw securely to 0.5 N•m (5 in-lb), and ensure there is no insulation inside the
terminal block.
1
Connect the drive for the window treatment or connected PDUs
a. Connect the power and common wires to the corresponding 35 V and COM terminals.
b. Connect the communication wires to the corresponding MUX and MUX terminals.
2
Daisy Chain Power Supply Communication Lines (optional)
Multiple power supplies (and their connected devices) may be daisy-chained along the wired communications
link as shown.
a. Connect the incoming communications link wires to the corresponding terminals on one side of the communications link
pass-through.
b. Connect the outgoing communications link wires to the corresponding terminals on the other side of the
communications link pass-through.
3
Connect the AC Cord
Use the 3-prong power cord supplied. This device must utilize earth ground to ensure proper operation.
a. Connect the AC power cord to the power supply.
b. Plug the power cord into a standard 3-prong receptacle.
