Lutron Electronics T120-15DC-9-BL Installation Instructions

Installation Instructions
Please Read Before Installing
Overview
The integral power supply of the HomeWorks
Processor can power up to 350 LEDs. The power supply
included with the HomeWorks 4 Series
power up to 150 LEDs. To power additional LEDs within a
HomeWorks System, an auxiliary 15 V
PELV rated power supply is required.
The T120-15DC-9-BL (120 V), TE240-15DC-9-BL (240 V,
Europe), and TU240-15DC-9-BL (240 V, U.K.) are plugged
into a standard receptacle and can each power an
additional 150 LEDs.
HomeWorks RF seeTouch
TM
Slim-button Keypads) can also be powered using an
auxiliary power supply. Each RF seeTouch keypad counts
as 20 LEDs toward the 150 LED limit.
Each Hybrid Repeater counts as 15 LEDs toward the 150
LED limit.
Panel-mounted power supplies that can each power higher
LED counts are available. Installation instructions and tech-
nical specifications for these power supplies and keypad
LED counts are available on the HomeWorks resource web-
site and in the HomeWorks Technical Reference Guide
(P/N 366-963 (120 V) and P/N 360-923 (220-240 V)).
Installation
1. Cut barrel plug off end of power supply wires.
2. Peel wires apart.
3. Strip insulation 1/2 in. (13 mm).
4. Wire power supply.
Wired Keypads/Hybrid Repeaters: Connect the black
power supply wire to common. Connect the black/white
wire to +15 V wire going to the additional
keypads/repeaters only. DO NOT connect the
black/white wire to the processor's +15 V (pin 2) or to any
other power supply. See Wiring Diagrams - Wired
Keypads/Hybrid Repeaters at right.
RF seeTouch Keypads: Connect the black power supply
wire to the keypads' black wire. Connect the black/white
power supply wire to the keypads' white wire. DO NOT
connect the wires to any other power supply. See Wiring
Diagram - RF seeTouch Keypads (page 2).
5. Plug power supply into a standard receptacle to apply
power.
8 Series
® TM
P5 Processor can
TM
, NEC Class 2/IEC
keypads (but not RF
Auxiliary Plug-In Power Supply
T120-15DC-9-BL 120 V
TU240-15DC-9-BL (U.K.) 220-240 V
TE240-15DC-9-BL (Europe) 220-240 V
Auxiliary Plug-In Power Supply
U.S.A.:
P5
T120-15DC-9-BL

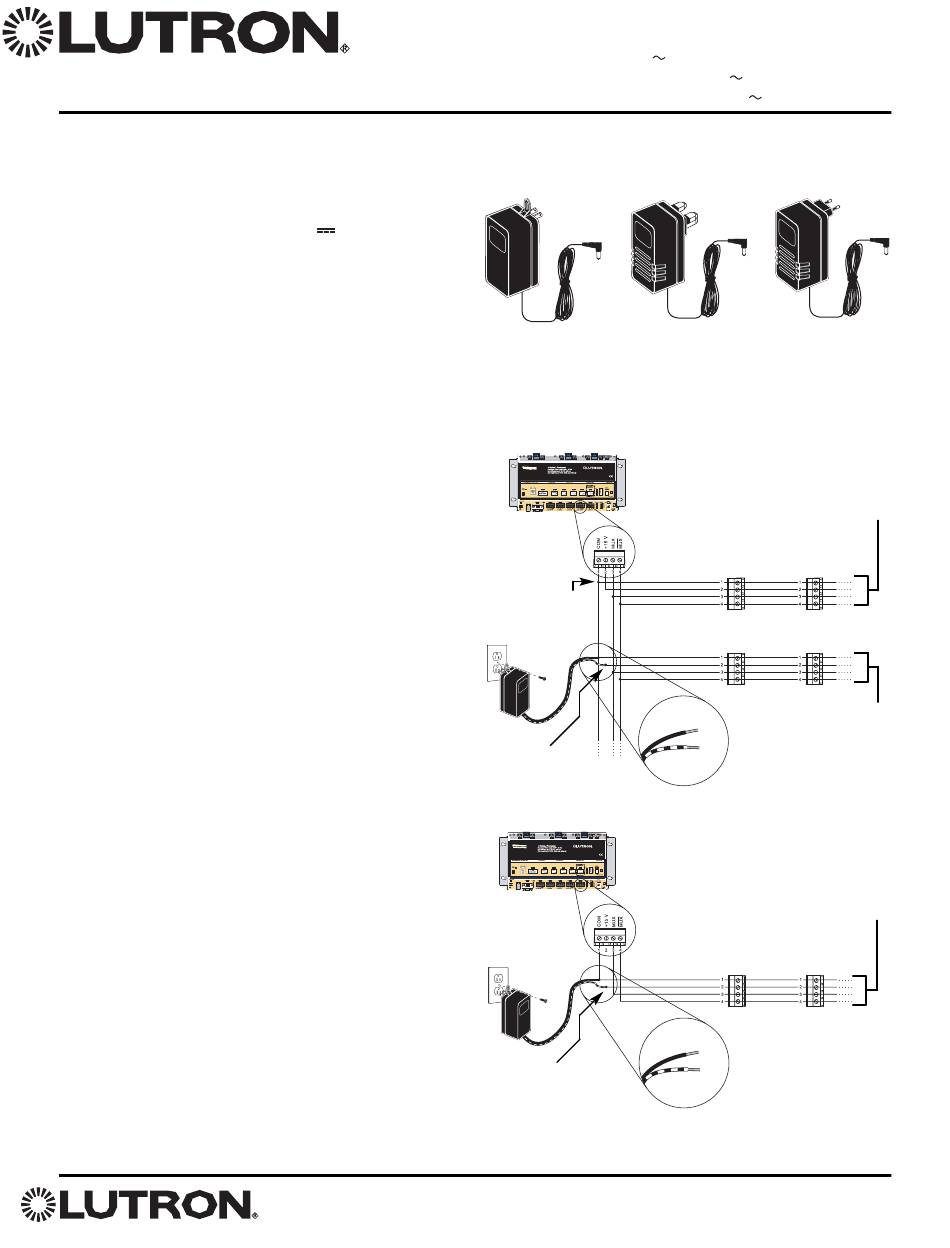

Wiring Diagrams - Wired
Keypads/Hybrid Repeaters
Wired Keypads
Connect the commons:
terminal 1 and black wire
on auxiliary power
supply.
DO NOT connect
To additional
+15 V (terminal 2)
auxiliary power
to the processor.
supplies
Hybrid Repeaters
HomeWorks Processor
(4 Series processor shown)
DO NOT connect
+15 V (terminal 2)
to the processor.
50/60 Hz 900 mA
50/60 Hz 900 mA
50/60 Hz 900 mA
U.K.: Europe:
TU240-15DC-9-BL TE240-15DC-9-BL
HomeWorks Processor
(4 Series processor shown)
To additional keypads
150 LEDs maximum
Keypad Link
Keypad 1 Keypad 2
Terminal Terminal
Block Block
Keypad 20 Keypad 21
Terminal Terminal
Block Block
To additional keypads
150 LEDs maximum
Black wire is Common
Black/white wire
is +15 V
Hybrid Repeater Link
To additional Hybrid Repeaters
(Link 8)
(maximum 5 repeaters total)
Hybrid
Repeater 1
Terminal
Block
Black wire is Common
Black/white wire
is +15 V
Hybrid
Repeater 2
Terminal
Block
1
