QS Smart Power
Supply Panel
Installation
Instructions
QSPS-P1-10-60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QSPS-P1-10-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics QSPS-P1-10-60

Summary of Contents for Lutron Electronics QSPS-P1-10-60

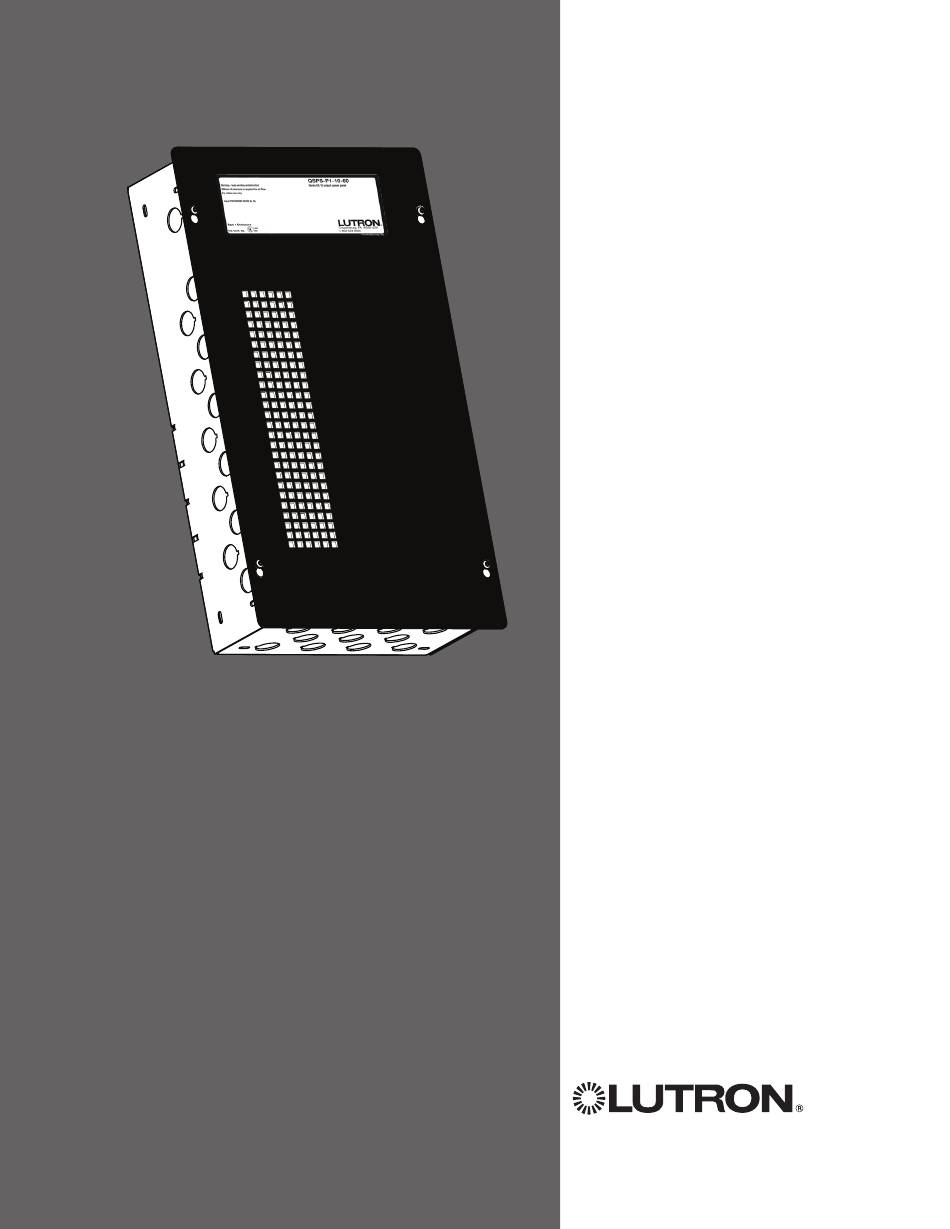

  • Page 1 QS Smart Power Supply Panel Installation Instructions QSPS-P1-10-60...

  • Page 2: Important Notes

    3. QSPS-P1-10-60 must be installed by a qualified electrician. 4. Ambient operating temperature: 32 - 104 °F (0 - 40 °C), 0 - 90% humidity, non-condensing.

  • Page 3: Installation

    Do not mount in any other orientation. a. Surface Mount - Use the keyholes located on the back of the enclosure to fasten the QSPS-P1-10-60 to the wall. Use fasteners rated for a 50 lb. (23 kg) load. See illustration of QSPS-P1-10-60 .
  • Page 4 Installation (continued) FUSE 5X20 FUSE 5X20 QSPS-P1-10-60 Parts identification 120 V~ input terminal blocks Spare fuses 5x20 mm FUSE 5X20 FUSE 5X20 2.5 A FUSE 5X20 FUSE 5X20 FUSE 5X20 FUSE 5X20 5X20 FUSE 4-pin connector power and communication LINK...
  • Page 5 75 ft (20 m) 50 ft (15 m) each 2 Sivoia QS roller 100, ≤ 50 sq ft (4.6 sq m) None 200 ft (60 m) 75 ft (20 m) 50 ft (15 m) each Page 4 Sivoia QSPS-P1-10-60 Installation instructions ®...
  • Page 6 Open Preset Close Open Meeting Preset Videoconf Afternoon Close A/V Night LUTRON GRAFIK Eye Up to 250 ft (75 m) of ® seeTouch ® #18 AWG (1 mm 4-conductor twisted/ shielded wire Page 5 Sivoia QSPS-P1-10-60 Installation instructions ®...
  • Page 7 Open Preset Close Open Meeting Preset Videoconf Afternoon Close A/V Night LUTRON GRAFIK Eye Up to 250 ft (75 m) of ® seeTouch ® #18 AWG (1 mm 4-conductor twisted/ shielded wire Page 6 Sivoia QSPS-P1-10-60 Installation instructions ®...
  • Page 8 Wiring the QSPS-P1-10-60 Run low voltage wire into the QSPS-P1-60 Remove as many knockout Input power from distribution panel tabs as necessary from the left side of the enclosure and insert strain reliefs. Hot (Live) Neutral Run the low-voltage Earth Ground...
  • Page 9 Wiring the QSPS-P1-10-60 (continued) Connecting Multiple QSPS-P1-10-60 Panels Use the two 3-pin terminal blocks when connecting multiple QSPS-P1-10-60 panels. From additional QSPS-P1-10-60 To additional panels QSPS-P1-10-60 panels Device Link 4 - conductor power and communications to devices. Max 2,000 ft. (600 m) per...
  • Page 10 Diagnostics The QSPS-P1-10-60 provides built-in diagnostics to help troubleshoot and verify your installation. Output status LEDs Each output has a status LED to indicate if the output is properly powered. If an output becomes overloaded, its status LED will blink to indicate the fault condition.
  • Page 11 Diagnostics (continued) Communications Link LEDs The QSPS-P1-10-60 has four diagnostic LEDs for the communications link. Diagnostic LEDs Reserved for future use Reserved for future use Link Traffic This LED will blink green to indicate that devices are communicating. Status LED This LED indicates that the panel is operating properly.

  • Page 12: Verify Communications

    Verify Communications To verify the communications of your system, tap, hold (5 seconds), tap, hold (5 seconds) the All Shades Open button. The QSPS-P1-10-60 is now trying to communicate with all other devices. All EDUs communicating on the link will wiggle and flash their green LED quickly.

  • Page 13: Limited Warranty

    4. The cost of repairing or replacing other prop- erty that is damaged when any System does not more than 8 not work properly, even if the damage was More than 8 caused by the System. Page 12 Sivoia QSPS-P1-10-60 Installation instructions ®...
  • Page 14 TION WITH ANY PROVISION OF THIS WAR- registered trademarks, and Sivoia QS is a RANTY, EVEN IN THE EVENT OF THE FAULT, trademark of Lutron Electronics Co., Inc. TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY, BREACH OF CONTRACT OR BREACH OF WARRANTY OF LUTRON OR...

  • Page 15: Technical Assistance

    Lutron GL Ltd. 90 rue Villiers email: shadinginfo@lutron.com 15 Hoe Chiang Road 92300 Levallois Perret, #07-03 Tower Fifteen France ©2010 LUTRON Electronics Co., Inc. Singapore 089316 Tel: +33-1-41-05-42-80 Tel: +65-6220-4666 Fax: +33-1-41-05-01-80 Printed in the U.S.A. Fax: +65-6220-4333 FREEPHONE: 0800.90.12.18 P/N 045-310 REV A lutronsea@lutron.com...
