Gruetzner G-LUBE 60 User Manual

3. Mounting

High backpressure can cause
a delay in
backpressure shall not exceed 5
bar (73 psi).
If the product is installed at a 45°
or 90° angle, please use an angle
adapter greater than or equal to
1/4" (diameter 6-8 mm).
Use a 6 mm (inner diameter)
tube for remote installations.
Keep the maximum distance at
0.5 m (1.5 feet).

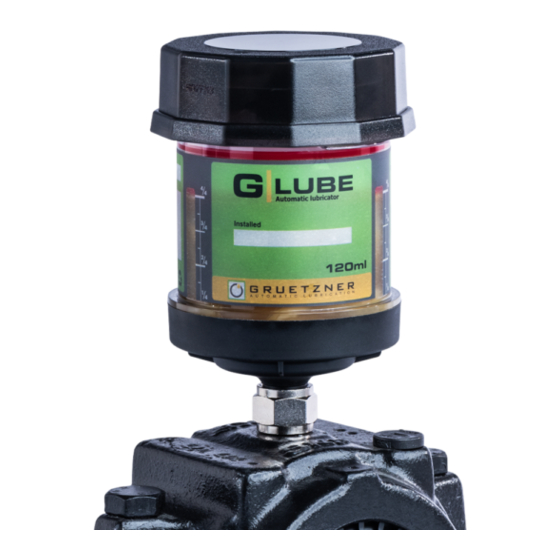

The device is designed for single
point lubrication only. Direct
mounting is always preferred.
If the application
allow direct mounting, remotely
assemble the unit using appro-
priate accessories and keep the
distance from the lube point as
short as possible.
For remote installations use a 6 mm (inner diameter) tube pre-filled
with the same or compatible grease as the grease contained in the unit.

4. Important information

• Minimize tube resistances. Narrow passages and right angles
should be avoided.
• The device can be re-adjusted or switched off during operation.
• During operation of the device a visual inspection of the device
as well as of the lubrication point must be carried out regularly.
• The device may only be used to supply a single lubrication point.
No branches may be made. Once the lubricator is installed and
activated it must not be removed and mounted onto another
lubrication point.
• Product warranty is limited to original defects in material and
workmanship and does not cover any collateral damage due to
mishandling, abuse and/or any other inappropriate use of the
device.
• The maximum storage temperature should not exceed +40 °C
(+104 °F). Higher temperatures decrease the battery's lifespan.
The lubricator has to be activated within two years from receiving.

5. Dispensing volume chart

dispensing. The
The output volume may vary due to unsettled outside influences such as
ambient temperature, atmospheric pressure, consistency of lubricant or
tube lengths.
Dispensing period
1 month
3 months
6 months
9 months
12 months
does not

6. Product certifications

EN Standards:
EN 60079-0 : 2012/A11:2013; EN 60079-11 : 2012
Revision: 2 / 11.03.2021
5
Dispensing volume/day
60 ml 120 ml 240 ml
2.00 ml 4.00 ml 8.00 ml
0.67 ml 1.33 ml 2.66 ml
0.33 ml 0.67 ml 1.33 ml
0.22 ml 0.44 ml 0.89 ml
0.17 ml 0.33 ml 0.67 ml
ll 1 G Ex ia llC T4 Ga
INERIS 12ATEX0062X
-20°C ≤ Ta ≤ +55°C
Gruetzner GmbH
Dagobertstr. 15 • 90431 Nuremberg, GER
info@G-LUBE.com • www.G-LUBE.com
User manual
G-LUBE 60, 120, 240
6
