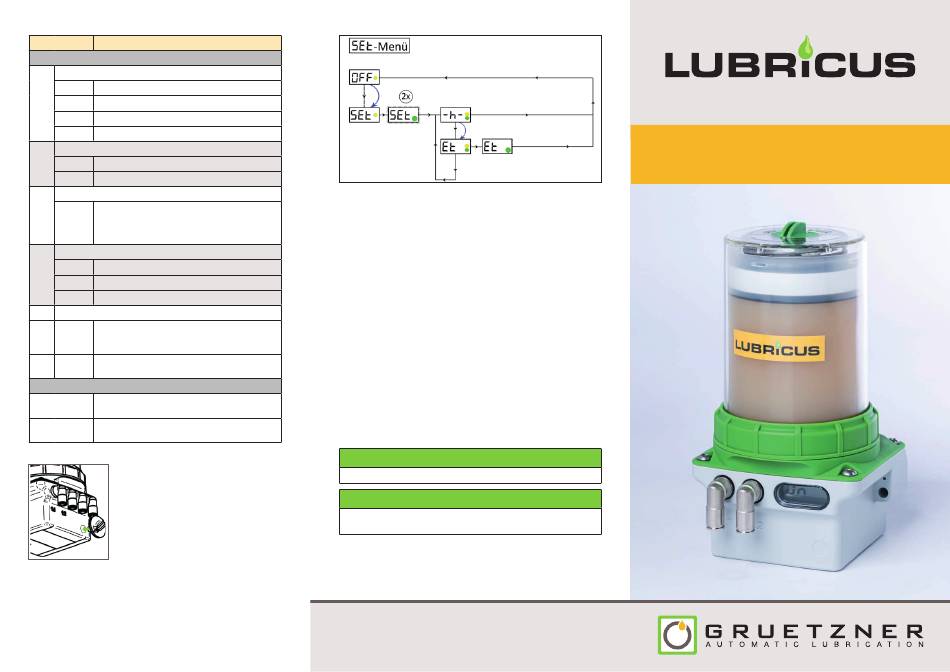

Gruetzner LUBRICUS LUB-B Quick Start Manual

Display in LCD Meaning
Submenus
INF INF menu
n01 Firmware version of LUB-B
h03 Currently set value of dispensing time h
c01 Currently set value of number of strokes c
6 Currently set value of emptying time Et
SET SET menu
-h- Operating mode: hour mode
Et Operating mode: empty time mode
RUN RUN menu
01...70 During the manually triggered active RUN command
(„quick check"/extra dispense), the LCD displays the
approximate back pressure in bar. In addition, the
green LED lights up.
PRO PRO menu
h1...240 Adjustable setting of dispensing time h
c1...30 Adjustbale setting of number of strokes c
01...36 Adjustabe setting of emptying time Et
FIL FIL menu
01...70 During the manually triggered active FIL command,
the LCD displays the approximate back pressure in bar.
In addition, the green LED lights up.
Clr If the process is aborted during the FIL command, Clr
appears at first.
Additional characters on the LCD
1 / 2 During a dispensing process LUB-B indicates from
which outlet lubricant is being pumped.
MAX After each cycle the maximum back pressure is
displayed in bar.
5.3 Actions with the activation and programming key
1. Turn the activation and programming key
to the OPEN position and remove it from
the housing of LUB-B.
2. Place the key on the action area on the
front of LUB-B.
3. Remove the key from the action area
as long as the desired menu item is
displayed in the LCD.
5.4 SET menu
The SET menu allows you to change the operating mode of LUB-B. You
can switch between hour mode -h- and empty time mode -Et-.
-h- Operating mode: hour mode -h-
Et Operating mode: empty time mode Et
If you would like to change the operating mode, move the activation and
programming key back to the action area.
When your desired operating mode is displayed on the LCD, remove the
activation and programming key from the action area.
5.5 PRO menu
Being in operating mode hour mode -h-, you can change the dispensing
time h as well as the number of cycles c (number of strokes).
Being in PRO menu the first step is to set the dispensing time h and
afterwards the number of cycles c; direct access to the number of cycles
c is not possible.
Being in empty time mode Et, you can change the emptying time Et in
months.
5.6 FIL menu
This function enables you to prefill connected accessories (tubes, distri-
butors,...) with the lubricant contained in the lubricant cartridge, especially
during the initial start-up of LUB-B. However, the process can also be
aborted manually at any time.
6. Maintenance
NOTICE
It is not possible to refill empty or opened lubricant cartridges.
NOTICE
The battery of LUB-B must be replaced at the same time as the
lubricant cartridge.
