Franke SEMI PRO Installation Manual page 8

EN
10. Connect the Stainless Steel Faucet
Supply Hose (9) to the largest fitting on
the Diverter (10) (fig. 3D).
11. Connect the Gray Nylon Spray Supply
Hose (7) to the smallest fitting on the
Diverter (10) (fig. 3D).

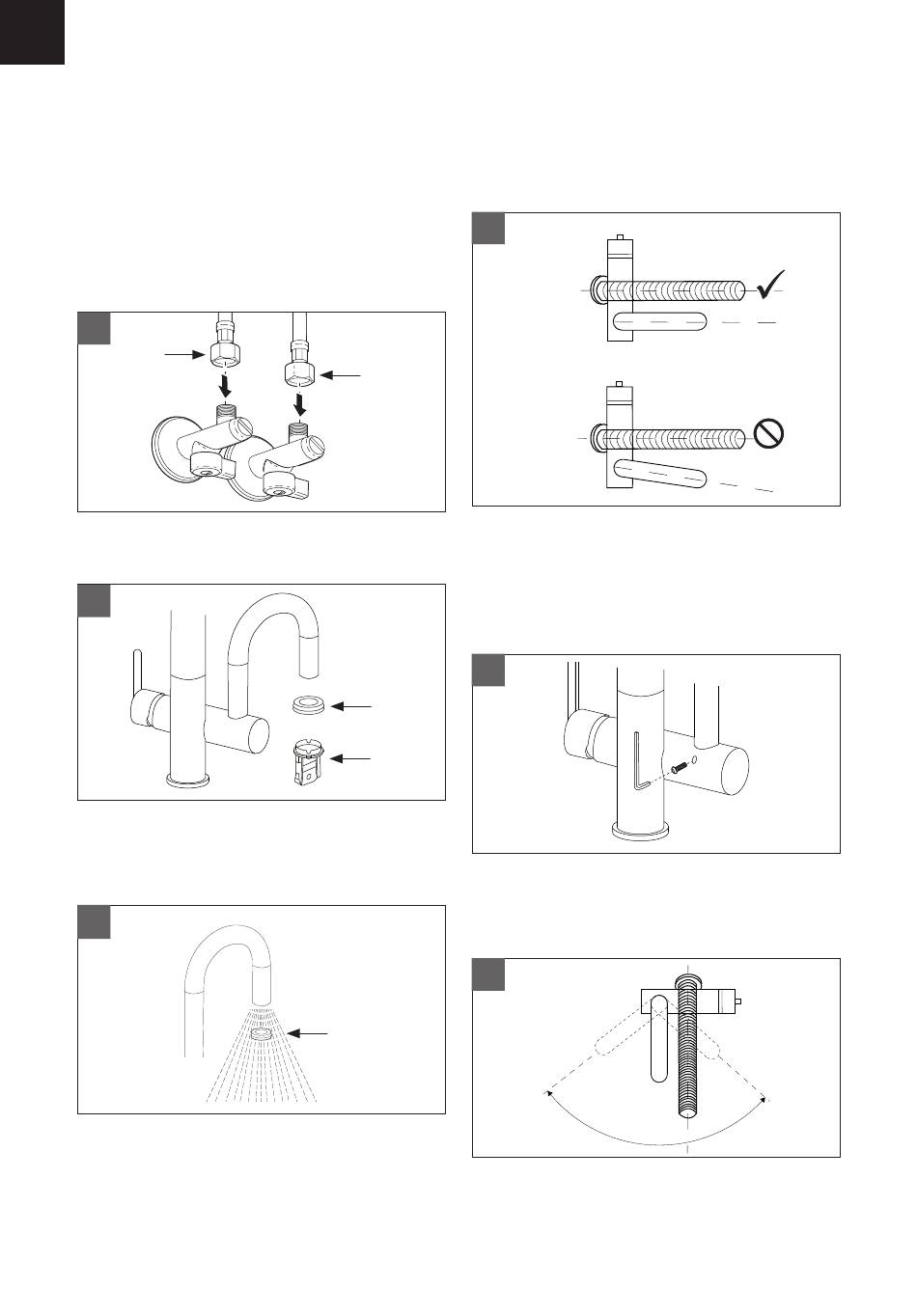

12. Connect the Flexible Supply Hoses
(11) to the water supply in the home
(fig. 3E).
3E
11
13. Remove Spout Aerator (14) using the
Spout Aerator Key (15) (fig. 3F).
3F
14. Turn on water, flush the faucet and
Aerator (14) to remove any debris and
check for leaks (fig. 3G).
3G
15. Reinstall the Aerator (14) and ensure
everything is functioning properly.
ATTENTION: For FFPD5400 Series
8. NOTE: Secondary spout is NOT
secured to allow for better transportation.
Align the secondary spout parallel to the
main spout as shown in image 4A.
4A
11
Take the set screw attached to the
warning card and insert it into the back
of the body under the spout, and tighten
it with the hex key also attached to the
warning card (fig. 4B).
4B
14
15
The secondary spout rotation is
approximately 100 degrees to prevent it
from hitting the main spout (fig. 4C).
4C
14
9. Connect the Drinking Water Fitting (10)
to the Drinking Water Supply Hose (11)
with a 17 mm wrench.
– 8 –
100°
