INSTALLATION INSTRUCTIONS

1. Remove all contents from the package
and check for completeness.
2. Turn off water supply.
3. Cut a mounting hole 1 3/8" diameter
(35 mm) in the desired mounting surface
(if one isn't available).

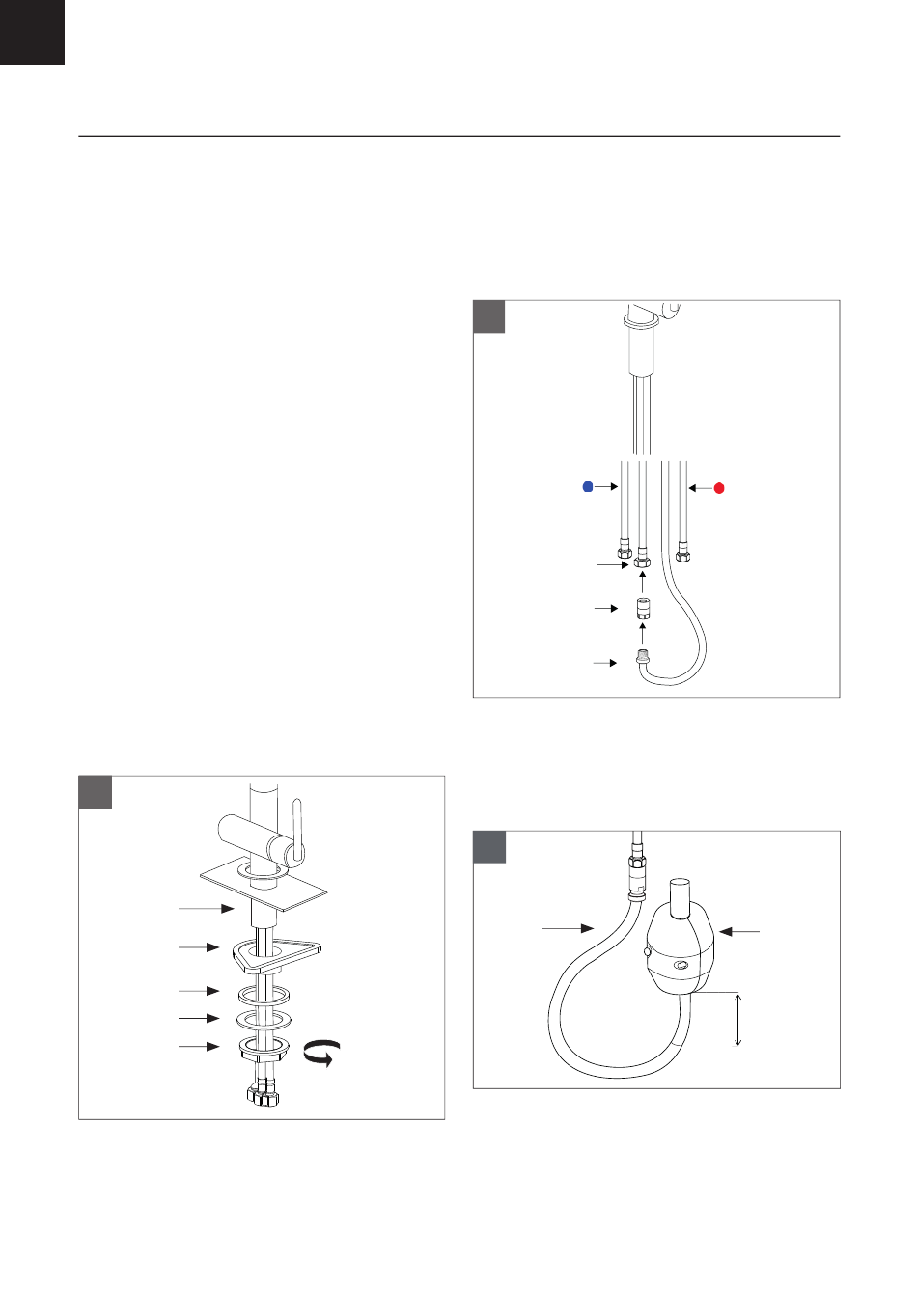

4. Insert the faucet into the hole, hoses
fi rst (fi g. 2A).
ATTENTION: O-ring should come
pre-assembled in the base of the
faucet escutcheon sitting between the
countertop and the faucet base.
DO NOT use putty or other sealant at
this location.
NOTES: Solid surface installation:
The countertop mounting surface needs
to be fl at and free of debris; otherwise the
faucet may not sit properly and could leak.
5. Install the mounting hardware to the
mounting shank of the Faucet Base (1)
underneath the mounting surface in the
following order: Plastic Flange (3), Rubber
Washer (4) and Fixing Plate (5) (fi g. 2A).
2A
1
3
4
5
6
6. Secure the faucet by tightening the
Fixing Nut (6) onto the mounting shank
of the Faucet Base (1) (fi g. 2A).
ATTENTION: For FF5300 Series
7. Connect Spray Supply Hose (7) to
Check Valve Holder (8) and Spray
Hose (9) (fi g. 2B).
2B
7
8
9
8. Attach the Weight (10) to the Spray
Hose (9) approximately 2" above the
bend in the bottom of the Spray Hose
(fi g. 2C).
2C
9
– 6 –
10
2"
