Druckgröße 100 % verwenden 280 x 160mm
/ use print size 100% 280 x 160mm
Schlüsselrosetten optional
erhältlich
Key rosettes optionally
available

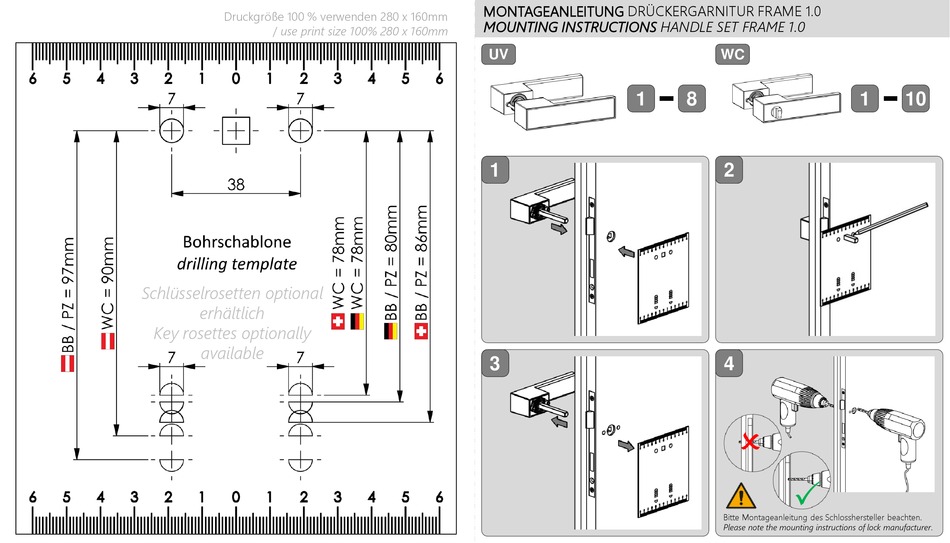

MONTAGEANLEITUNG DRÜCKERGARNITUR FRAME 1.0
MOUNTING INSTRUCTIONS HANDLE SET FRAME 1.0
UV
1
1
3
WC
8
1
2
4
O
P
Bitte Montageanleitung des Schlosshersteller beachten.
Please note the mounting instructions of lock manufacturer.
10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Griffwerk FRAME 1.0
Summary of Contents for Griffwerk FRAME 1.0
- Page 1 MONTAGEANLEITUNG DRÜCKERGARNITUR FRAME 1.0 Druckgröße 100 % verwenden 280 x 160mm MOUNTING INSTRUCTIONS HANDLE SET FRAME 1.0 / use print size 100% 280 x 160mm Schlüsselrosetten optional erhältlich Key rosettes optionally available Bitte Montageanleitung des Schlosshersteller beachten. Please note the mounting instructions of lock manufacturer.
- Page 2 Demontage Einleger Montage Einleger 5 Nm 5 Nm 3 mm Bei neuer Montage neue Madenschraube verwenden Griffeinleger entsprechend Einleger-dicke wählen/ please use new grub screw for new mounting. Select the insert according to the inlay thickness. 9 WC 10 WC Griffeinleger für 0,8mm starke Einleger Griffeinleger für 3,0mm starke Einleger Insert for Inlays with 0,8mm thickness...
