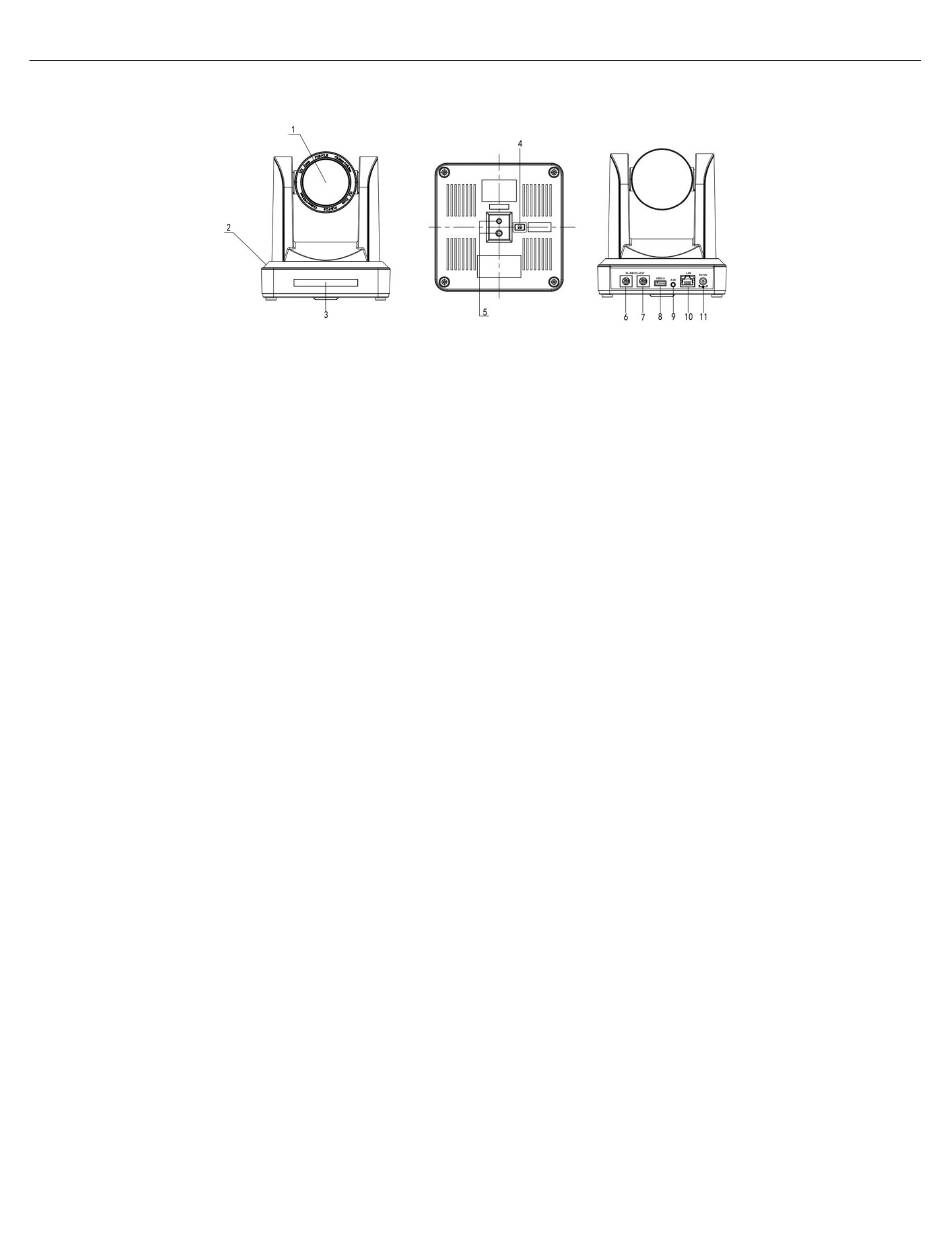

1. Fast Installation

1. Camera Lens
2. Camera Base
3. Remote Controller Receiver Light
4. Bottom Dial Switch
5. Tripod Screw Hole
1.2. Power on Initial Configuration
1) Power on: Connect DC12V power supply.
2) Initial configuration: The camera will enter a self diagnostic mode upon power up, as indicated by a flashing light.
The camera head will return to the HOME position (forward facing, level horizontally). The light will turn solid when
the self diagnostic is complete.
NOTE: If the LessonCam app is running and if you set preset 0, when Power on self-test is completed, the camera
will automatically move to the preset 0 position.

1.3 Video Output

This model features video output from both LAN and USB2.0.
1) Video Output from LAN
a. Network Cable Connection Port: See Number 10 in Figure 1.
b. To log in from the Internet, open your browser and enter "192.168.5.163" in the address bar (factory default).
From the login page, click on the "player is not installed, please download and install" and follow the steps for
installation.
Next, enter "admin" for both the user name and password (factory default), which brings you to the preview
page. From here, users can carry out PTZ control, video recording, playback, configuration, and other operations.
2) USB2.0 video output
a. See Number 8 in Figure 1.
b. Connect the camera and the monitor via USB2.0 video cable, open the video display software, select the image
device, and the video output will be available.
Figure 1
6. RS232 Control Interface (input)
7. RS232 Control Interface (output)
8. USB2.0 Interface
9. Audio Input Interface
10. 10/100M Network Interface
11. DC12V Input Power Supply Socket
