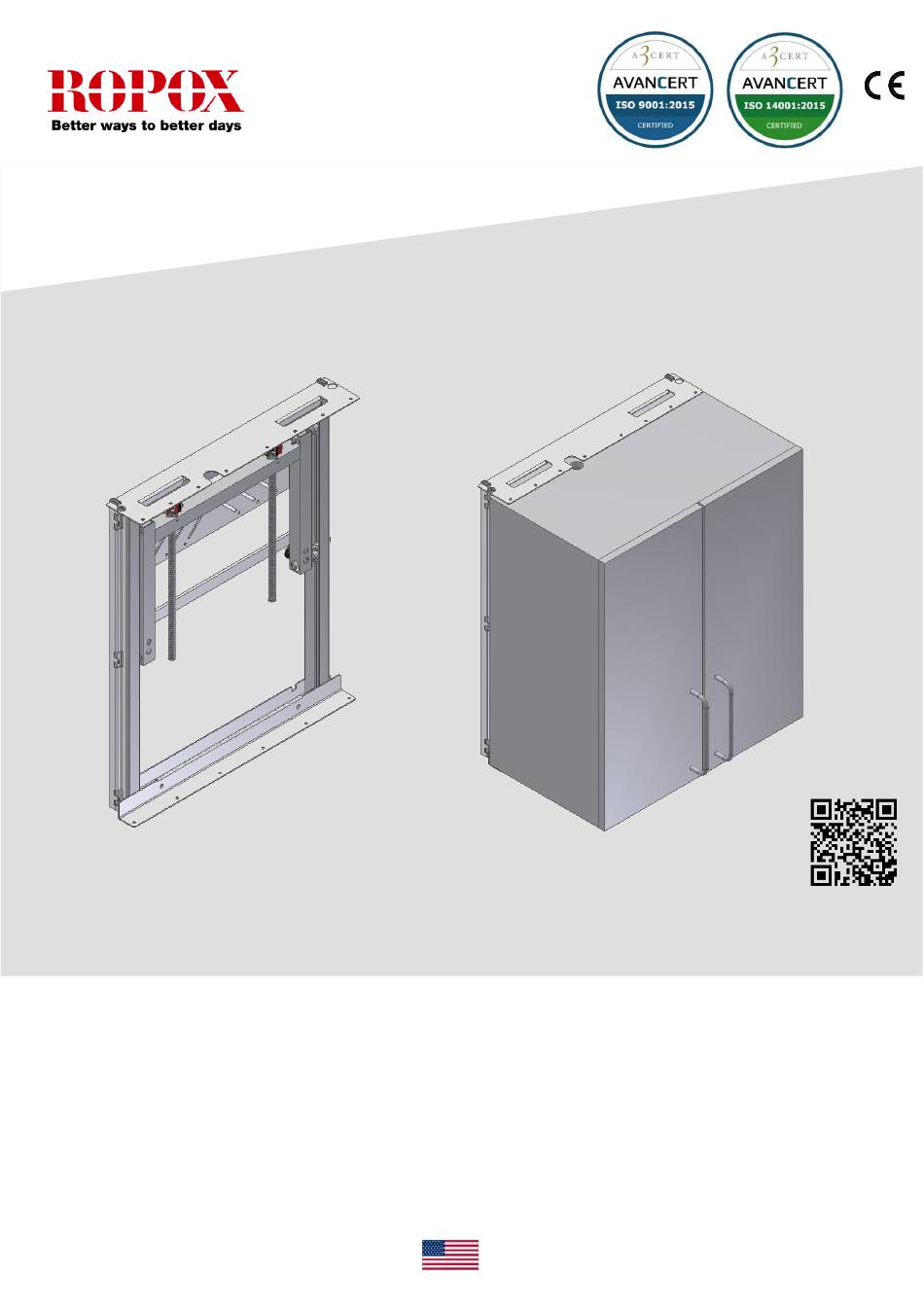

- Page 1 QR code to mounting video Ropox VertiElectric User manual Mounting instruction Keep this folder with product at all times! PDF 6167 / Rev 002...
-
Page 2: Table Of Contents
6.9 Connection of cables ..........................19 MOUNTING INSTRUCTIONS FOR 2 UNITS ..................... 20 PERFORMANCE TEST ..........................23 LIST OF COMPONENTS FOR VERTIELECTRIC ................... 24 10. OPTIONS FOR VERTIELECTRIC ......................25 12. SAFETY IN USE .............................. 26 13. CLEANING AND MAINTENANCE......................27 13.1... -
Page 3: Introduction
Application VertiElectric is designed to obtain optimum working height for the user. VertiElectric has been designed for height adjustment of wall units. VertiElectric must NOT be used as a lifting table or person lifter. The product must be used indoor, under normal room temperatures and humidity as stated in section 4. -
Page 4: Technical Data
- Approx. 9 sec for a complete stroke Temperature: 5-45° C / 41-113° F Air humidity: 5-85% (non-condensing) Complaints: See Complaints, page 32 Producer: Ropox A/S, DK-4700 Naestved, Tlf.: +45 55 75 05 00 E-mail: info@ropox.dk - www.ropox.com © ROPOX 2016 Page 4... -
Page 5: Schematic Diagram Of Frame
9.1 in 5.9in 2.6 in 14.5 in VertiElectric VertiElectric VertiElectric Cabinet Cabinet Cabinet 400 - 500 mm 600 - 1200 mm 1300-1800 mm 51.18 – 70.87 in 15.75 - 19.69 in 23.62 - 47.24 in ///////////////// © ROPOX 2016 Page 5... -
Page 6: Wall Unit Sizes
The fitter should always consider the material, condition and strength of the wall and use screws and rawlplugs suitable for the specific wall type. 5.1.2 Wall unit sizes 330 mm/13in Obs! – If Safety stop plate is not being used, wall units with less depth can be used! © ROPOX 2016 Page 6... -
Page 7: Wiring To Control Switch
We recommend a build-in pipe in wall where the cable can be pulled through (ø3cm/1.2in). If a high wall unit is placed right next to a VertiElectric, it is an advantage to pull the cable for the control trough wall unit then a pipe in wall can be avoided. - Page 8 Cabinet width 130-180 cm / 51.18 – 70.87 in (30-40613 to 30-40618) electric installation © ROPOX 2016 Page 8...
-
Page 9: Mounting Instructions
5 for correct marking! Drill hole and insert raw plug. ////////////// ////////////// 6.1.3 Level mounting plate in correct 6.1.4 Secure mounting plate with remaining height whereupon marking for screws which are necessary. remaining screws is carried out. © ROPOX 2016 Page 9... -
Page 10: Reinforcement Of Wall Units
6.3.1 Place wall unit on the floor with the gear box, be careful not to damage backside turned upwards, position any parts of VertiElectric. VertiElectric on top of the wall unit in the centre. 3 x ø12mm / 0.5in 1 x ø30mm / 1.2in Marking 6.3.3 Mark one hole in the top of wall unit. - Page 11 Mounting of Verti unit 6.4.1 Lift VertiElectric onto mounting plate and 6.4.2 Once more lift VertiElectric onto adjust that it is placed in the centre of mounting plate, place and adjust in the wall unit, Mark additional 2 mounting centre of wall unit. Secure the frame holes.
-
Page 12: Mounting Of Wall Units
6.6.1 Motor, with spindle, is mounted through back plate and into gearbox 6.6.2 Safely turn the shaft for correct mounting of motor. Tighten the two screws. The eye on the yellow/green earth wire should be mounted on one of the screws. © ROPOX 2016 Page 12... - Page 13 6.6.4 Plug cables to motor. For order of connection look on page 18, point 8 (start-up procedure). The cables are secured by 6.6.5 6.6.6 The power cable from control box is secured mounting on safety plate. by mounting of safety plate. © ROPOX 2016 Page 13...
-
Page 14: Mounting Of Safetystop
Mounting of safetystop Placement possibilities 1: The safetystop is mounted flush with the front of the cabinet Cabinet: 330mm / 13in Safetystop: Door: 370mm / 14.57in 16-20mm 5/8-25/32 in From wall to safetystop 380mm / 14.96in © ROPOX 2016 Page 14... - Page 15 2: The safetystop is mounted flush with the front of the cabinet door Cabinet: 330mm / 13in Safetystop: 25/32 – 1 in 370mm / 14.57in Door: From wall to safetystop 16-20mm 380mm / 14.96in 5/8-25/32 in © ROPOX 2016 Page 15...
- Page 16 6.7.1 Place the safetystop in center, under the cabinet. The safetystop can be mounted flush with cabinet or cabinet door. Hold the safetystop in place with a clamp. 6.7.2 Screw the safetystop to cabinet with included wood screws. © ROPOX 2016 Page 16...
-
Page 17: Placing Of Cables For Safety Stop
The cable is placed long the left side of the cabinet Placement of extension and connected to the cable to Safety stop wire from the safety stop frame. Remove yellow 2,2kΩ resistor from the cord marked S2 © ROPOX 2016 Page 17... - Page 18 Connect extension cable to the cord marked S2. 6.8.2 Secure other end of cable for safety stop with strip in the right side. Note that a “yellow” short-circuit plug has to be mounted. Placement of Plug w/resistor (Yellow) © ROPOX 2016 Page 18...
-
Page 19: Connection Of Cables
6.9.2 Mounting of cable support for net cable to safety covers as shown. the wall. Secure 110V cable to top of the cabinet and cable support on wall. © ROPOX 2016 Page 19... -
Page 20: Mounting Instructions For 2 Units
Mounting instructions for 2 units The 2 units should be mounted on the following bottom rail. The mounted unit should be mounted on the wall as described on page 11 © ROPOX 2016 Page 20... - Page 21 In addition to the cables, which are mounted on page 10, then connect the second motor cable in M2 on the control The new motor cable, should be drawn from the control box to the motor 2 © ROPOX 2016 Page 21...
- Page 22 14-17 Contact with yellow The two safety stop must resistor placed on the right be connected in the middle side of the safety stop. The cable connected to the safety stop on the left side © ROPOX 2016 Page 22...
-
Page 23: Performance Test
If a smart box has been mounted – (is used if a FlexiElectric has been mounted below this unit) follow additional instructions for smart box. If all test are ok, the frame is ready for use. See section “Safety in use”. © ROPOX 2016 Page 23... -
Page 24: List Of Components For Vertielectric
1 pc. Bottom profile: 30-40040 Bottom profile width 40cm/15.75in 1 pc. 30-40050 Bottom profile width 50cm/19.69in 1 pc. Motor for VertiElectric incl. fitting 30-40675: 1 pc. The motor comprises: 96000573 Cable for motor 1 pc.. 10098-453 Fitting for motor 1 pc. -
Page 25: Options For Vertielectric
1 pc. Steel plate with mounting parts and plate. Smartbox 30-69002: 1 pc. Option for safety stop plate To be ordered if VertiElectric is mounted above a FlexiElectric Extension cord 30-67870: 1 pc. 98in 250cm/ (black) for safety stop Spiral extension 30-67871: 1 pc. -
Page 26: Safety In Use
➢ VertiElectric is a wall unit and must not be used as lifting equipment or person lifter. ➢ Always use the frame so there is no risk of damage to people or property. The person, who operates the frame, is responsible for avoiding damage or injury. -
Page 27: Cleaning And Maintenance
Check that all cables have been fitted correctly and are undamaged.. After each inspection the service schedule shall be filled in. Only use Ropox original spare parts as replacement parts. If other parts are used, the guarantee may become void ©... -
Page 28: Service Schedule, Operation And Maintenance
If none of the above has helped reset the unit: − Disconnect motorcables − Disconnect mains cable and wait 5 sec − Connect mains cable − Connect motor cable − Move the unit to buttom position for reset. © ROPOX 2016 Page 28... -
Page 29: Complaints
Complaints We refer to our general Terms of sale and delivery on our homepage www.ropox.com Keep this folder with product at all times ROPOX A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk...
