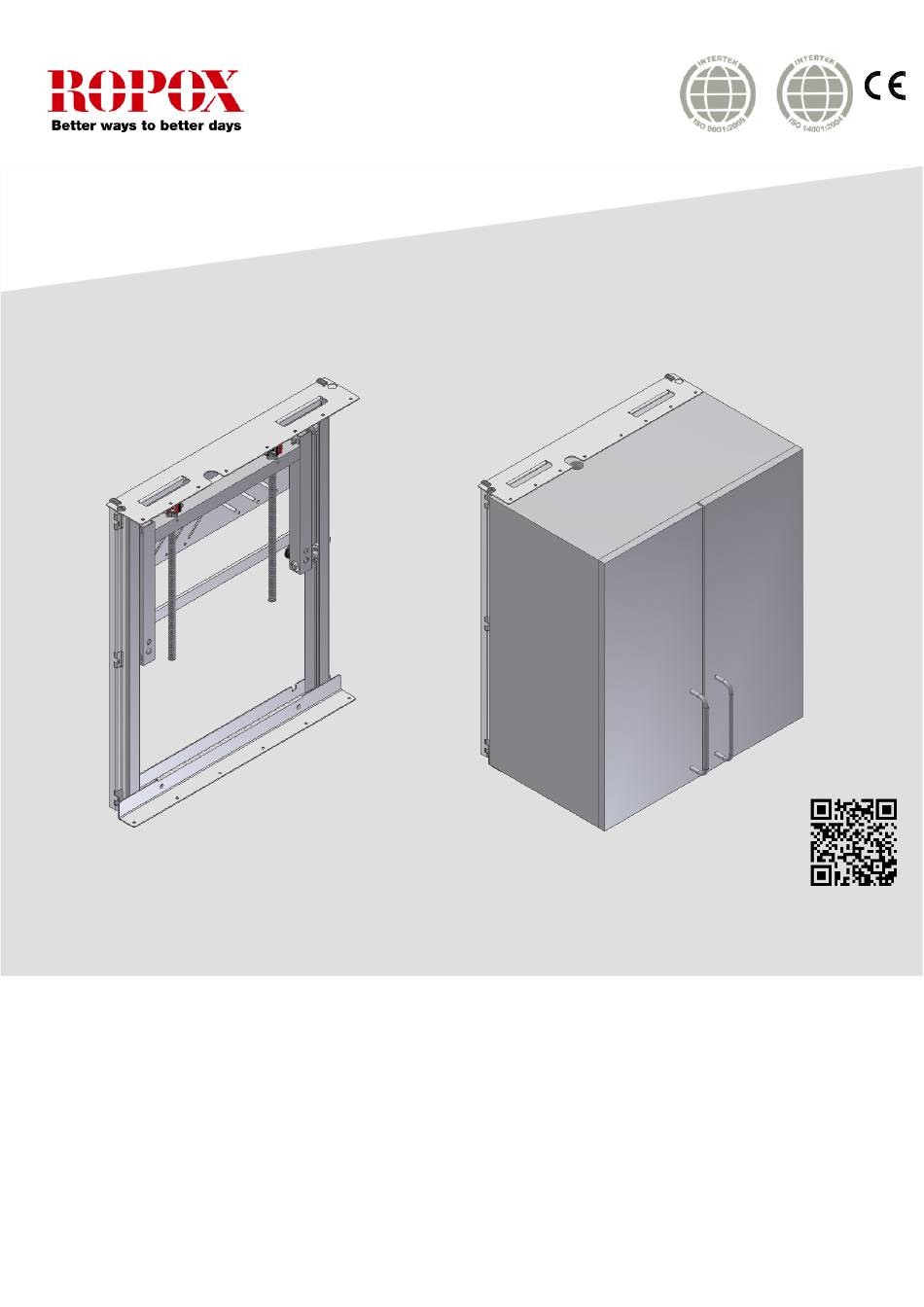

- Page 1 QR code to mounting video Ropox VertiElectric User manual Mounting instruction Keep this folder with product at all times! PDF 6077 / 06.03.19...
-
Page 2: Table Of Contents
6.9 Connection of cables ..........................19 MOUNTING INSTRUCTIONS FOR 2 UNITS ..................... 20 PERFORMANCE TEST ..........................23 LIST OF COMPONENTS FOR VERTIELECTRIC ................... 24 10. OPTIONS FOR VERTIELECTRIC ......................25 12. SAFETY IN USE .............................. 28 13. CLEANING AND MAINTENANCE......................29 13.1... -
Page 3: Introduction
Application VertiElectric is designed to obtain optimum working height for the user. VertiElectric has been designed for height adjustment of wall units. VertiElectric must NOT be used as a lifting table or person lifter. The product must be used indoor, under normal room temperatures and humidity as stated in section 4. -
Page 4: Technical Data
- Approx. 9 sec for a complete stroke Temperature: 5-45° C Air humidity: 5-85% (non-condensing) Complaints: See Complaints, page 32 Producer: Ropox A/S, DK-4700 Naestved, Tlf.: +45 55 75 05 00 E-mail: info@ropox.dk - www.ropox.com Page 4 © ROPOX 2016... -
Page 5: Schematic Diagram Of Frame
Height of upper edge of wall unit = 2120 mm (if another height required, regulate diagram accordingly) 50 ± 1 ///////////////// 230V connection 230V connection 230V connection VertiElectric VertiElectric VertiElectric Cabinet Cabinet Cabinet 400-500 mm 600-1200 mm 1300-1800 mm ///////////////// Page 5 © ROPOX 2016... -
Page 6: Wall Unit Sizes
The fitter should always consider the material, condition and strength of the wall and use screws and rawlplugs suitable for the specific wall type. 5.1.2 Wall unit sizes 330 mm Obs! – If Safety stop plate is not being used, wall units with less depth can be used! Page 6 © ROPOX 2016... -
Page 7: Wiring To Control Switch
We recommend a build-in pipe in wall where the cable can be pulled through (ø3cm). If a high wall unit is placed right next to a VertiElectric, it is an advantage to pull the cable for the control trough wall unit then a pipe in wall can be avoided. - Page 8 Cabinet width 130-180 cm (30-40613 to 30-40618) Page 8 © ROPOX 2016...
-
Page 9: Mounting Instructions
Drill hole and insert raw plug. ////////////// ////////////// 6.1.3 Level mounting plate in correct 6.1.4 Secure mounting plate with remaining height whereupon marking for screws which are necessary. remaining screws is carried out. Page 9 © ROPOX 2016... -
Page 10: Reinforcement Of Wall Units
6.3.1 Place wall unit on the floor with the gear box, be careful not to damage backside turned upwards, position any parts of VertiElectric. VertiElectric on top of the wall unit in the centre. 3 x ø12 1 x ø30 Marking 6.3.3 Mark one hole in the top of wall unit. - Page 11 Mounting of Verti unit 6.4.1 Lift VertiElectric onto mounting plate and 6.4.2 Once more lift VertiElectric onto adjust that it is placed in the centre of mounting plate, place and adjust in the wall unit, Mark additional 2 mounting centre of wall unit. Secure the frame holes.
-
Page 12: Mounting Of Wall Units
6.6.1 Motor, with spindle, is mounted through back plate and into gearbox 6.6.2 Safely turn the shaft for correct mounting of motor. Tighten the two screws. The eye on the yellow/green earth wire should be mounted on one of the screws. Page 12 © ROPOX 2016... - Page 13 6.6.4 Plug cables to motor. For order of connection look on page 18, point 8 (start-up procedure). The cables are secured by 6.6.5 6.6.6 The power cable from control box is secured mounting on safety plate. by mounting of safety plate. Page 13 © ROPOX 2016...
-
Page 14: Mounting Of Safetystop
Mounting of safetystop Placement possibilities 1: The safetystop is mounted flush with the front of the cabinet Cabinet: 330mm Safetystop: 370mm Door: 16-20mm From wall to safetystop 380mm Page 14 © ROPOX 2016... - Page 15 2: The safetystop is mounted flush with the front of the cabinet door Cabinet: 330mm Safetystop: 20-24mm 370mm Door: From wall to safetystop: 16-20mm 396mm – 400mm Page 15 © ROPOX 2016...
- Page 16 6.7.1 Place the safetystop in center, under the cabinet. The safetystop can be mounted flush with cabinet or cabinet door. Hold the safetystop in place with a clamp. 6.7.2 Screw the safetystop to cabinet with included wood screws. Page 16 © ROPOX 2016...
-
Page 17: Placing Of Cables For Safety Stop
The cable is placed long the left side of the cabinet Placement of extension and connected to the cable to Safety stop wire from the safety stop frame. Remove yellow 2,2kΩ resistor from the cord marked S2 Page 17 © ROPOX 2016... - Page 18 Connect extension cable to the cord marked S2. 6.8.2 Secure other end of cable for safety stop with strip in the right side. Note that a “yellow” short-circuit plug has to be mounted. Placement of Plug w/resistor (Yellow) Page 18 © ROPOX 2016...
-
Page 19: Connection Of Cables
6.9.2 Mounting of cable support for net cable to safety covers as shown. the wall. Secure 230V cable to the cable support on wall. Page 19 © ROPOX 2016... -
Page 20: Mounting Instructions For 2 Units
Mounting instructions for 2 units The 2 units should be mounted on the following bottom rail. The mounted unit should be mounted on the wall as described on page 11 Page 20 © ROPOX 2016... - Page 21 In addition to the cables, which are mounted on page 10, then connect the second motor cable in M2 on the control The new motor cable, should be drawn from the control box to the motor 2 Page 21 © ROPOX 2016...
- Page 22 14-17 Contact with yellow resistor placed on the right The two safety stop must side of the safety stop. be connected in the middle The cable connected to the safety stop on the left side Page 22 © ROPOX 2016...
-
Page 23: Performance Test
If a smart box has been mounted – (is used if a FlexiElectric has been mounted below this unit) follow additional instructions for smart box. If all test are ok, the frame is ready for use. See section “Safety in use”. Page 23 © ROPOX 2016... -
Page 24: List Of Components For Vertielectric
1 pc. Bottom profile: 30-40040 Bottom profile width 40cm 1 pc. 30-40050 Bottom profile width 50cm 1 pc. Motor for VertiElectric incl. fitting 30-40675: 1 pc. The motor comprises: 96000573 Cable for motor 1 pc.. 10098-453 Fitting for motor 1 pc. -
Page 25: Options For Vertielectric
Steel plate with mounting parts and plate. Smartbox 30-69002: 1 pc. Option for safety stop plate To be ordered if VertiElectric is mounted above a FlexiElectric Extension cord 30-67870: 1 pc. 250 cm (black) for safety stop Spiral extension 30-67871: 1 pc. - Page 26 30-42612 Led for 120cm Safetystop 30-42613 Led for 130cm Safetystop 30-42614 Led for 140cm Safetystop 30-42615 Led for 150cm Safetystop 30-42616 Led for 160cm Safetystop 30-42617 Led for 170cm Safetystop 30-42618 Led for 180cm Safetystop Page 26 © ROPOX 2016...
- Page 27 11. Placing of LED spot If LED spots are purchased, they will be positioned as shown on drawing below. Page 27 © ROPOX 2016...
-
Page 28: Safety In Use
➢ VertiElectric is a wall unit and must not be used as lifting equipment or person lifter. ➢ Always use the frame so there is no risk of damage to people or property. The person, who operates the frame, is responsible for avoiding damage or injury. -
Page 29: Cleaning And Maintenance
Check that all cables have been fitted correctly and are undamaged.. After each inspection the service schedule shall be filled in. Only use Ropox original spare parts as replacement parts. If other parts are used, the guarantee may become void Page 29 ©... -
Page 30: Service Schedule, Operation And Maintenance
If none of the above has helped reset the unit: − Disconnect motorcables − Disconnect mains cable and wait 5 sec − Connect mains cable − Connect motor cable − Move the unit to buttom position for reset. Page 30 © ROPOX 2016... -
Page 31: 15. Ce-Declaration
15. CE-declaration The undersigned hereby declares that the following products: Ropox VertiElectric all belong to risk class I and conform to the Directives and Standards mentioned below: DIRECTIVES The Machinery Directive 2006/42/EC STANDARDS DS/EN 12182: 2012 Assistive products for functionally disabled persons - General requirements and test methods Medical devices –... -
Page 32: Complaints
Complaints We refer to our general Terms of sale and delivery on our homepage www.ropox.com Keep this folder with product at all times ROPOX A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk...
