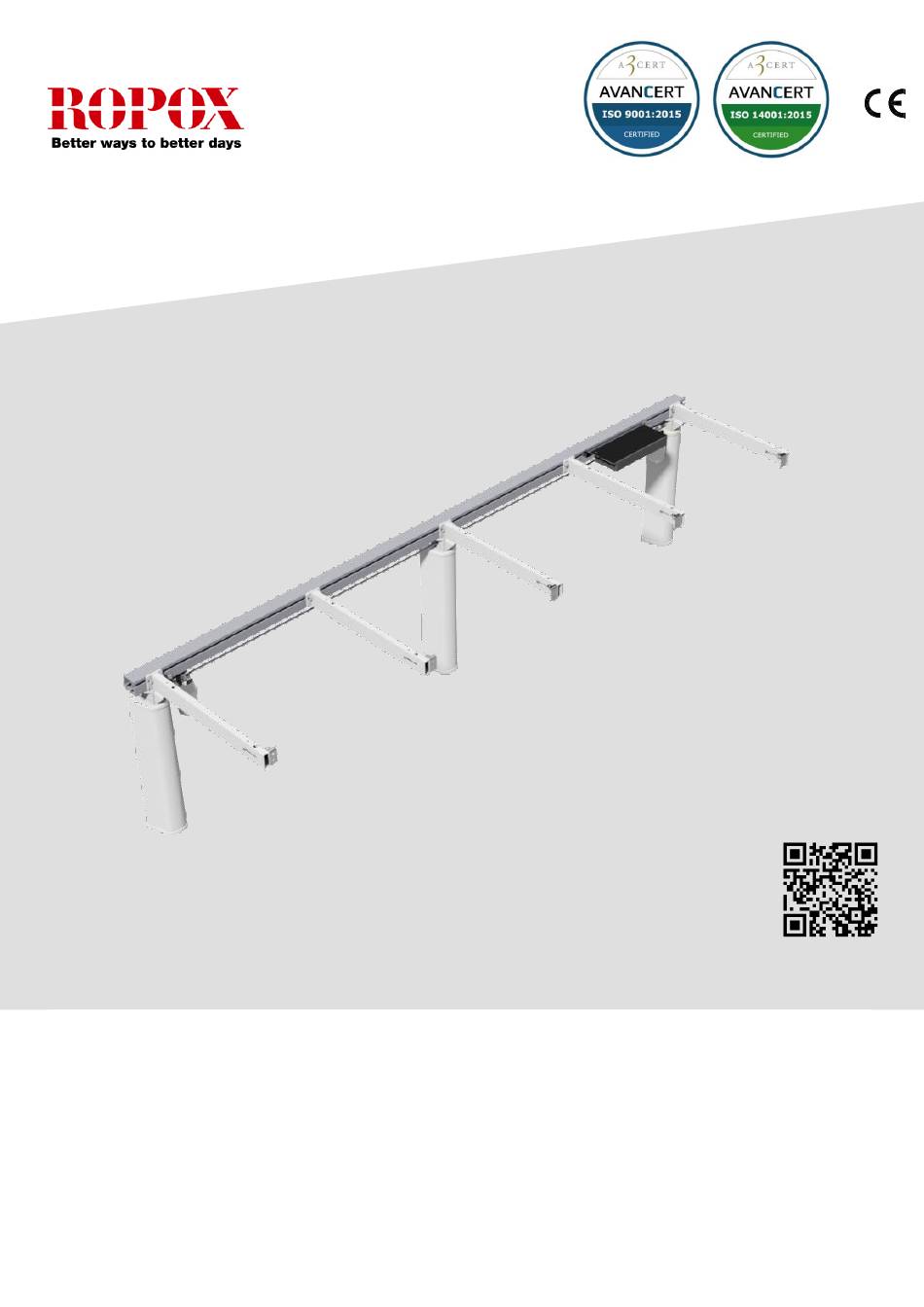

- Page 1 QR code to mounting video FlexiElectric 30-66XXX-3 User Manual Mounting Instructions Keep this folder with product at all times! PDF 6087 / 03.04.2019 PA 2004 00634...
-
Page 2: Table Of Contents
Contents INTRODUCTION ..............................3 COMPLIANCE WITH EU-DIRECTIVES ......................3 APPLICATION ..............................3 TECHNICAL DATA FLEXI ..........................4 INSTALLATION INFORMATION ........................5 FLEXI ELECTRIC QUICKSTART GUIDE ..................... 7 MOUNTING INSTRUCTIONS ........................... 8 Assembly of frame ............................8 Mounting the frame on the wall ........................10 Mounting of fittings for front fascia ...................... -
Page 3: Introduction
Introduction You have chosen Flexi, the multi-flexible, height-adjustable, easy-to-mount frame. The frame may be used separately or in combination with Diagonal or Verti, the adjustable system for wall cupboards. The frame has no inconvenient fascia and, consequently, the adjustment of the working height from 65 to 95 cm + worktop thickness may be fully utilised. -
Page 4: Technical Data Flexi
Max. 10 % conform to 1 min. active / 9 min. pause Speed: Approx. 32 Lifting time stroke 30 cm: Approx. 10 sec. Temperature: 5-45°C Air humidity: 5-85% (non-condensing) Complaints: See complaints, page 28. Manufacturer: Ropox A/S, DK-4700 Naestved, Tel.: +45 55 75 05 00 Page 4... -
Page 5: Installation Information
Installation information Minimum area for reinforcement of wall. Wall material must be suitable for screw mounting. Area for electric and plumbing installations. Max. load 150kg evenly distributed over the worktop up to 300cm in width, according to DS/EN 12182. Minimum load capacity per screw/bolt: 40 kg The fitter should always consider the material, condition and strength of the wall and use screws and rawlplugs suitable for the specific wall type. - Page 6 It is advisable to place water supply and waste within the hatched area. Also it is important to use flexible hoses for water supply and waste to ensure that the Flexi will move freely without obstacles within the height adjustment range 65-95 cm. excl. worktop. It is advisable to place the water supply and waste close to the sink.
-
Page 7: Flexi Electric Quickstart Guide
Strip / Smartbox should be used for each frame. Recommendations: • Ropox recommendation is to always make use of fascias on all 3 sides Start-up: • The frame must move freely and unimpeded throughout height adjustment. Check all connections of flexible hoses, cables etc. -
Page 8: Mounting Instructions
Mounting instructions The equipment should always be assembled by competent personnel. Prior to assembly check that all parts have been provided. See list of components, from page 20. If supporting feet have been ordered, follow assembly of these under paragraph for mounting of accessories first. - Page 9 7.1.5 All support arms, but 2, may be 7.1.6 The left hand side support arm may pushed into the aluminium profile from be pushed into the profile, positioned the right hand side to the required direct on top of the left leg and fasten position and fastened with two screws on each support.
-
Page 10: Mounting The Frame On The Wall
7.1.11 Move the stop rings on the spindle to both sides, so that the stop ring always faces the leg. Secure it by fastening the screw in the stop rings. Where you have an adjustable leg always position a support arm directly over it. Do not adjust the tilting of the arm supports that are positioned on top of the legs (see 6.5). -
Page 11: Mounting Of Fittings For Front Fascia
Mounting of fittings for front fascia 7.3.1 Fittings for mounting of the wooden 7.3.2 On the outermost support arms we front fascia are provided, recommend pointing the front corresponding to the number of fascia fittings towards the middle of support arms. Place the front fascia the frame to prevent them from fittings on the side of the support arm conflicting with the side fascia. -
Page 12: Adjusting The Worktop/ Support Arms
Adjusting the worktop/ support arms 7.4.3 Fasten the worktop with screws through the holes of 7.5.1 After placing the worktop on the the support arms. frame you may have to compensate for the weight of the worktop if the frame is no longer horizontal from the wall to the front fascia. -
Page 13: Mounting The Side Fascia
Mounting the side fascia 7.6.2 By screwing the front fascia fittings into the worktop you pull the front fascia upward. Finally tighten the screws on 7.7.1 Furniture fittings are provided the side of the support arm. with the frame to keep the wooden side fascia up against the worktop. -
Page 14: Mounting The Operating Unit
Connections to Control box Power Cable Motor Cable M2 Motor Cable M1 Split Cable safety stop Cable for Control switch Safety strip (option) 7.8.2 Mount all cable connections as illustrated. Note that the safty strip sit in S2. For connection sequence see section 8 (start-up procedure) on page 18 Mounting the operating unit 7.9.1 The control switch for the height adjustment must be fitted in the wooden front fascia. -
Page 15: Mounting Of Distance Plates
7.10 Mounting of distance plates 7.11 Mounting of covers 7.10.1 In case of skirting boards, you can use the 1 cm deep distance plate to pack the frame out from the wall 7.11.1 Place the 2 endcaps on istance between backside of standard cover and push worktop and wall has to be 0,5 cm over outer leg. -
Page 16: Mounting Of Accessories
Mounting of accessories Mounting the supporting feet 8.1.2 Fit the foot and the extension to the 8.1.1 Remove the adjusting screw of leg with the screws provided and the leg. tighten the screws. Mounting the covers for the legs 8.2.2 Lift up the upper/outside cover and press the snap lock into the hole of the leg. -
Page 17: Mounting Of Distance Plates For Skirting Board
Mounting of distance plates for skirting board 8.3.3 After fitting the press pad, fasten the cable under the worktop with cable bearers so that it does not sag. Finally fit the DIN-plug in the 8.4.1 In case of skirting boards, you control unit. -
Page 18: Montering Af Knægt 30-67642/30-67643
Montering af knægt 30-67642/30-67643 8.6.1 Push support arm into aluminium profile and make sure support arm is level with profile. Afterwards tighten screws. By using this support arm it is possible to mount hotplate or sink closer to edge of tabletop. 4,5 m 4,5 cm Page 18... -
Page 19: Performance Test
Performance test After installation and prior to use all functions of Flexi must be tested. The test must be carried out by competent personnel. Subsequently the test shall be carried out at least once a year: Testing prior to connection of mains voltage: 1. -
Page 20: List Of Components
List of components Legs, Electric standard height 65-95 cm. 30-67607: Length of worktop = 60-204 cm 2 legs Length of worktop = 205-300 cm 3 legs The legs comprise: 30-67681 Spacers (0.15 cm) 3 pcs./leg For misalignment 30-67680 Distance plates (1 cm) 2 pcs/leg For skirting board 30-67685 Cable bearer... - Page 21 Control box, fast (26,5x10,5x3,7 cm): Control box for 1 motor : 30-67859 1 pc Worktop length = 60-104 cm Control box for 2 motors: 30-67877 Worktop length = 105-300cm 240VAC, incl. netcable (250 cm) Enclosed with control box: 96000598 Adapter cable 98002082 Adapter plug 98002035 End resistor 2,2 KΩ, yellow 97702-433 Plate for fitting of Contol box...
-
Page 22: Options For Flexi
Options for Flexi Support arm for worktop depth 70-72 cm 30-67621: Length of worktop = 60-104 cm 2 pcs. Length of worktop = 105-204 cm 4 pcs. Length of worktop = 205-254 cm 5 pcs. Length of worktop = 255-300 cm 7 pcs. - Page 23 Supporting foot, L = 30 cm 30-67702: Length of worktop = 60-204 cm 2 pcs. Length of worktop = 205-300 cm 3 pcs. Supporting foot L = 49 cm 30-67703: Length of worktop = 60-204 cm 2 pcs. Length of worktop = 205-300 cm 3 pcs.
-
Page 24: Safety In Use
If the Flexi frame has not been installed in accordance with these mounting instructions, the guarantee may become void. ➢ Only use Ropox original spare parts as replacement parts. If other spare parts are used, the guarantee may become void. Page 24... -
Page 25: Cleaning And Maintenance
Check that all cables have been fitted correctly and are undamaged. After each inspection the service schedule shall be filled in. See item 12.3. Only use Ropox original spare parts as replacement parts. If other parts are used, the guarantee may become void. -
Page 26: Service Schedule, Operation And Maintenance
13.3 Service schedule, operation and maintenance Service and maintenance Service and maintenance Serial No.: Serial No.: Date: Date: Sign: Sign: Remarks: Remarks: Service and maintenance Service and maintenance Serial No.: Serial No.: Date: Date: Sign: Sign: Remarks: Remarks: Trouble shooting a) The frame seems loose or unstable The screws assembling the frame have not been securely tightened. -
Page 27: Ce-Marking
CE-marking The undersigned hereby declares that the following products: 60 – 104 cm Flexi, electrical with 1 motor and 2 legs 105 – 204 cm Flexi, electrical with 2 motors and 2 legs 205 – 300 cm Flexi, electrical with 2 motors and 3 legs all belong to risk class I and conform to the Directives and Standards mentioned below: DIRECTIVES The Machinery Directive 2006/42/EC... -
Page 28: Complaints
Complaints We refer to our general Terms of sale and delivery on our homepage www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.com Page 28...
