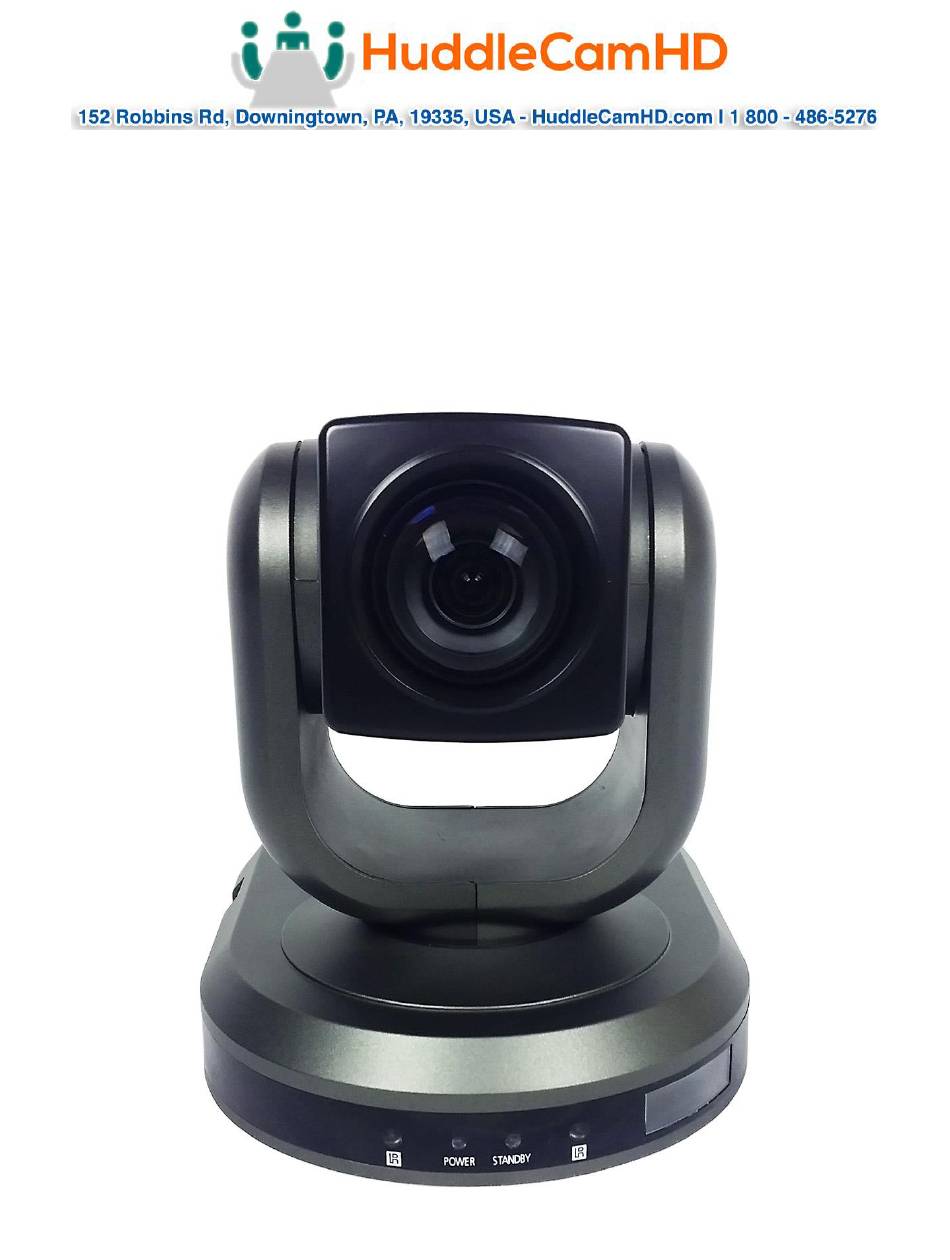

- Page 1 HuddleCamHD 20x USB 3.0 PTZ CAMERA INSTALLATION & OPERATION MANUAL Please check HUDDLECAMHD.com for the most up to date version of this document Ver 1.4 11/20...
- Page 2 Precautions…………………………………………………………………………………………. Safety Tips……………………………………………………………………………………………. • Please read this manual carefully before using the camera. • Avoid damage from stress, violent vibration or liquid intrusion during transportation, storage or installation. • Take care of the camera during installation to prevent damage to the camera case, ports, lens or PTZ mechanism.

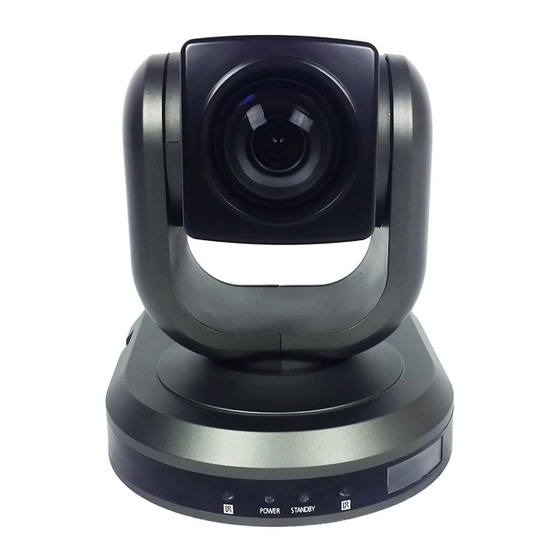

- Page 3 Physical Description……………………………………………………………………… Front View………………………………………………………………………………… Lens IR Receiver To receive IR remote controller signal. Power LED Blue LED lights when unit is powered and on. Stand by LED Orange LED lights when unit is powered and in standby. IR Receiver To receive IR remote controller signal. Page 3 of 18 Ver 1.4 11/20...
- Page 4 2. Rear View…………………………………………………………………………………………. USB 3.0 Interface For connection to PC USB 3.0 port (also compatible with USB 2.0 port and driver). IR Selective Switch When using only one remote to control more than one camera, this switch will assign a unique ID to each camera. VISCA In Port For hard wired remote control from a 3 party PC, joystick, etc...
- Page 5 Bottom View…………………………………………………………………………………. 1. Dip-Switch Used for selecting baud rate and the remote signal output switch. 2. Tripod Will accept 1/4-20 bolt from 3 party tripod, wall or ceiling mount. Page 5 of 18 Ver 1.4 11/20...
- Page 6 4. Dip-Switch Settings………………………………………………………………………….. Note: When changing Dip-Switch settings, make all changes with camera powered off. Dip-Switch 1, 4, & 5 – Reserved. Dip-Switch 2 – Switch for settings the control protocol. ON = RS-485 control & PELCO-D. OFF = RS-232 control & VISCA. Dip-Switch 3 - Switch for firmware upgrading.
- Page 7 Cable Connection Info………………………………………………………………………… RS-232C - IN Reference……………………………………………………………………… RS232 OUT, RS-485 – In / Out Reference…………………………………………… Page 7 of 18 Ver 1.4 11/20...
- Page 8 RS-485 Reference………………………………………………………………………………. OSD MENU…………………………………………………………………………………………….. On Screen Display Menu - Use the OSD menu to access and change the camera’s settings. Note: You cannot manually move the camera (pan/tilt) when the OSD menu is visible on the screen. The Dome OSD Menu is as follows: •...
- Page 9 • Information o Version (Firmware version) o Model HuddleCamHD G3 o Date (Manufacture Date) The Lens OSD Menu is as follows: • Exposure o Brightness Default Value: 50 Range: 0 – 255 (increments of 5) o Backlight Default Value: Off...
-
Page 10: Ir Remote Controller
IR Remote Controller (Note: Some buttons do not operate for all camera models) Reset: Restarts the camera and restores it to Factory Default settings. (Note: Will delete all memory). Camera Selection Select Camera ID: 1, 2 or 3 Preset Positions 1-9: Preset Positions Set: Setting Preset Position Clear: Clear Preset Position... - Page 11 Connection Instructions……………………………………………………………………… Connect included Power Supply to the camera. Wait for camera to come to Home Position. Connect included USB 3.0 cable to camera and USB 3.0 port of PC (unit is also backwards compatible with USB 2.0 port). Select and configure camera in your software of choice. NOTE: Failure to follow this sequence may result in no connection to PC.
- Page 12 Tripod Installation………………………………………………………………………………… When using the HuddleCam with a tripod, screw the tripod to the bottom of the cam- era. The tripod screw must fit below specifications: Note: Tripod must stand on a level surface. Page 12 of 18 Ver 1.4 11/20...
- Page 13 Ceiling Mount………………………………………………………………………………………… Step1: Secure the Ceiling Plate to the ceiling. Ceiling Use screws to secure the four raised parts of the quadrate to Triangle bracket the ceiling. Step 2: Fix the Triangle Plate to the camera. Use a 1/4-20 screw to secure the Triangle Plate.
- Page 14 Troubleshooting………….………………………………………………………………………… Problem Cause Resolution There is no power to the Power adapter is Check the connections camera. disconnected from mains between the camera, or from camera. power adapter and mains. If anything is disconnected, reconnect Power switch is set to Set the power switch to OFF.
- Page 15 USB 3.0 camera connectivity. HuddleCam Cameras All HuddleCamHD cameras utilize the UVC (USB Video Class) drivers that are built into Windows, Mac OS and Linux to stream HD video to your device via your device’s USB port (USB 2.0 or USB 3.0 depending upon HuddleCam model).
- Page 16 In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device (HuddleCamHD) as well as a USB 2.0 device with limited functionality (USB2.0 Camera). If your device has not connected to or has not recognized the HuddleCam as an imaging device (in which case, you may see a new “unknown device”, “Westbridge”...
- Page 17 Similarly, you can see a connected device in System Information on a MAC. See screenshot below: In this example, you can see the HuddleCam model in use connected as a fully functional USB 3.0 device “HuddleCamHD” as well as a “USB2.0 camera” with limited functionality (USB2.0 camera). Page 17 of 18...
- Page 18 1/2.8” CMOS 2.1 Mega Pixel • Frame Rate 30fps 1920 x 1080p, 30fps 1280 x 720p • Lens Zoom 20X Optical Zoom, 12X Digital Zoom f=4.7-94mm • Field of View 5° (tele) to 58° (wide) • Min Lux 0.5 Lux at F1.6 •...
