HuddleCamHD HC3X-BK-G2 Datasheet

Conferencing cameras
Hide thumbs Also See for HC3X-BK-G2:
Table of Contents

Advertisement

Quick Links

Compatibility
• Windows 7/8/8.1/10
• Mac OS X
• Acano
• Adobe Connect
• BlueJeans
• Cisco Jabber
• Cisco WebEx*
• Easymeeting
• Facetime
• Fuzebox
• Google Hangout
• GoToMeeting
• Lifesize
• Skype for Business(Lync)
• Polycom RealPresence
• Radavision
• Spontania
• Skype
• TurboMeeting.US
• Vidyo
• Vsee
•
Zoom.US
• Google Hangouts on Air
YouTube Live
*
Does not support image flip
Specifications
Camera & Lens
Video CMOS Sensor
Frame Rate
Lens Zoom
Field of View
Warranty
Features
• 3X Optical Zoom
• USB 2.0
• RS-232
• 1920 x 1080
• 81° Field of View
• Up to 30fps
• 64 Presets
• IR Remote
1
2
4
3
Lens
1.
3x Optical Zoom
2.
IR Receiver
To receive IR remote
controller signal
Power LED
3.
Blue LED lights when
unit is powered and is dark in
standby mode.
1/2.7" CMOS, 2.1 Mega Pixel
30fps 1920 x 1080p
3X Optical Zoom f=3 - 10mm F1.4
36°(tele) to 81° (wide)
2 Years parts and labor
The HuddleCamHD 3X is ideal for
a small to medium sized meeting
rooms. This camera is compatible
with every system that accepts
USB cameras.
6
IR Receiver
4.
To receive IR remote
controller signal
DC IN 12V Socket
5.
Only use the Power Adapter
supplied with this camera
IR Receiver
6.
To receive IR remote
controller signals
What's in the Box
3X Zoom USB 2.0 Camera
12V/2.0A DC Power Adapter
Mounts: Tripod Mount
USB 2.0 Data Cable (3m), Serial Control Cable, RS-232C to RS-485 Adaptor
IR Remote Control
User Manual (Also Downloadable Online)
1
HuddleCam HD 3X Gen2
Conferencing Camera

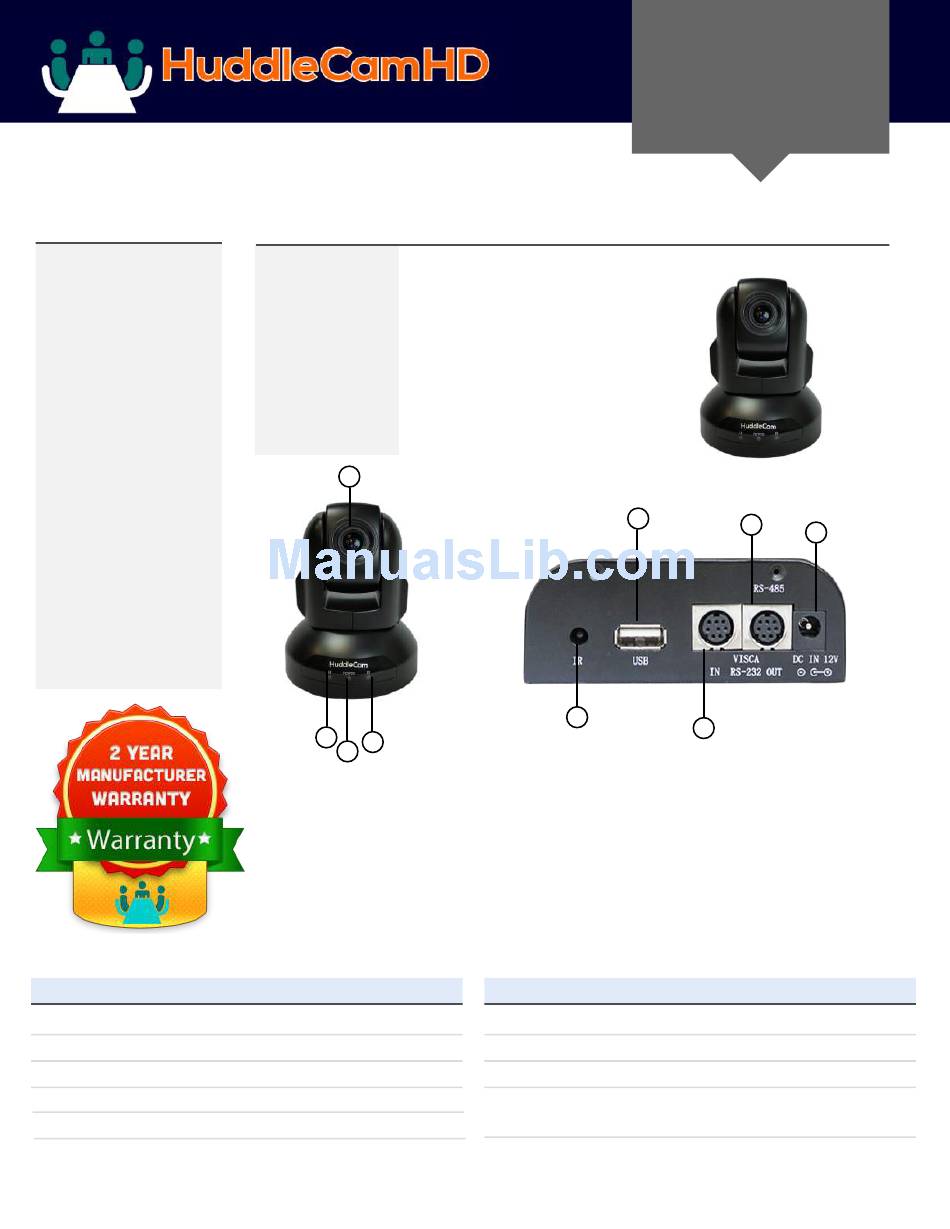

DATA SHEET
HuddleCamHD
Model Number: HC3X-BK-G2
9
8
5
7
VISCA IN Port
7.
For hard wired remote control
from a 3rd party PC, joystick, etc...
VISCA Out Port/RS485
8.
Used for daisy chaining multiple
cameras for RS-232 RS-485 control
USB 2.0 Interface
9.
For connection to PC (USB 2.0 port.
Will also function in a USB 3.0 port
as USB 2.0 device)
Rev 1.2 8/15
