Simplex 4099-5211 Instructions page 2

Operation
Maintenance
Specifications
Parameter
System Compatibility
Environment
Operating Temperature
Storage Temperature
Material
Approvals
CPR
Declaration of Performance
DoP-2015-4170
All required Declarations and certificates are publicly available on the website
The above fire detection products are components designed for use in Addressable Systems exclusively available to registered partners only. They are intended for installation
by trained registered personnel only. Systems should be installed and configured according to local regulations.
Value
Use only with the Simplex SX501 Fire
Alarm Controller
Outdoor applications
o
-25 to +70 C
o
-30 to +70 C
Flame Retardant ABS, glass reinforced
CPR Approval
EN54-11 EN54-17
 
To check the status
The "Status LED" is shown on the previous page, its conditions are: "not
activated" – this is normal; "activated yellow" – there is a short circuit on
the loop. This must be rectified as quickly as possible; "activated red" – the
callpoint has been activated, indicating that there is a fire alarm state within
the building.
To activate
To activate the callpoint press on the position marked (large dot). This
allows a spring to push the plastic element downwards, so closing a switch
and triggering a signal to the control panel.

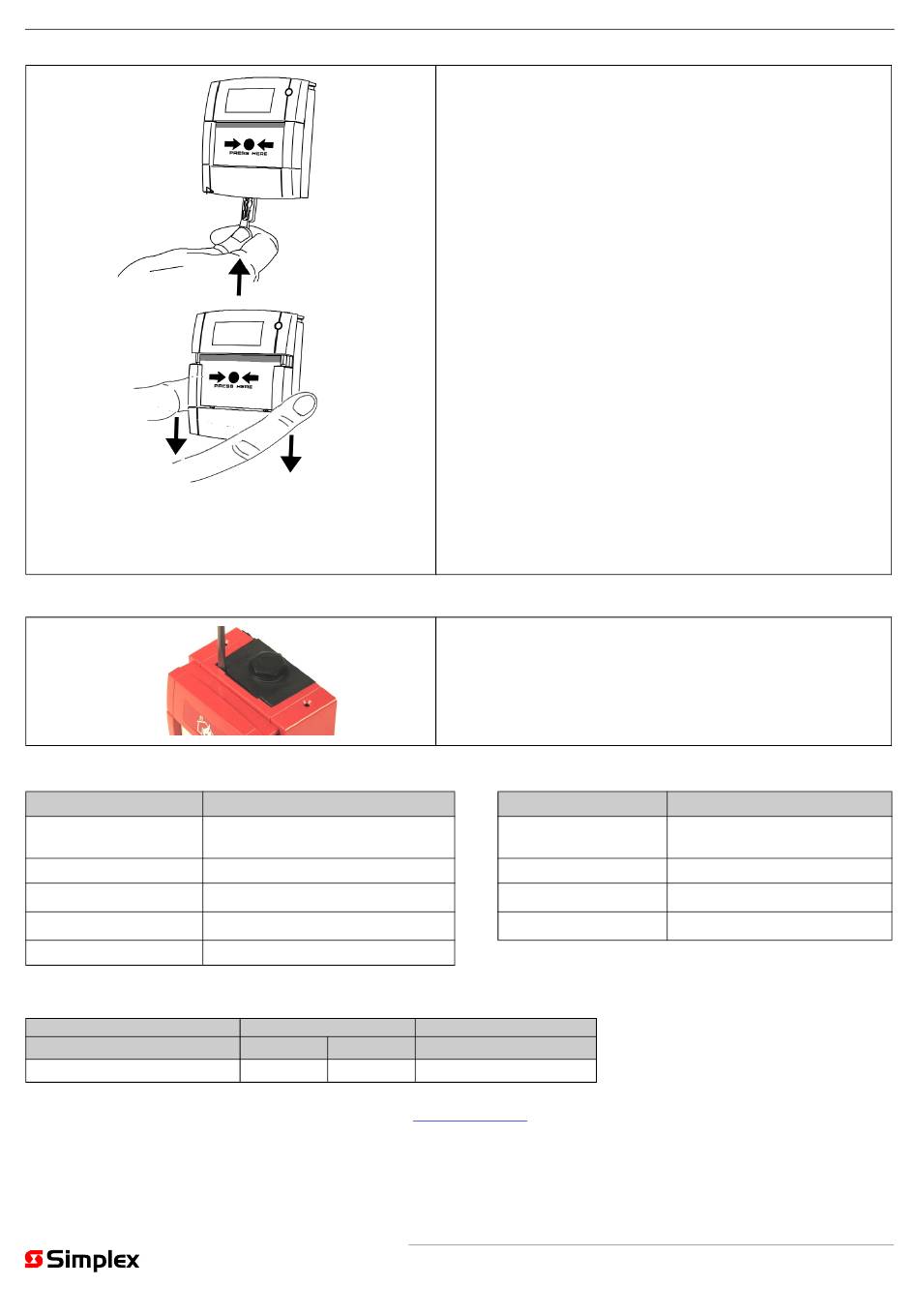

To test
A test/reset key is provided to activate the callpoint for testing. Insert this
into the slot in the bottom of the unit and pull the sliding plate (lower half
of the front face) downwards. (Note this potentially causes an alarm).
Remove the key.
The deformable element also allows you to test by activating the callpoint
as normal. This is non-destructive.
To reset
To reset the callpoint, follow the 'To test' procedure above –pulling the
sliding plate downwards allows the element to snap back to its non-
deformed state.
To replace the glass or deformable element
Follow the 'To test' procedure above. Pull down further on the sliding plate
until it is free of the unit. Remove the deformable element, pulling away
the bottom first. Fit the replacement then push the sliding plate upwards
until it snaps back into place.
To remove the unit from the backbox
1 Remove the back box locking screws.
2 Gently lever the callpoint away from the back box by twisting a flat
bladed screwdriver in the slots between them.
Parameter
Operating Humidity
Dimensions (HWD)
Weight
IP Rating
European Type Approvals
LPCB

www.simplex-fire.com and are searchable by number or model name.
120.515.787_SPX-D-MCP830-DS. doc. version 1.0. 9. April 2018.
©2018 Johnson Controls. All rights reserved. All specifications and other information shown were current as of
document revision date and are subject to change without notice.
www.simplex-fire.com
Tyco Fire & Security GmbH, Victor von Bruns-Strasse 21, 8212 Neuhausen am Rheinfall, Switzerland
Simplex Outdoor Isolated Callpoint
Value
Up to 95 %.non-condensing
93 x 97.5 x 73 mm
240 g
IP67
