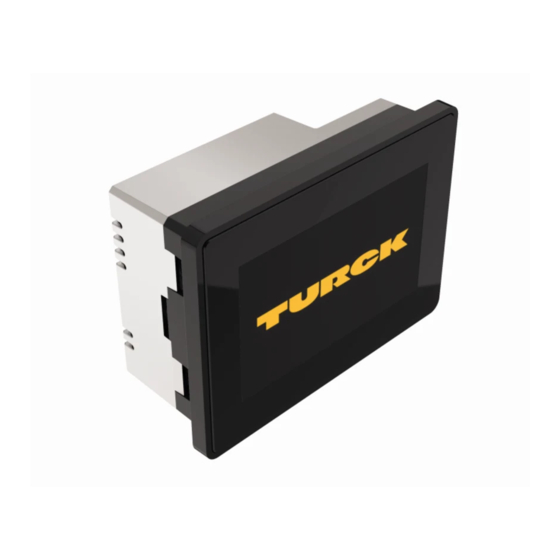

turck TX700 Series Instructions For Use Manual
  1. Manuals
  2. Brands
  3. turck Manuals
  4. Recording Equipment
  5. TX700 HMI/PLC Series
  6. Instructions for use manual

turck TX700 Series Instructions For Use Manual

Hmi/plc
Hide thumbs Also See for TX700 Series:
Table of Contents

Advertisement

Quick Links

Your Global Automation Partner
TX700
HMI/PLC Series
Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for turck TX700 Series

Summary of Contents for turck TX700 Series

  • Page 1 Your Global Automation Partner TX700 HMI/PLC Series Instructions for Use...
  • Page 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 3: Table Of Contents

    Table of Contents About These Instructions .........................  5 Target groups........................ 5 Explanation of symbols used .................. 5 Other documents ...................... 5 Feedback about these instructions................ 5 Notes on the Product .........................  6 Product identification.....................  6 2.1.1 Type label............................ 6 2.1.2 Type code ............................
  • Page 4 10 Troubleshooting .......................... 32 11 Maintenance............................ 33 12 Repair.............................. 33 12.1 Returning devices...................... 33 13 Disposal .............................. 33 14 Technical Data........................... 34 15 Appendix: Approvals and markings ..................... 40 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 5: About These Instructions

    We make every effort to ensure that these instructions are as informative and as clear as pos- sible. If you have any suggestions for improving the design or if some information is missing in the document, please send your suggestions to techdoc@turck.com. V02.00 | 2020/11...

  • Page 6: Notes On The Product

    TX707-… Ident No. 100002031 Year/week of production A2003 Serial number (S.N.) AA… Internal version ID of the product (V) 121… Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 7: Type Code

    2.1.2 Type code TX 7 05 FB – P3 CV 01 Product series Series Screen diagonal Product series Serie Size Turck HMI/PLC TX700 series Without display 5” 7” 10.1” 15.6” 21.5” – Variant Visualization Variant Visualization Blank Standard P3 CODESYS V3 PLC Runtime CV CODEYS V3 TargetVisu Runtime Food &...

  • Page 8: Manufacturer And Service

    For further inquiries in Germany contact the Sales and Service Team on: Sales: +49 208 4952-380 Technology: +49 208 4952-390 Outside Germany, please contact your local Turck representative. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 9: For Your Safety

    The product is designed according to state-of-the-art technology. However, residual risks still exist. Observe the following warnings and safety notices to prevent damage to persons and property. Turck accepts no liability for damage caused by failure to observe these warning and safety notices.

  • Page 10: Conditions Resulting From Atex And Iecex Approval (Use In Zone 2/Zone 22)

    When used in Zone 22: Install the device in a housing of protection class IP6x approved for dust areas. Only disconnect and connect circuits when no voltage is applied. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 11: Product Description

    Product Description The front of the device is designed in protection class IP66, the rear of the housing in IP20. For the connection to Ethernet, two (TX705) or three (TX707…TX721) Ethernet ports are avail- able. The serial port is used to communicate with a PLC or with field devices with RS232 or RS485 in- terface.

  • Page 12: Properties And Features

    CODESYS V3 PLC runtime with selection of the most important I/O protocols CODESYS V3 WebVisu or TX VisuPro WebVisu Optional extension modules for I/Os and further communication interfaces Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 13: Functions And Operating Modes

    Functions and operating modes The CODESYS V3 control of the devices has the functions PROFINET controller, EtherNet/IP scanner and Modbus TCP as well as Modbus RTU master. Additionally the TX700 HMIs can be used as Modbus TCP as well as Modbus RTU slave. The devices combine all functions of a PLC with the functions and interfaces of the TX VisuPro software.

  • Page 14: Accessories

    USB 2.0 EXTENSION ACTIVE 5M USB 2.0 extension cable, male (A) to female (A), with active repeater, 5 m NOTE You will find further accessory products under www.turck.com. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 15: Installing

    Installing The devices are inserted into a flat mounting plate with a corresponding installation cut-out. NOTE The technical data in the appendix of these operating instructions contain informa- tion on the size of the required installation cut-out. Fig. 6: TX700 – mounting Installation instructions For use in Zone 2 and Zone 22: Observe notes on explosion protection.

  • Page 16: Fasten Devices In The Mounting Cutout

    Tighten the fastening screws until the brackets are firmly in contact with the device. The minimum tightening torque to guarantee protection class IP66 is 130 Ncm. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 17: Installing Plug-In Modules

    Installing plug-in modules Fig. 8: Installing plug-in modules Fig. 9: Installing plug-in modules (e. g. TX-CAN, TX-IO-DX06) (e. g. TX-IO-XX03) V02.00 | 2020/11...

  • Page 18: Grounding The Device

    (1 MΩ resistor with 4.7 nF capacitor connected in parallel). „ The power supply must have double or reinforced insulation. Fig. 10: Power supply – wiring Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 19: Connecting

    Connecting DANGER Ignitable atmosphere Explosion by ignitable sparks „ Do not disconnect the device in an ignitable atmosphere when energized. „ Disconnect the device from the power supply before replacing or connecting modules. „ Observe notes on explosion protection. „ Provide transient protection at the supply terminals set to a maximum of 140 % of the peak value of the rated voltage.

  • Page 20: Connecting Tx707

    Fig. 13: Power connectorTX7… NOTE The power connector is part of the scope of delivery and can be ordered as spare part [} 14]. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 21: Connecting The Device To Ethernet

    Connecting the device to Ethernet For the connection to Ethernet, the TX705 has two RJ45 Fast Ethernet sockets. The devices TX707…TX721 have two RJ45 Fast Ethernet sockets and one RJ45 Gigabit Ethernet socket. „ Connect the device to Ethernet using a standard Ethernet cable. Use a Gigabit-capable Ethernet cable to connect the devices to a Gigabit network.

  • Page 22: Connecting Plug-In Modules

    RS232 Serial TX-IO-DX06 Compact I/O TX-IO-XX03 Multifunction I/O 1 TX705: TX-EXTEND or other extension module with ex- tension slot necessary Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 23: Slot Assignment - Can Port

    Module Application Max. number of modules Interface type/ Bus extension communication connector interface TX-DP-S PROFIBUS-DP slave TX-UMTS UMTS modem Serial TX-EXTEND Extension module 1 for TX705 None The column max. modules refers to the max. number of modules which can be plugged into the HMI (all slots).

  • Page 24: Commissioning

    If the simple link causes a conflict with an already active WebVisu application, the system set- tings can also be accessed directly via the following link: https://IP/machine_config Example access: https://192.168.1.24/machine_config Username: admin Password: admin Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 25: Setting The Ip Address

    Setting the IP address The IP address can be set via the system settings on the touch screen of the device, the device’s web server or via the Turck Service Tool. 7.5.1 Setting the IP address via the web server „...

  • Page 26: Setting The Ip Address Via Turck Service Tool

    Turck Service Tool shows the connected devices. NOTE Clicking the device's IP address opens the web server. Fig. 19: Turck Service Tool – found devices Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 27: Programming With Codesys

    Change the IP address and the net mask, if necessary. „ Accept the changes with Set in device . Fig. 20: Turck Service Tool – changing the IP configuration Programming with CODESYS The devices are delivered with a pre-installed CODESYS runtime.
  • Page 28 Project transfer via a USB stick „ Create an update package with TX VisuPro and copy it to a USB stick. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 29: Configuring

    Configuring The devices have an integrated User interface and a web server for configuring the system. The user interface is based on HTML pages accessible via port 443 using a Web browser (Fire- fox V.79 Chrome V.44 or higher). Alternatively, the system settings can be called and operated via a VNC client.
  • Page 30 ("user”). The administrator has full access to the sys- tem settings (updates of the BSP and other system components). The standard user has some restrictions. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 31: Operating

    Operating DANGER Changing components Explosion hazard – Suitability for Class 1, Division 2 possibly impaired „ When replacing components, make sure that the suitability of the device for Class 1, Division 2 is not affected. „ Only use components that are suitable for use in Class 1, Division 2. „...

  • Page 32: Troubleshooting

    If there are no faults, there is a device malfunction. In this case, decommission the device and replace it with a new device of the same type. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...

  • Page 33: Maintenance

    When returning to Turck, please refer to our return policies. 12.1 Returning devices Returns to Turck can only be accepted if the device has been equipped with a Decontamination declaration enclosed. The decontamination declaration can be downloaded from https://www.turck.de/en/retoure-service-6079.php and must be completely filled in, and affixed securely and weather-proof to the outside of the packaging.

  • Page 34: Technical Data

    1 × V2.0, 2 × V2.0, max. 500 mA max. 500 mA SD card Extension slot (plug-in) Max. number of plug-in modules Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 35 TX705-P3CV01 TX707-P3CV01 Power supply Rated value 24 VDC 24 VDC (SELV or Class 2) (SELV or Class 2) Admissible voltage range 18…32 VDC 18…32 VDC Current consumption at 24 VDC 0.6 A 0.7 A Dimensions Housing (W × H) 147 × 107 mm 187 ×...
  • Page 36 USB/SD card Real Time Clock Yes (battery-backed) Yes (battery-backed) Accuracy RTC < 100 ppm < 100 ppm (at 25 °C) Buzzer Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 37 TX707HB-P3CV01 TX710HB-P3CV01 SPS data Programming CODESYS V3 CODESYS V3 Programming languages IEC 61131-3 IEC 61131-3 (IL, LD, FBD, SFC, ST) (IL, LD, FBD, SFC, ST) Programming interface Ethernet Ethernet Program memory 20 MB 20 MB Non-volatile memory 63 kByte 63 kByte Interfaces Ethernet ports 1 ×...
  • Page 38 Port: DC mains 0 % duration: 10 ms 20 fields × 1 s Test executed on the 24Vdc of the EUT EN 61000-4-29 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 39 Display durability Backlight service life Durability at 25 °C, continuous Time to darken the display to min. 40000 Std. (LED-Typ) operation 50 % of the nominal value NOTE Prolonged use at an ambient temperature of 40 °C or higher may result in a deterior- ation in the quality, reliability and durability of the backlight.

  • Page 40: Appendix: Approvals And Markings

    (UL File No. E484803) Class I, Division 2, Groups A, B, C and D DNV-GL (not for TX707HB and TX710HB) Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 41 Over 30 subsidiaries and over 60 representations worldwide! 100002669 | 2020/11 100002669 www.turck.com...

This manual is also suitable for:

Tx705-p3cv01Tx707-p3cv01Tx710-p3cv01Tx715-p3cv01Tx721-p3cv01Tx707hb-p3cv01 ... Show all
