INSTALLATION INSTRUCTION
AND PRODUCT CARE
Please ensure the plumber reads this installation

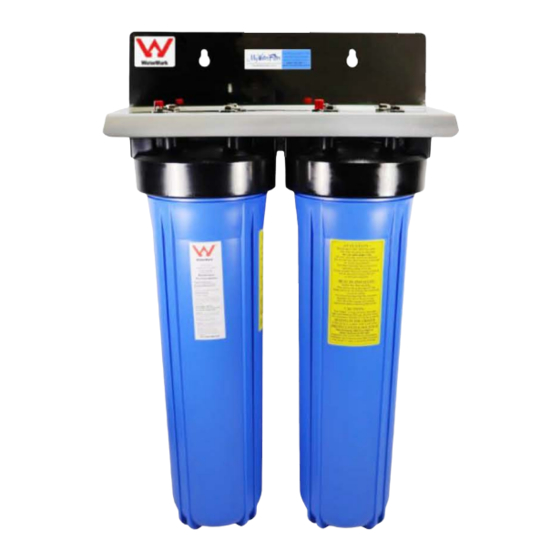

MWF BIG BLUE WHOLE HOUSE
WATER FILTRATION SYSTEMS
Thank You for trusting us with your Water Filtration needs.
Please read and follow the steps below on setting up your Product.
If you need any help, please call us at 1800-769-300 or contact us
through our website at www.mywaterfilter.com.au/contacts/ or email
us at customerservice@mywaterfilter.com.au
instruction before installation.
Advertisement
Related Manuals for My Water Filter MWF BIG BLUE WHOLE HOUSE WATER FILTRATION SYSTEMS
Summary of Contents for My Water Filter MWF BIG BLUE WHOLE HOUSE WATER FILTRATION SYSTEMS
- Page 1 INSTALLATION INSTRUCTION AND PRODUCT CARE Please ensure the plumber reads this installation instruction before installation. MWF BIG BLUE WHOLE HOUSE WATER FILTRATION SYSTEMS Thank You for trusting us with your Water Filtration needs. Please read and follow the steps below on setting up your Product. If you need any help, please call us at 1800-769-300 or contact us through our website at www.mywaterfilter.com.au/contacts/ or email us at customerservice@mywaterfilter.com.au...
- Page 2 Parts Dimensions...
-
Page 3: Before You Start
Before you start Things you will need: Plumber Thread Tape Spanner Assorted Tools Drill Ball valves Elbows Water Pipe Take some time to clear any items out of the way to ensure you have a safe, clear area to install the water filter. - Page 4 Easy Installation Guide CLICK HERE TO WATCH THE VIDEO CLICK HERE TO WATCH THE VIDEO...
-
Page 5: Installation
INSTALLATION Assess the location where the whole house big blue filter system will be installed. Look for a desirable position where the filter can be fixed se- curely. The whole house big blue filter system bracket has 2 x holes to attach it onto the wall. - Page 6 Set up the whole house big blue filter to match the flow di- rection. The caps are marked “In” and “Out” on the top of the housing or from left to right. These systems come pre-assem- bled. However, if your flow direction is right to left, the brack- et must be removed from the system and needs to be turned around 180 degrees then reconnected.
- Page 7 After complete installation, do not open the valve on the mains yet, fully open an outside tap nearest to the whole house big blue filter system first. Slowly open the valve on the main line and let the whole house big blue filter system fill with water. Once full, water will flow out of the opened tap nearest the water filter.
- Page 8 NOTICE: IMPORTANT: PLEASE DO NOT OR MUST NOT use any form of sealant on the threads of this water filter. Please ONLY use plumbers thread tape. If you use any sealants they have a history of expanding after the water filter is connected and can crack the inlet &...
-
Page 9: Installation Setup Diagram
Installation Setup Diagram Diagram 1: MWF 20” x 4.5” Triple Big Blue Whole House Water Filter System Diagram 2: MWF 20” x 4.5” Triple Big Blue Whole House Water Filter System Complete with Hard Water Conditioner... - Page 10 Diagram 3: MWF 20” x 4.5” Triple Big Blue Whole House Water Filter System Complete with Hard Water Conditioner & Positive Charged Wa- ter Magnet Diagram 4: MWF 20” x 4.5” Triple Big Blue Whole House Water Filtration System Complete With Hard Water Protection &...
- Page 11 Diagram 5: MWF 20” x 4.5” Triple Big Blue Whole House Water Filter Sys- tem Complete with GRANDER NOTE: The GRANDER® unit can be installed right after the whole house filter for maximum water treatment. Please see Grander Installation information in the email & inside the box.
- Page 12 How to Change Cartridges: CLICK HERE TO WATCH THE VIDEO Shut off the water supply.
- Page 13 Open a tap closest to the Use the supplied housing whole house big blue filter opening tool to remove the and allow all the pressure to housing by turning it anti- empty via the tap. clockwise. Once loosened with the tool, the housing can be removed by hand.
- Page 14 Remove the old filter and discard. Make sure to note the orientation of the cartridges. Install the new whole house big blue cartridges into the fil- ter housings. NOTE: You can do some preventive maintenance while doing the cartridge replacement. Lubricate the o-ring and housing threads with food grade silicone grease.
- Page 15 Ensure the cartridges center hole are seated in the stump in the base of each housing. Ensure the cartridge is centered & ver- tical as you lift the hous- ing up into the head cap thread to replace. Hold 1 hand under the housing as you screw back on the whole house big blue filter housing by turning it clockwise.
- Page 16 Open the valve on the mainline slowly and let the wa- ter flow. Once the housings fill with water press the red air bleeder buttons on top of the filter housings to release the air inside the whole house big blue filter system. This will ensure that no air pockets are trapped inside.
- Page 17 For Customer Service Call us at 1800-769-300 My Water Filter Pty Ltd...
