Ruskin RRS ROOFTOP YCD/TCD Installation Instructions Manual

EN ERGY RE COV ERY VENTILATOR
INSTALLATION INSTRUCTIONS FOR ENERGY RECOVERY VENTILATOR (FIXED) USED
WITH TRANE ROOFTOP UNIT MODELS YCD/TCD 15 TO 20 TON UNITS
I - Ship ping And Pack ing List
Package 1 of 2 contains:
1 - Energy Recovery Wheel Assembly
1 - Outdoor Fresh Air Hood with Filter
1 - Outdoor Exhaust Hood with Filter
1 - Bag Assembly
a) Gasketing.
b) Foot pads
c) Hardware for standoff legs.
d) Wiring harness
e) Hardware for attachment to economizer.
Package 2 of 2 contains:
1 - Balancing Damper Assembly
2 - Filler Panels
1 - Top Adaptor Panel
1 - Platform Support Rail
II - Ship ping Dam age
Check unit for shipping damage. Receiving party should
contact last carrier immediately if shipping damage is
found.
III - Gen eral
These instructions are intended as a general guide and do
not supersede local codes in any way. Authorities having
jurisdiction should be consulted before installation.
IV - Re quire ments
When installed, the unit must be electrically wired and
grounded in accordance with local codes or, in absence of
local codes, with the current National Electric Code,
ANSI/NFPA No. 70.
V - Ap pli ca tion
Energy Recovery Ventilators (ERV) are used with units
equipped with a return damper assembly. These wheels
conserve energy by mixing warmer air with cooler air in the
following manner:
Re cov ery Mode
The Recovery Mode is accomplished by two blowers
providing continuous exhaust of stale indoor air and
replacement by equal amount of outdoor air. Energy
recovery is achieved by slowly rotating the Energy
Energy recovery COMPONENT
certified to the AHRI Air-to-Air
E n e r g y R e co ve r y V e n t i l at i o n
Equipment Certification Program in
accordance with AHRI Standard
1060-2000. Actual performance in
packaged equipment may vary.
PAGE 1
INSTALLATION INSTRUCTIONS
Recovery Wheel (ERW) within the cassette frame work. In
winter, the ERW adsorbs heat and moisture from the
exhaust air stream during one half of a complete rotation
and gives them back to the cold, drier intake air supply
during the other half rotation. In summer, the process is
automatically reversed. Heat and moisture are absorbed
from incoming fresh air supply and transferred to the
exhaust air stream. This process allows outdoor air
ventilation rates to be increased by factors of three or more
without additional energy penalty or increase in size of
heating or air conditioning systems.
VI - Rig ging Unit For Lift ing
1. Maximum weight of unit is — 410 Lbs. (Crated)

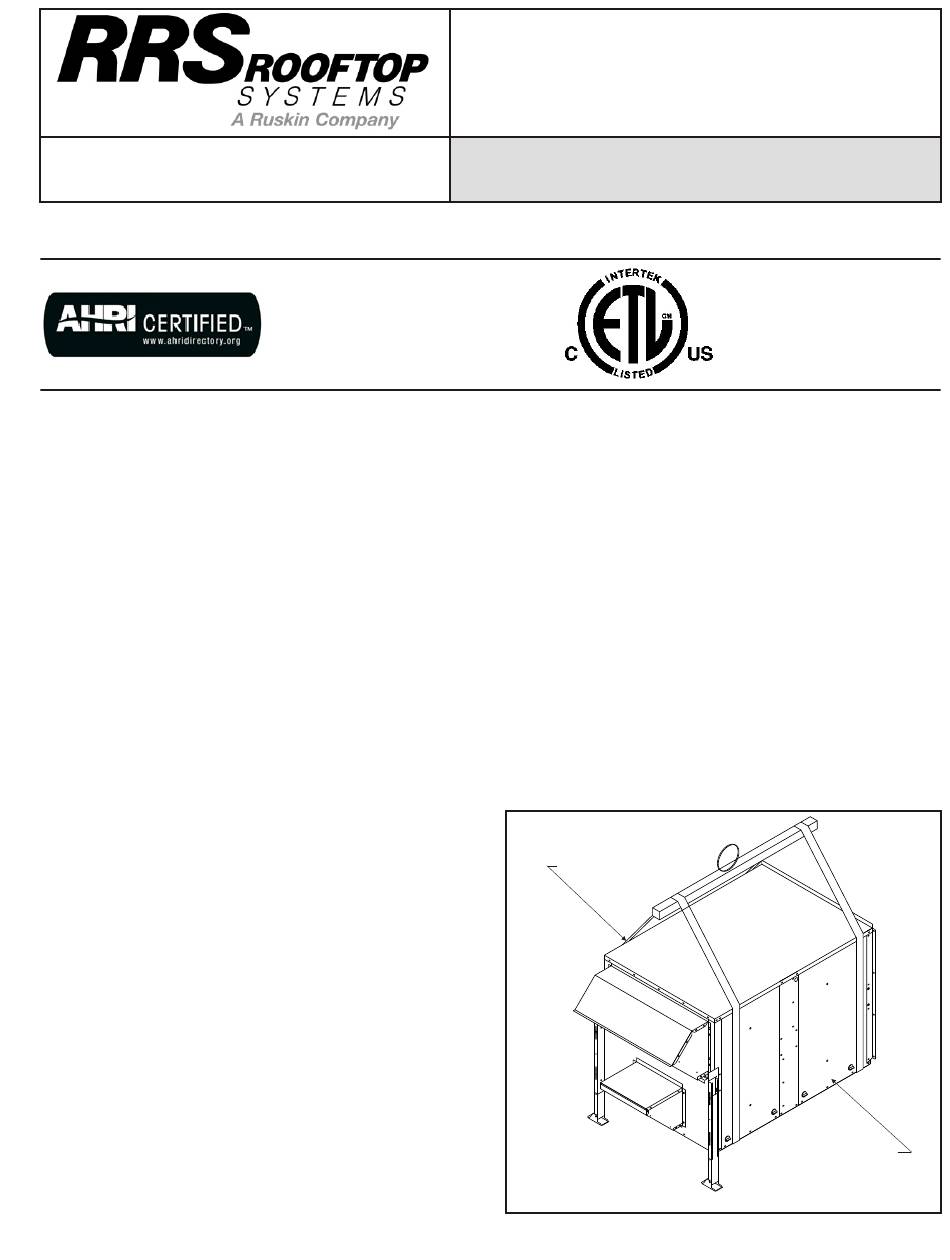

2. Remove crating. Then remove access panel to
retrieve bag assembly. See Figure 1. Replace access
panel.
3. All panels must be in place for rigging.
4. Lifting straps are needed to lift the unit as shown in
Figure 1.
LIFTING STRAP
R11A-10TDW
JULY 24, 2008
SUPERSEDES 10-09-06
ETL Certified per UL 1995
and CSA 22.2
ACCESS PANEL
Figure 1
