INSTALLATION INSTRUCTIONS FOR ENERGY RECOVERY VENTILATOR (PIVOTING)
USED WITH TRANE ROOFTOP UNIT MODELS YCD/TCD 15 TO 20 TON UNITS
I - SHIP PING AND PACK ING LIST
Package 1 of 1 contains:
1 - Energy Recovery Wheel Assembly
1 - Outdoor Fresh Air Hood with Filter
1 - Outdoor Exhaust Hood with Barometric Damper
1 - Platform Support Rail
2 - Side Filler Panels
1 - Top Filler Panel
1 - Box Assembly
a) Gasketing.
b) Wiring harness
c) Hardware for attachment to economizer.
II - SHIP PING DAM AGE
Check unit for shipping damage. Receiving party should
contact last carrier immediately if shipping damage is
found.
III - GEN ERAL
These instructions are intended as a general guide and do
not supersede local codes in any way. Authorities having
jurisdiction should be consulted before installation.
IV - RE QUIRE MENTS
When installed, the unit must be electrically wired and
grounded in accordance with local codes or, in the
absence of local codes, with the current National Electric
Code, ANSI/NFPA No. 70.
V - AP PLI CA TION
Energy Recovery Ventilators (ERV) are used with 15 to 20
ton rooftop units. These wheels conserve energy by mixing
warmer air with cooler air in the following manner:
Re cov ery Ven ti la tor Mode
The Recovery Ventilator mode is accomplished by two
blowers providing continuous exhaust of stale indoor air
and replacement by equal amount of outdoor air. Energy
recovery is achieved by slowly rotating the energy
recovery wheel within the cassette frame work. In winter,
the wheel adsorbs heat and moisture from the exhaust air
stream during one half of a complete rotation and gives
them back to the cold, drier intake air supply during the
other half rotation. In summer, the process is automatically
Energy recovery COMPONENT
certified to the AHRI Air-to-Air
E n e r g y R e co ve r y V e n t i l at i o n
Equipment Certification Program in
accordance with AHRI Standard
1060-2000. Actual performance in
packaged equipment may vary.
PAGE 1
INSTALLATION INSTRUCTIONS
reversed. Heat and moisture are absorbed from incoming
fresh air supply and transferred to the exhaust air stream.
This process allows outdoor air ventilation rates to be
increased by factors of three or more without additional
energy penalty or increase in size of heating or air
conditioning systems.
VI - RIG GING UNIT FOR LIFT ING
1. Maximum weight of unit is —- 900 Lbs (crated).
2. Remove crating. Then remove access panel to
retrieve box assembly. See Figure 1. Replace access
panel.
3. All panels must be in place for rigging.
4. Lifting lugs are supplied with the unit. Loosen machine
bolts and rotate lifting lug as shown in Figure 1.
LIFTING LUGS (4)
VII - IN STAL LA TION
Note: The ERV unit is equipped with a support block
that must be removed to allow the unit to change
operating modes. This block may cause damage
to system if not removed.
P28A-10TDW
MAY 11, 2005
Patent# 5,548,970
ETL Certified per UL 1995
and CSA 22.2
ACCESS PANEL

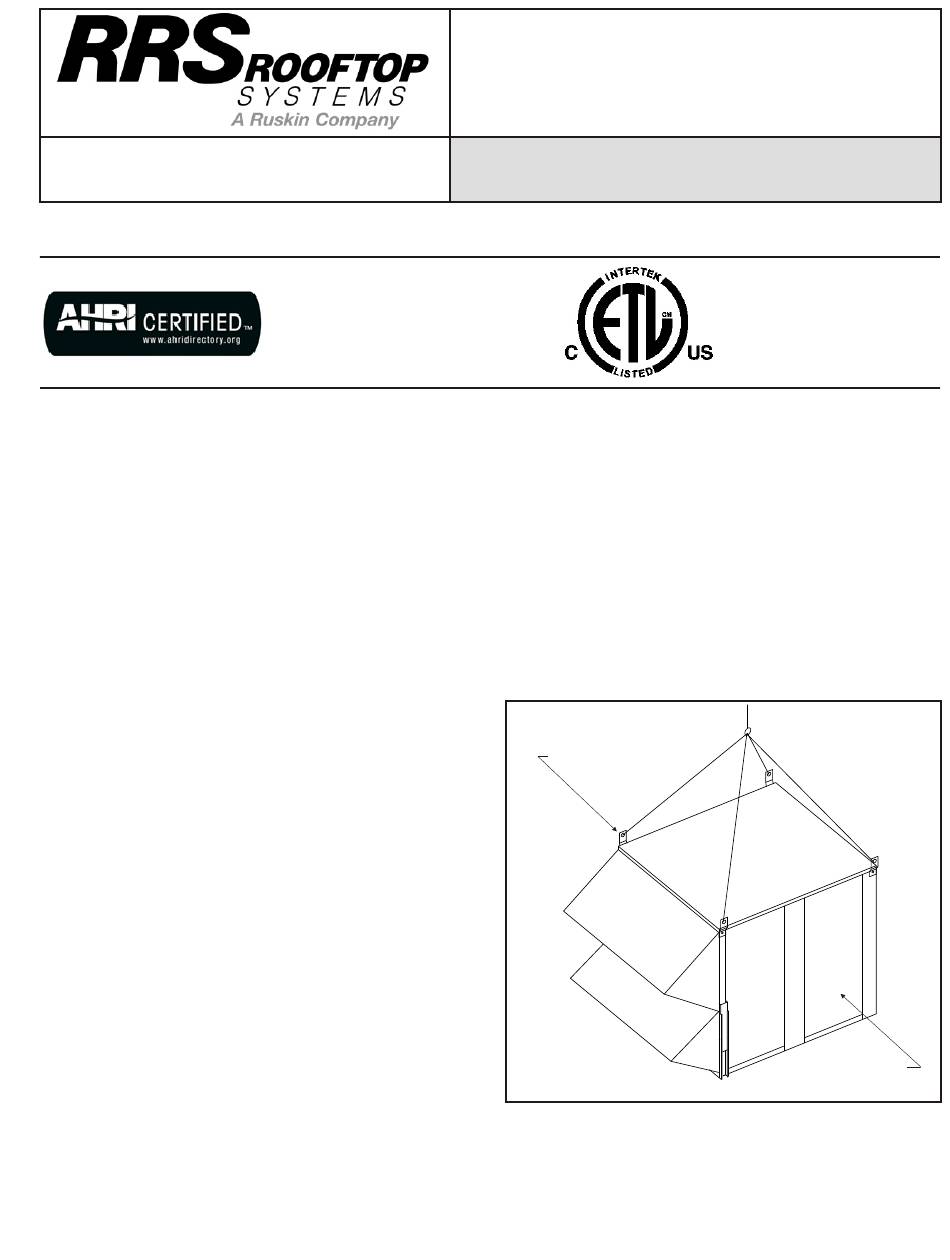

Figure 1
