ACP OmniSWD User Manual

Shortwave diathermy system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

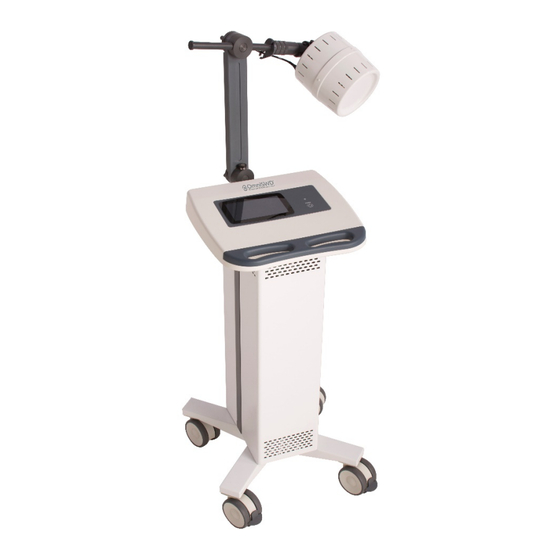

OmniSWD
Shortwave Diathermy System
User Manual
Issued 08.04.2020
Part No. 2903030M Rev 7
This manual and all content therein is owned exclusively by Accelerated Care Plus ("ACP") and is protected by copyright. This manual or any
portion thereof may not be photocopied, reproduced or translated to another language without the express prior written consent of ACP. This
manual may only be used by entities that have purchased the equipment or have implemented the ACP program and are covered by an executed
lease agreement. This manual may not be used for any other purpose.
Any additional copies of the Manual shall be ordered from ACP. No changes or modifications shall be made to the Manual without prior review
and written authorization from ACP. No authorization is given to market, sell, disclose, or exploit this Manual except as for purposes of using the
Equipment as contemplated by the Lease Agreement.
ACCELERATED CARE PLUS MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MANUAL, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Accelerated
Care Plus shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance
or use of this Manual.
The information contained in this document is subject to change without notice.
COPYRIGHT © 2019-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OmniSWD and is the answer not in the manual?

Questions and answers

Related Manuals for ACP OmniSWD

Summary of Contents for ACP OmniSWD

  • Page 1 ACP. This manual may only be used by entities that have purchased the equipment or have implemented the ACP program and are covered by an executed lease agreement.
  • Page 2 ACP is internationally recognized for its contribution to research in the development of medical applications for therapeutic rehabilitation. The Company sponsors and conducts research at leading health care institutions and major universities throughout the world.

  • Page 3: Symbols On The Product

    ® OMNISWD USER MANUAL SYMBOLS ON THE PRODUCT Symbol Used for Symbol Used for Type BF medical device per: Serial number IEC 60601 Date of manufacture Manufacturer Caution, consult Caution, electrical precautions accompanying documents CE mark of confidence Classification against water...

  • Page 4: Table Of Contents

    INFECTION CONTROL EQUIPMENT AND PRINCIPLES OF USE ............12 Definitions ............................12 Universal Precautions - Body Substance Isolation ................12 ® Cleaning / Disinfecting of the OmniSWD ..................12 Cleaning and Low Level Disinfection ....................13 Intermediate Level Disinfection ......................13 Use of Barriers ..........................
  • Page 5 ® OMNISWD USER MANUAL ..................RETURN DEFECTIVE EQUIPMENT .....31 COPYRIGHT © 2019-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...

  • Page 6: Diathermy Indications & Contraindications

    • Decreases joint stiffness • Relieves muscle spasm • Increases local blood flow OmniSWD Shortwave Diathermy system is indicated for use in the following conditions or applications: • Disorders of the musculoskeletal system Muscle spasm Joint stiffness Joint contractures •...

  • Page 7: Contraindications

    ® OMNISWD USER MANUAL Contraindications • Do not apply shortwave diathermy if the patient does not understand the potential risks. • Do not apply shortwave diathermy if the patient is not able to cooperate with the operator in maintaining the proper position and in reporting the presence of a heating sensation which is the only indication of an adequate or excessive dose.

  • Page 8: Diathermy Warnings & Precautions

    ® OMNISWD USER MANUAL DIATHERMY WARNINGS & PRECAUTIONS CAUTION: Federal law restricts this device for sale or use by, or on the order of, a Practitioner licensed by the laws of the state in which he/she practices to use or order the use of the device.
  • Page 9 • All hearing aids should be removed during shortwave diathermy treatment. • ® Do not turn on the output of the OmniSWD until the head (Drum) is properly placed above/over the treatment area. • Caution should be used when applying thermal shortwave over areas of body which lack normal sensation.

  • Page 10: Precautions

    • Use only ACP specified accessories and/or supplies with ACP devices. Do not use any power cords, or power supplies, other than the ones provided or specified for this device. Use of any other power supply could seriously damage the device and will void the warranty.

  • Page 11: The Omniswd

    DO NOT CONNECT THE UNIT TO YOUR AC SUPPLY. The AC supply must be capable of providing .75A (220-240V 50/60Hz) or 1.5A (100-120V 50/60Hz). Connect the ® AC plug to a suitable socket. The OmniSWD is now ready for use. Introduction In 1890, Darsenval first applied high frequency currents therapeutically.

  • Page 12: Controls And Functions

    Controls and Functions Switch on the base of the stand ® FIGURE 1 - OmniSWD - Front Panel The letter associated with each control or indicator in this section corresponds to the labeling in FIGURE 1. A. Mains AC Power ON/OFF switch .

  • Page 13: Treatment Guidelines

    ® OMNISWD USER MANUAL TREATMENT GUIDELINES Inductive Shortwave A coiled conductor is placed in the drum inductive applicator which is usually in the shape of a drum. The current flowing through the coils produces a magnetic field at right angles to the alignment of the coils.

  • Page 14: Depth Of Penetration

    AVERAGE POWER (WATTS) = PEAK POWER (WATTS) x DUTY FACTOR DUTY FACTOR = PULSE RATE (PPS) x PULSE DURATION (µsec) 64W = 200 W x 800 PPS x 400 µsec ® PSWD DOSE WITH OmniSWD CHART FOR A 15 MINUTE TREATMENT: PULSE DURATION AVERAGE POWER IN WATTS (W) EFFECT 400 µSec...

  • Page 15: Infection Control Equipment And Principles Of Use

    , make certain that the machine is OFF and that the plug has been removed from the wall socket. Periodically clean the outer case, drum inductive applicator and cables with ACP approved infection control products. Use of other cleaning solutions or disinfectants may damage the finish of the outer case. Care ®...

  • Page 16: Cleaning And Low Level Disinfection

    After each use, clean common contact surfaces, such as control panel and diathermy arm and head, with ACP germicidal wipes. • With a second ACP germicidal cloth, wipe again leaving surfaces wet for at least 5 minutes. Allow the surface to air dry before patient use. •...

  • Page 17: Use Of Barriers

    8. Perform shortwave treatment. 9. After treatment, wash hands, don new gloves and remove plastic ® barrier film from OmniSWD unit and discard. 10. Carefully remove plastic drum inductive applicator cover in an inside-out manner, ensuring the outside of the plastic cover does not come in contact with the drum inductive applicator.

  • Page 18: Modes Of Operation

    (W/kg). ACP has performed testing on human subjects in the triceps Surae (Gastrocnemius) muscle group using to determine the rate of heating and establish dosage for raising the tissue temperature by 1, 2, or 4 degrees C. This also allowed...
  • Page 19 Dosage ® Proper dosage is most important for effective application of therapy. Dosage levels on the OmniSWD established based on the pulse duration and pulse rate, i.e.: the greater the rate and duration, the more energy produced and the greater the thermal effect. The output peak power is fixed at 200 watts. Schliephake and Lehman developed the following dosage pattern: Dose - Variable (VAR): Barely detectable warmth (pulse duration [65 µsec] and rate [100-400pps]) for pain and...

  • Page 20: Operating Instructions

    Numbers in circles in the following operating instructions refer to the front panel drawing FIGURE below. ® 1. Connect the OmniSWD to a suitable AC outlet, and energize the unit at the Mains AC Power switch. This is a two position rocker switch, up for ON, down for OFF. The switch is located on the bottom back portion of the device base.

  • Page 21: User Interface

    USER MANUAL User Interface ® The OmniSWD utilizes a touch screen to activate selections with the touch of a finger. All screens and functions can be accessed from this ‘Home’ screen. The “Home” icon in the top left corner of all other screens will always return to this screen.

  • Page 22: Setup Procedure For Drum Inductive Applicator

    ACP Contact Information On the Home Screen is an ACP contact information button that contains serial number, software version ACP Customer Support, ACP Clinical Question and Support phone number and email address, ACP website and physical mailing address.

  • Page 23: Safety Features / Error Messages

    Treatment will be prevented from starting unless a functioning applicator/cable combination is plugged in. If it persists, then contact ACP Customer Support at (1-800-350-1100). System Fault Warning This pop-up window appears if the machine detects a communications error between its two processors.

  • Page 24: Output Tuning Bar

    ® OMNISWD USER MANUAL Device Output Tuning Bar A tuning bar feature exists on the device. However, the appearance of the tuning bar on the treatment run screen, is optional. To turn off the tuning bar, enter the Systems Settings menu from the Home screen.

  • Page 25: Output Tuning Is Required (>20% Variance)

    Serial Number, Trade Name / Model Number, Bootloader Version, Display version, Systems version, WiFi Module Version, Last calibration, utilization Tier, ACP Customer Support, and the ACP Website address. COPYRIGHT © 2019-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...

  • Page 26: Drum Removal And Reinstallation

    ® OMNISWD USER MANUAL Drum Inductive Applicator Removal It may be necessary to remove the Drum Applicator from the articulating arm to apply to a patient lying in a bed. To remove the Drum Applicator, first loosen the locking collar turning counter-clockwise until you can see the white nylon washer as shown.

  • Page 27: Troubleshooting

    ACP Customer Support For repair or service of ACP products and accessories, please call (800) 350-1100 and follow the prompts. Normal hours of operation are 6:00am to 5:00pm Pacific Standard Time. After hours, please leave a message and your call will be returned during the next scheduled workday.

  • Page 28: Certificate Of Conformance Inspection And Good Operating Practice

    Certificate of Conformance Inspection and Good Operating Practice Certificate of Conformance Inspection is recommended to be performed at least biennially (every two years). This should include at minimum a safety inspection and to verify proper operation of your OmniSWD •...

  • Page 29: Technical Specifications

    ® OMNISWD USER MANUAL TECHNICAL SPECIFICATIONS ® Technical Data - OmniSWD GENERAL: Power Supply: 120VAC 50/60Hz Power consumption: 250W max Externally Replaceable 2 x T 2A 5 x 20mm, 250V 2 ampere Fuses: Interrupting Rating: 35A @ 250Vac Operating Speed: 0.06 seconds at 35A Size: Approx.

  • Page 30: Diagrammatic Representation Of Pulse Trains

    ® OMNISWD USER MANUAL Diagrammatic Representation of Pulse Trains 20 MICROSECOND (µSec) PULSES - 800 PULSES PER SECOND (PPS) 65 µSec PULSES - 400 PPS 200 µSec PULSES - 200 PPS PULSE PULSE “ON” “OFF” PERIOD PERIOD 400 µSec PULSES - 100 PPS CONTINUOUS TRAIN OF PULSES: PULSES CONTAIN 27.12 MHz SINUSOIDAL R.F.

  • Page 31: Omniswd Average Output Power

    ® OMNISWD USER MANUAL ® OmniSWD Average Output Power PULSE DURATION AVERAGE POWER IN WATTS (W) EFFECT 400 µSec 4.0W 8.0W 16.0W 32.0W 48.0W 64.0W 200 µSec 2.0W 4.0W 8.0W 16.0W 24.0W 32.0W 100 µSec 1.0W 2.0W 4.0W 8.0W 12.0W 16.0W...

  • Page 32: Omniswd Standard And Optional Accessories

    ® OMNISWD USER MANUAL ® OmniSWD STANDARD AND OPTIONAL ACCESSORIES ITEM ITEM NO. DESCRIPTION ® OmniSWD Shortware Diathermy System 200 Watt peak power Shortwave Diathermy 1903030 with Delta T control Shipping Weight: 101 lbs. ITEM ITEM NO. DESCRIPTION ® OmniSWD...

  • Page 33: Standard Limited Product Warranty

    Standard Limited Product Warranty. Buyer is responsible for shipping cost associated with sending the Equipment to the ACP Service Center. ACP shall ship Equipment to Buyer after repair at no cost to the Buyer provided repair is deemed to be under warranty.
  • Page 34 ACP is not responsible for any loss or damage to the Equipment prior to receipt at the ACP Service Center. Equipment returned for warranty service must be shipped complete with all accessories (except for manuals), in its original packing or equivalent so as not to be damaged while in transit.
