ACP OMNIVERSA User Manual

Ultrasound / electrotherapy system
Hide thumbs
Table of Contents

Advertisement

Quick Links

®

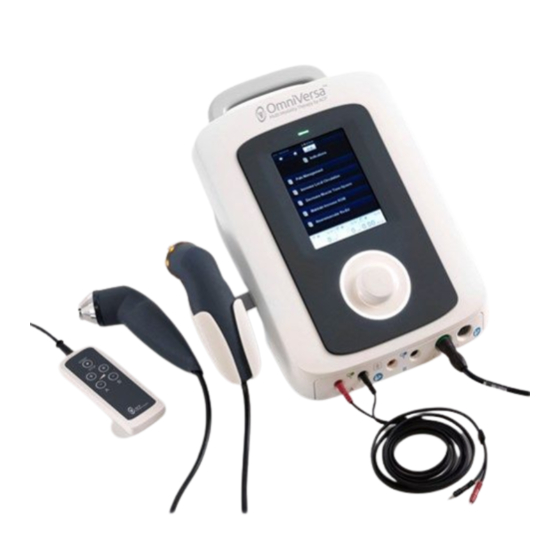

OMNIVERSA
Ultrasound / Electrotherapy System
User Manual
ISSUED 07.22.2020
PART NO. 11486 290FXF REV 3
This manual and all content therein is owned exclusively by Accelerated Care Plus ("ACP") and is protected by
copyright. This manual or any portion thereof may not be photocopied, reproduced or translated to another language
without the express prior written consent of ACP. This manual may only be used by entities that have purchased the
equipment or have implemented the ACP program and are covered by an executed lease agreement. This manual
may not be used for any other purpose.
Any additional copies of the Manual shall be ordered from ACP. No changes or modifications shall be made to the
Manual without prior review and written authorization from ACP. No authorization is given to market, sell, disclose,
or exploit this Manual except as for purposes of using the Equipment as contemplated by the Lease Agreement.
ACCELERATED CARE PLUS MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MANUAL,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. Accelerated Care Plus shall not be liable for errors contained herein or
for incidental or consequential damages in connection with the furnishing, performance or use of this Manual. The
information contained in this document is subject to change without notice.
COPYRIGHT © 2017-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMNIVERSA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACP OMNIVERSA

Summary of Contents for ACP OMNIVERSA

  • Page 1 This manual or any portion thereof may not be photocopied, reproduced or translated to another language without the express prior written consent of ACP. This manual may only be used by entities that have purchased the equipment or have implemented the ACP program and are covered by an executed lease agreement. This manual may not be used for any other purpose.
  • Page 2 ACP is internationally recognized for its contribution to research in the development of medical applications for therapeutic rehabilitation. The Company sponsors and conducts research at leading health care institutions and major universities throughout the world.

  • Page 3: Symbols On The Product

    ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 5 - SYMBOLS ON THE PRODUCT Symbol Used for Symbol Used for Type BF medical device per: Serial number IEC 60601 Date of manufacture Manufacturer Caution, consult accompanying Caution, electrical precautions documents Remote Control...

  • Page 4: Table Of Contents

    Treatment Preparation ............................52 Definitions ................................ 60 Universal Precautions – Body Substance Isolation ..................60 Cleaning / Disinfecting of the OmniVersa ....................... 60 Cleaning and Low Level Disinfection ......................60 Intermediate Level Disinfection and Barriers ....................60 Use of Barriers – Intermediate Level Disinfection ................... 62 OMNIVERSA PROGRAM MENU - ELECTROTHERAPY ................

  • Page 5: Electrotherapy Indications & Contraindications

    Please notice that Accelerated Care Plus cannot provide medical advice. If you have specific medical questions, please contact your healthcare professional. Indications The OmniVersa is indicated for:  Relaxation of muscle spasms ...

  • Page 6: Electrotherapy Warnings & Precautions

    ® - 8 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL ELECTROTHERAPY WARNINGS & PRECAUTIONS CAUTION: Federal law restricts this device for sale or use by, or on the order of, a Practitioner licensed by the laws of the state in which he/she practices to use or order the use of the device.

  • Page 7: Precautions

    Use this device only with the leads, electrodes, and accessories recommended by the manufacturer. Use only ACP specified accessories and/or supplies with ACP devices. Do not use any power cords, or power supplies, other than the ones provided or specified for this device. Use of any other power supply could seriously damage the device and will void the warranty.
  • Page 8 ® - 10 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL  Caution should be used over areas of body where circulation is impaired, or which lack normal sensation. Absent or diminished sensation should be avoided or, if unavoidable, treated with caution. Establishment of acceptable intensity levels for desensitized areas may be related to the intensity levels tolerated on normal skin in opposite or related body parts.

  • Page 9: The Omniversa

    Note: The purpose of this manual is to acquaint you with the OmniVersa operating features and functionality. Please read the manual carefully before attempting to operate the OmniVersa. If questions remain unanswered, contact your ACP sales representative or call 800-350-1100.
  • Page 10 ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL The OmniVersa provides MFAC and LVPC modes with fully adjustable ON and OFF Times and ON and OFF Ramps provides a wide variety of uses for neuro-muscular re-education, treatment of muscle disuse atrophy and muscle spasm reduction programs for innervated muscle.

  • Page 11: Omniversa Controls And Functions

    C - ROTARY SELECTOR DIAL: J - 0.8cm Transducer This is used to increase or decrease outputs, move between Optional transducer for use with the OmniVersa systems selection menus, and maneuver within the graphic user interface. D - OUTPUT CHANNEL A:...

  • Page 12: Power Line Switch On And Off Positions

     Attachment of a USB-stick used for backing up and restoring Favorite programs and by ACP employees for software updates Power Line Switch ON and OFF positions Note: Unless there is an emergency the Main Power line should be in the ON positon at all times.

  • Page 13: Factory Settings

    ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 15 - Factory Settings The OmniVersa comes with the following factory settings: Screen Brightness 100% Speaker Volume 100% Sleep Mode 3 min. End of Treatment Tone End of Treatment – Duration These default settings are generally suitable for most clinicians. To adjust these default settings, proceed as follows: 1.

  • Page 14: Installation

    Use only ACP specified accessories and/or supplies with ACP devices. Do not use any power cords, or power supplies, other than the ones provided or specified for this device. Use of any other power supply could seriously damage the device and will void the warranty.

  • Page 15: Navigation Icons

    Store therapy settings or a programmed sequential protocol in a favorite. Delete Favorite. Accept the selected protocol. Accept the selected option. Emergency Stop. Stop treatment on all channels simultaneously. Pause Stop ACP Contact Information COPYRIGHT © 2017-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...

  • Page 16: Operational Flow

    ® - 18 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Operational Flow [A] DEVICE name [B] NAVIGATION Level – On some screens a white box will display the page number and total pages of an area i.e. 1/4. [C] BATTERY INDICATOR –...

  • Page 17: Electrotherapy Menu Navigation

    ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 19 - Electrotherapy Menu Navigation Electrotherapy Home The Home menu gives access to all of the systems therapeutic modalities. Select the desired modality by touching its button. Select “Electrotherapy” and the Electrotherapy menu appears.
  • Page 18 ® - 20 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Electrotherapy Indications Protocol List Select the desired protocol by touching the button. Each protocol has an embedded clinical library of reference material and a library of electrode placement illustrations accessed by touching the information button.
  • Page 19  A complete list of all program settings and ranges can be found in the OmniVersa Program section of the operations manual COPYRIGHT © 2017-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
  • Page 20 ® - 22 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Setting Output Intensity Output intensity can only be set when the selected channel tab(s) are illuminated orange. Screen text saying “Ready to set the output” appears during initial setup. As soon as intensity is increased the...

  • Page 21: End Of Treatment: Qr Code

    ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 23 - END OF TREATMENT: QR CODE At the end of treatment a QR code Pop-up can be scanned to record the treatment into the Electronic Medical Record via the ACPlus iOS application. .
  • Page 22 Some parameters may not be changed during active treatment.  A complete list of all program settings and ranges can be found in the OmniVersa Program section of the operations manual. COPYRIGHT © 2017-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
  • Page 23 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 25 - Setting Output Intensity Output intensity can only be set when the selected channel tab(s) are illuminated orange. Screen text saying “Ready to set the output” appears during initial setup. As soon as intensity is increased the START and STOP buttons appear.
  • Page 24 ® - 26 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Pausing a Treatment As soon as the Start button is pressed the PAUSE and STOP button appear. To pause a treatment, touch the PAUSE button. A two bar orange PAUSE Icon will appear at the top of in the channel tab.

  • Page 25: Ultrasound Indications & Contraindications

    ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 27 - ULTRASOUND INDICATIONS & CONTRAINDICATIONS CAUTION: Federal law restricts this device for sale or use by, or on the order of, a Practitioner licensed by the laws of the state in which he/she practices to use or order the use of the device.

  • Page 26: Ultrasound Warnings & Precautions

    ® - 28 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL ULTRASOUND WARNINGS & PRECAUTIONS CAUTION: Federal law restricts this device for sale or use by, or on the order of, a Practitioner licensed by the laws of the state in which he/she practices to use or order the use of the device.

  • Page 27: Precautions

     Use only ACP specified accessories and/or supplies with ACP devices. Do not use any power cords, or power supplies, other than the ones provided or specified for this device. Use of any other power supply could seriously damage the device and will void the warranty.

  • Page 28: Ultrasound Menu Navigation

    ® - 30 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Ultrasound Menu Navigation Ultrasound Therapy Home The Home menu gives access to all of the systems therapeutic modalities. Select the desired modality by touching its button. Select “Ultrasound Therapy” and the Ultrasound Therapy menu appears.
  • Page 29 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 31 - Ultrasound Indication Protocols Menu All Ultrasound Indications have menu of Protocols that allow the selection of severity, Post Traumatic – Post Surgical, Sub-Acute and Chronic. Select by touching the desired button.
  • Page 30  A complete list of all program settings and ranges can be found in the OmniVersa Program section of the operations manual. Setting Output Intensity Output intensity can only be set when the Ultrasound channel tab is illuminated orange.
  • Page 31 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 33 - Ultrasound Home Page – Manual Mode Operation The Ultrasound Therapy menu provides access to the ways you can navigate and the Ultrasound Contraindications library.  Indications  Manual Mode  Favorites ...

  • Page 32: Combination Therapy Menu Navigation

    ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL  A complete list of all program settings and ranges can be found in the OmniVersa Program section of the user manual Setting Output Intensity Output intensity can only be set when the Ultrasound channel tab is illuminated orange.
  • Page 33 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 35 - Combination Therapy – Indications Operation The Combination Therapy menu provides access to the ways you can navigate and the Combination Therapy Contraindications library.  Indications  Manual Operation  Favorites ...
  • Page 34 ® - 36 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Combination Therapy Protocol Information The embedded clinical library includes protocol and setup information and with example application illustrations. Use the Rotary Selector Dial to scroll through the pages. Touch the OK button in the navigation bar to proceed to the protocol parameters menu.
  • Page 35 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 37 - Electrotherapy Use Channel B for electrotherapy. Output intensity can be set using the Rotary Selector Dial only when the selected channel tab is illuminated orange. After setting the electrotherapy output intensity press START to begin the treatment.
  • Page 36 ® - 38 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Combination Therapy Manual Mode Menu The manual mode menu provides access to the common Combination Therapy modes of use. Press the box of the desired mode to advance to the ultrasound parameter menu.
  • Page 37 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 39 - Stopping a Combination Therapy Treatment After the treatment is started to stop the treatment press the STOP button. Note: The treatment can also be stopped by pressing the emergency stop icon Pressing this button stops the output on all channels in use.
  • Page 38 ® - 40 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Deleting a Favorite Program To Delete a Favorite Program, follow these few steps  Enter into the selected modality Favorites menu (electrotherapy, ultrasound or combination therapy)  Touch the trashcan icon which will illuminate to white ...
  • Page 39 - 41 - REMOTE CONTROL OPERATION The OmniVersa includes two handheld Remote Controls, one single button Patient Saftey Switch intended for patient use during a treatment and one five button Clinician Hand Control intended for clinician during treatment. Patient Safety Switch...
  • Page 40 OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Remote Control Connected Conformation When the Remote Control is connected to the OmniVersa a visual confirmation will appear saying “Remote Control connected”. To confirm and clear this message press the green check mark.
  • Page 41 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 43 - Clinician Hand Control Operation The Clinician Hand Control can only be used when navigating in two of the Electrotherapy section Indications. The two indications are  Functional Re-Education – Upper Extremity ...
  • Page 42 ® - 44 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Electrotherapy Parameter Adjustment – Clinician Hand Control Modes of Use The Hand Control Protocols provide the clinician with additional control over the following.  Output intensity can be set using either the Clinician Hand Control or the Rotary Selector Dial ...
  • Page 43 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 45 - channels. Output stimulation from Ch. A+B occurs Simultaneously, but Ch. B has a Delayed start. Channel Interactions – Single Channel Operation When a single channel setup (Ch. A or B only) are selected Channel Interactions are as follows.

  • Page 44: Treatment Guidelines

    ® - 46 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL TREATMENT GUIDELINES Introduction to Medium Frequency Currents Medium frequency (MF) currents may be described as electrical currents applied to the body for therapeutic purposes, which fall in the range of 1000 to 10,000 cycles per second (Hz). This is in contrast to low frequency currents (0.1 to 1000 Hz) such as LVPC and high frequency currents (1 million Hz and beyond), which include ultrasound, shortwave and microwave diathermy.

  • Page 45: Electrode Application Techniques

    ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 47 - Electrode Application Techniques The following electrode placement diagrams are a theoretical representation of treatment set-ups using the Omnistim ® Professional. Monopolar, Bipolar and Quadripolar techniques are illustrated. Electrode placement is dependent on the etiology of the condition.
  • Page 46 ® - 48 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL PENS Neuro Re-Education Techniques - Electrode Placement WRIST AND FINGER FLEXION AND EXTENSION WRIST WRIST • EXTENSOR CARPI • FLEXOR CARPI ULNARIS • RADIALIS & • EXTENSOR CARPI ULNARIS •...
  • Page 47 ® OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM - 49 - SHOULDER FLEXION AND EXTENSION POSTERIOR ANTERIOR DELTOID DELTOID BICEPS TRICEPS BRACHII BRACHII Patient may perform therapist-directed exercises and/or functional activities during PENS induced muscle contractions LUMBAR STABILIZATION LEVEL OF CH A...
  • Page 48 ® - 50 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL HIP FLEXION AND EXTENSION GLUTEUS MAXIMUS OR GLUTEUS & HAMSTRINGS • Patient may perform therapist-directed exercises and/or functional activities during PENS induced muscle contractions • Patient needs to be supine with hip extended...
  • Page 49 Do not turn power on, or power-off the Stimulator while electrodes are applied and the patient is connected to the unit.  Use a quality, high conductivity electrode specified by the manufacturer (ACP).  If decreased sensation is suspected, test prior to application of stimulation. Treatment areas with absent or diminished sensation should be avoided or treated with caution.

  • Page 50: Treatment Preparation

    OmniVersa and Omnistim Systems. Any electrodes that have current densities exceeding 2 mA/cm2 may require special attention of the operator.
  • Page 51 Welcome to the Omnisound Pro, the system that redefines therapeutic ultrasound. While conceiving and designing the Omnisound Pro, ACP set out to overcome the limitations of ordinary ultrasound devices. Here are just a few of the functions we developed that make the Omnisound Pro truly the future of ultrasound therapy:...
  • Page 52 ® - 54 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL Pulsed Wave Output Ultrasound devices may also produce pulsed waveforms. These outputs are generally square wave in shape as is the case with the Omnisound. The output of pulsed ultrasound is defined as the average output over one cycle of the carrier, rather than the average over time (time average).
  • Page 53 The absorption coefficient describes the degree of absorption by the tissue and is approximately equal to the frequency in the 1-4MHz range. For this reason, ACP uses both 1.0 and 3.0MHz ultrasonic outputs through its treatment transducer. The use of these two frequencies allows...
  • Page 54 ® - 56 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL greater or less attenuation of the beam, for example, 1.0MHz penetrates approximately 3 times more than 3.0MHz. This may be helpful in selecting intensity and time for ultrasonic therapy applications. Due to this reason, the patient...
  • Page 55 7.. ACP applicators are fully waterproof and may be used with underwater technique for the smaller joints where effective coupling is not possible. The water temperature should be slightly warmer than the target tissue temperature.
  • Page 56 ® - 58 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL 8.. When using ultrasound, a moving head technique is recommended to avoid the buildup of “Hot Spots" or standing waves which might lead to tissue damage. 9.. To start the treatment, supply adequate coupling, apply the transducer to the patient and increase the power. Adjust the output intensity - typically to a range of 0.5W/cm...
  • Page 57 Attach the self-adhesive electrode to the patient’s body. 4. Using the positive wire on Channel B of the OmniVersa connect the Combination Therapy single lead wire positive (red) tip pin into the unit and the other end into the electrode. This will allow the ultrasound applicator to remain as the active electrode.
  • Page 58 ® - 60 - OMNIVERSA ULTRASOUND / ELECTROTHERAPY SYSTEM USER MANUAL 9. Next, press the electrotherapy icon. At the electrotherapy screen set the appropriate parameters and intensity settings. 10. Press Start. 11. Repeat treatment in adjacent areas to fully treat involved tissue, as needed.

  • Page 59: Definitions

    After each use, clean common contact surfaces, such as control panel and lead wires with ACP germicidal wipes.  With a second ACP germicidal cloth, wipe again leaving surfaces wet for at least 5 minutes. Allow the surface to air dry before patient use. ...

  • Page 60: Use Of Barriers - Intermediate Level Disinfection

    10. Remove the plastic sleeve from the lead wire by sliding it toward the electrode. Remove the electrode and discard with the sleeve. 11. Intermediate disinfect the OmniVersa unit prior to the next treatment application. COPYRIGHT © 2017-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...

  • Page 61: Omniversa Program Menu - Electrotherapy

    ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 63 - OMNIVERSA PROGRAM MENU - ELECTROTHERAPY ELECTROTHERAPY INDICATION PROTOCOLS Post Traumatic –Post Surgical Pain Neuromuscular Re-Education HVPC SENSORY PENS UE BIPHASIC HEAD & NECK SENSORY NERVE BLOCK PENS UE TRIPHASIC UPPER EXTREMITY & THORACIC Acute Pain PENS LE TRIPHASIC LOWER EXTREMITY &...
  • Page 62 ® - 64 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL MANUAL MODE WAVEFORMS PENS Throw PENS UE BIPHASIC PENS KICK PENS UE TRIPHASIC IFC-PREMOD PENS LE TRIPHASIC LVPC ASYMMETRICAL BIPHASIC PENS CYCLE LVPC SYMMETRICAL BIPHASIC PENS WALK to RUN MFAC PENS SPRINT...
  • Page 63 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 65 - Pain Control HVPC Sensory Stimulates segmental pain modulation and vasodilation, increasing local circulation. Application of negative polarity over the edematous site has been demonstrated to reduce post-traumatic edema in clinical trials.
  • Page 64 ® - 66 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL TENS-LVPC Sensory This program is used for symptomatic relief of superficial pain from localized dermatome or segmental origin. Duration of relief is typically several hours. Fast onset of relief usually within 15-20 minutes. Target tissue is superficial.
  • Page 65 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 67 - IFC - PREMOD Sensory Motor (Cont.) User Adjustable Default (unit) Parameter Parameter Name Range (unit) (Y/N) CARRIER FREQ 5.0 (kHz) 5.0 (kHz) 0.0…200 (Hz) BURST FREQ MODULATION ON, OFF RATE SCAN...
  • Page 66 ® - 68 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL TENS-LVPC Motor Application of this program will provide symptomatic relief of superficial pain with inflammation, or pain of a generalized or multi-segmental nature. Duration of relief is typically from 2 to 8 hours. Slow onset of relief is usually within 15 minutes to 1 hour.
  • Page 67 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 69 - IFC - PREMOD Motor Sensory, Subprogram 2 User Parameter Adjustable Adjustable Default (unit) Name Range (unit) Parameter (Y/N) CARRIER FREQ 5.0 (kHz) BURST FREQUENCY 2.0 (Hz) BURST RATE SCAN 50 (%)
  • Page 68 ® - 70 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL IFC – PREMOD Sequential This protocol provides symptomatic relief of superficial and deep pain and pain of local, generalized single or multi-segmental nature. Combines sensory and motor stimulation in 3 sequences of 4 Hz, 15 Hz and 100 Hz repeated every 15 seconds.
  • Page 69 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 71 - IFC - PREMOD Sequential Third Sequence Adjustable Default Parameter Parameter Name Adjustable Range (unit) (unit) (Y/N) CARRIER FREQ 5.0 (kHz) BURST FREQ RATE SCAN TIME RATE SCAN 20 (%) VECTOR Off, Slow 45, Fast 45, Slow 90, Fast 90...
  • Page 70 ® - 72 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL Neuro Muscular Re-Education UE BIPHASIC PENS This program is used to re-educate upper extremity agonist - antagonist muscle pairs to enhance reciprocal and fast movement. It is called biphasic because the agonist fires first followed by the antagonist. Due to reciprocating action of the muscle groups there is no third phase.
  • Page 71 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 73 - UE TRIPHASIC PENS This program is used to re-educate upper extremity agonist - antagonist muscle pairs where fine motor control and positioning is required. It is called Triphasic because the agonist fires first, followed by the antagonist followed by a small burst of agonist muscle to slow down the antagonist and position the joint.
  • Page 72 ® - 74 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL LE TRIPHASIC PENS This program is used to re-educate lower extremity agonist - antagonist muscle pairs where fine motor control and positioning is required. It is called Triphasic because the agonist fires first, followed by the antagonist followed by a small burst of agonist muscle to slow down the antagonist and position the joint.
  • Page 73 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 75 - Treatment of Muscle Disuse Atrophy MFAC LARGE MUSCLE Program used for muscle re-education and treatment of muscle disuse atrophy. Activation of muscle with electrical stimulation at a high intensity for a short time with long “ON/OFF” ramps reduces atrophy. The patient should participate to the extent possible by contracting during the stimulation “ON”...
  • Page 74 ® - 76 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL LVPC Small Muscle Asymmetric Biphasic or Medium Muscle - Symmetric Biphasic Program used for strength development and treatment of muscle disuse atrophy. Activation of muscle with electrical stimulation at a high intensity for a short time with long “ON/OFF” ramps reduces atrophy. The patient should participate to the extent possible by contracting during the stimulation “ON”...
  • Page 75 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 77 - PENS WALK to RUN This protocol simulates muscle activation in reciprocal patterns (ie. walking, jogging, and running). Strides or revolutions per minute (RPMs) range from 10 to 120. Walk Speed: Approximately 40 (Slow) to 88 (Fast) represent various walking speeds.
  • Page 76 ® - 78 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL PENS SKATE This protocol simulates skating and can be used for lower extremity neuromuscular re-education in a lateral (side to side) movement pattern. Positioning – Early rehab: Have athlete lie on training table with hips and knees flexed, or legs over table.
  • Page 77 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 79 - PENS KICK Kick (step – plant – kick ball) - This protocol simulates ball kicking and is an aggressive late rehab or sports specific protocol for neuromuscular re-education. Positioning: Have athlete stand upright in kicking position, shift weight to one leg, flex then extend kicking leg.
  • Page 78 ® - 80 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL MFAC – LVPC HAND CONTROL MANUAL Program provides for active assisted treatment to develop functional movement of superficial and deep muscle. Activation of muscle with electrical stimulation occurs during functional movement when the therapist presses and holds the start button.
  • Page 79 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 81 - INCREASE LOCAL CIRCULATION HVPC Sensory Increases local circulation by stimulating vasodilation. Application of negative polarity over the edematous site has been demonstrated to reduce post-traumatic edema in clinical trials. In addition, if pain is present, can reduce it via segmental pain modulation mechanisms.
  • Page 80 ® - 82 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL REDUCE MUSCLE SPASM Motor Nerve Block This protocol provides symptomatic relief of superficial and deep muscle spasm and hypertonicity. It blocks motor nerves by causing a temporary nerve block through reactive depolarization (Conduction block) of the motor signal on its way to the muscle.
  • Page 81 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 83 - MFAC Tone - Spasm This program provides for stimulation of the spastic muscle. The short rest time exhausts the muscle metabolism reducing spasm- tone. Slow ramps decrease the potential to trigger spasm. Intensity should be set to elicit a grade 2 to 3 muscle contraction Treatment time can be reduced based on muscle fatigue and inhibition of spasticity.

  • Page 82: Stimulation Therapy Modes

    ® - 84 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL STIMULATION THERAPY MODES Interferential Current Therapy (IFC) The new Webster Encyclopedia Dictionary of the RATE SCAN ON OR OFF English Language defines interference as “the 2500 or 5000 Hz Pulsed at 100Hz...
  • Page 83 Should the clinician desire rapid analgesia and maximum comfort in both the surface and deep tissues, continuous non-modulated MF currents may be used with the OmniVersa, which will produce strong nerve blocks (Wedensky Inhibition) throughout the entire treatment field. This is often useful in the mobilization of joints, prior to transverse friction massage, or for relieving acute pain.
  • Page 84 Gradually increase intensity to maximum patient tolerance during each contraction. The intensity should be increased to produce at least 50 to 80% of Maximum Voluntary Contraction (MVC). Place ACP Reusable Electrodes in a Bipolar or Quadripolar pattern on the muscle(s) being stimulated. The treatment should be approximately 15 minutes duration 3 to 4 times a week.
  • Page 85 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 87 - Timing Diagrams ON - OFF TIME: On time adjustable from 0 – 30 seconds, off time adjustable from 0 - 199 seconds. CHANNEL TIMING: Simultaneous, alternate or delayed channels. DELAY MODE: Adjustable from 0-9.9 seconds.
  • Page 86 ® - 88 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL Parameters:  Carrier Frequency, expressed in Hertz (Hz), is the sinusoidal frequency of the cycles with in the burst  Burst Frequency, expressed in Hertz (Hz), the current is delivered in packages or “Burst” of sinusoidal waves, it is analogous to the pulse rate in the LVPC.
  • Page 87 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 89 - Low Voltage Pulsed Currents (Biphasic) Asymmetrical, Symmetrical and Alternating Asymmetrical Biphasic The biphasic pulsed current family of waveforms are often used in TENS (Transcutaneous Electrical Nerve Stimulation) and NMES applications. These waveforms are characterized by variable phase duration and variable pulse frequency.

  • Page 88: Omniversa Program Menu - Ultrasound

    ® - 90 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL OMNIVERSA PROGRAM MENU - ULTRASOUND ULTRASOUND THERAPY INDICATIONS Pain POST TRAUMATIC - POST SURGICAL SUB-ACUTE CHRONIC Increase Local Circulation POST TRAUMATIC - POST SURGICAL SUB-ACUTE CHRONIC Decrease Muscle Tone -Spasm ACUTE...
  • Page 89 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 91 - Decrease Chronic Pain and Muscle Tone-Spasm - Increase Local Circulation This protocol uses a 2 C temperature increase to increase the tissue metabolic rate and provide moderate heating. It is used to increase circulation in chronic cases to provide absorption of chronic inflammatory components for pain management and chronic muscle tone and spasm.

  • Page 90: Omniversa Program Menu - Combination Therapy

    ® - 92 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL OMNIVERSA PROGRAM MENU - COMBINATION THERAPY COMBINATION THERAPY INDICATIONS Pain POST TRAUMATIC - POST SURGICAL ACUTE CHRONIC Increase Local Circulation HVPC SENSORY Decrease Muscle Tone - Spasm PREMOD MOTOR Combination Therapy Manual Mode HVPC Waveform –...
  • Page 91 ® OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL - 93 - Combo: Acute Pain Premod Sensory This protocol combines subthermal therapeutic ultrasound with premodulated (PREMOD) current at a sensory (100 Hz) burst frequency for 1) pain reduction and 2) increase local circulation to targeted tissue area. Sensory stimulation stimulates segmental pain modulation and vasodilation, increasing local circulation.
  • Page 92 ® - 94 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL Combo: Chronic Pain – Decrease Muscle Tone-Spasm Premod Motor This protocol combines therapeutic thermal ultrasound with premodulated (PREMOD) current at a motor (4 Hz) burst frequency, and may relieve pain for up to 8 hours via segmental and systemic pain modulation mechanisms.
  • Page 93 MULTI-MODALITY THERAPY USER MANUAL - 95 - TROUBLESHOOTING The following table lists machine problem symptoms and possible areas to check for the problem causes. If these suggested measures do not correct the machine malfunction, call your ACP Customer Support representative. PROBLEM CAUSE REMEDY ...

  • Page 94: Troubleshooting

     Failure of the stimulator replacement - repair ACP Lead Wire Test ACP lead wires can be tested to assure they are properly conducting current. The Lead Wire Test is found on page 2 of the of System Settings screen.

  • Page 95: Lead Wire Tests

    PASS (green) / FAIL (red) response 4. Move the wires around paying special attention to the wire at the connection to the unit 5. Contact ACP Customer Support (800) 350-1100 to replace lead wires that FAIL Note: The START button must be pressed only after all the connections have been made.
  • Page 96 OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL Ultrasound Optimizer The OmniVersa scans the resonance frequency of the crystal and re-sets the frequency of the units to calibrate with the frequency to the crystal. This is done automatically by the system software when the transducer is put in and when turning on the unit.

  • Page 97: Acp Contact Information

    ACP SERVICE CENTER For repair or service of ACP Products and accessories, please call (800) 350-1100 and follow the prompts. Normal hours of operation are 6:00am to 5:00pm Pacific Standard Time. After hours, please leave a message and a technician will return your call during the next scheduled workday.

  • Page 98: Technical Specifications

    ® - 100 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL TECHNICAL SPECIFICATIONS GENERAL: Dimensions (W x H x D): 10” (24cm) x 5” (12cm) x 12.5” (32cm) Weight (including battery): 6lbs 10oz (3Kg) Operating Power: 100 - 240VAC; 50/60Hz; 100 VA...
  • Page 99 Portable and mobile RF communication systems (e.g. mobile phones) may interfere with medical devices. The OmniVersa COPYRIGHT © 2017-2020, ACCELERATED CARE PLUS CORP., ALL RIGHTS RESERVED...
  • Page 100 Guidelines and manufacturer's declaration – Electromagnetic Interference The OmniVersa is intended for operation in an electromagnetic environment as indicated below. The customer or user of the OmniVersa should ensure that it is operated in such an environment.
  • Page 101 If the measured field strength in the location where the OmniVersa is to be used exceeds the above compliance levels, the OmniVersa should be monitored in order to ensure that it is functioning as intended.
  • Page 102 ® - 104 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL Rated output of transmitter Separation distance according to frequency of transmitter 150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5 GHz d= 1.2 √P d= 0.35 √P d= 0.7 √P...

  • Page 103: Omniversa Standard And Optional Accessories

    69631 Remote Control 19987 Remote Patient Stop 19856 OmniVersa Power Cord, A/C, Hospital Grade 11486 OmniVersa FX2 Professional User Manual *67652 OmniVersa Leatherette Soft Carry Case * This item is an optional accessory and is not included with the unit.
  • Page 104 ® - 106 - OMNIVERSA MULTI-MODALITY THERAPY USER MANUAL Lead Wires and Electrodes ITEM ITEM NO. DESCRIPTION 55405 Lead Wire – Standard Blue & Green (pair) 10120 Lead Wire – Bifurcated Blue & Green (pair) MULTI-USE ELECTRODES 2x2 Multi-use E-stim Electrodes 38155 (4ea/pkg., 10pkg/bx)

  • Page 105: Standard Limited Product Warranty

    Standard Limited Product Warranty. Buyer is responsible for shipping cost associated with sending the Equipment to the ACP Service Center. ACP shall ship Equipment to Buyer after repair at no cost to the Buyer provided repair is deemed to be under warranty.
  • Page 106 ACP is not responsible for any loss or damage to the Equipment prior to receipt at the ACP Service Center. Equipment returned for warranty service must be shipped complete with all accessories (except for manuals), in its original packing or equivalent so as not to be damaged while in transit.
