HDMI interface / 17'' screen
Overview

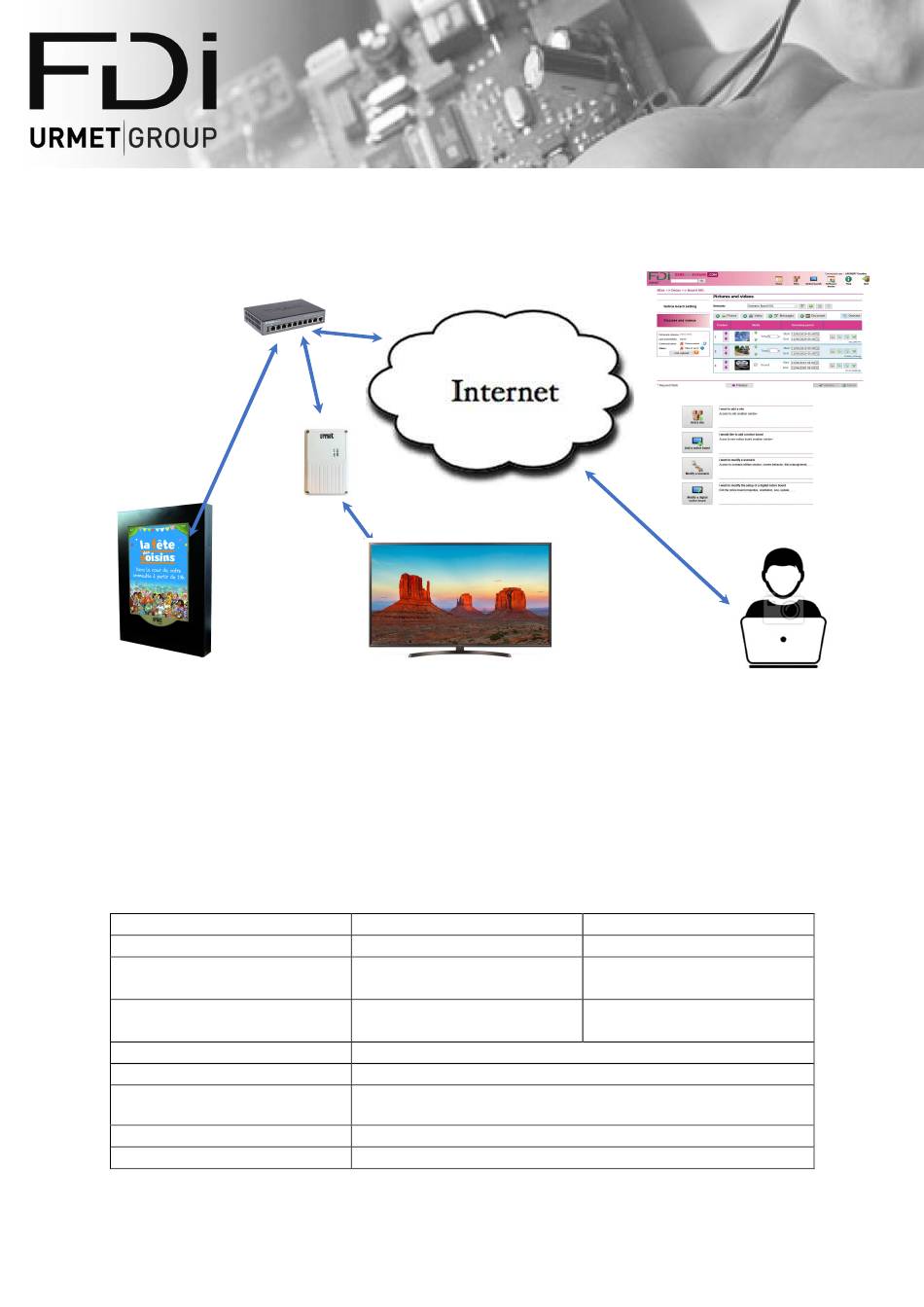

FDI Matelec produces vandal proof digital notice boards and HDMI interfaces for third party screens.
They have been designed to display files set-up on the web software www.ipnoticeboards.com.
The features are the same for both solutions and the HDMI interface can be connected to any tv or
monitor through a HDMI cable.
This install and user guide covers both solutions.
Specifications
PSU
Size
Protection
Max resolution 16/9
Max resolution 4/3
Maxi Size of the media files
(any extension)
Available formats
Memory capacity
17" display
24VDC 5A
540 x 360 x 50
(H x W x D in mm)
Tempered glass
(Plastofloat 66)
1280 x 720 pixels
1280 x 1024 pixels
25 Mo
JPG, JPEG, PNG, AVI, MPEG, WMV
2 Go
Installation guide
HDMI interface
24Vdc (1A) or POE
198 x 120 x 40
(H x W x D in mm)
N/A
50-001-815_A
Advertisement
Table of Contents
Related Manuals for urmet domus FDi FD-500-481
Summary of Contents for urmet domus FDi FD-500-481
- Page 1 Installation guide HDMI interface / 17’’ screen Overview FDI Matelec produces vandal proof digital notice boards and HDMI interfaces for third party screens. They have been designed to display files set-up on the web software www.ipnoticeboards.com. The features are the same for both solutions and the HDMI interface can be connected to any tv or monitor through a HDMI cable.
- Page 2 Installation guide Identification The “id”number has to be entered in the ipnoticeboard.com software IP factory setting DHCP Notice board Id : 12E . 012 . DE1 . 32E . 0AB . 4C5 D.C : 1726 Fv 3001 Wiring diagram HDMI interface When the power supply is provided by the POE switch, the cable has to be CAT6 / 90 meters.
- Page 3 Installation guide Green led 17’’ screen Brightness Tamper Factory use only 24Vcc button input 12Vdc outputs button input (motion sensors) Motion sensors input...
- Page 4 Installation guide The section of the PSU cable has to be: 1mm2 Up to 10 meters 1.5mm2 up to 20 meters Motion detector and push button wiring Motion détector Motion détector Push button 24Vdc PSU Commissioning The HDMI interface or the 17” screen needs an internet connection to reach the web software ipnoticeboard.com By default, they use DHCP.
- Page 5 Installation guide Click on Add a site Then fill the information in the empty fields: Fields with a * are mandatory.
- Page 6 Installation guide The time zone has to be entered as the system manages time profiles. For example, a scenario can be displayed on day period but not on time period. Create a digital notice board (=HDMI Interface or 17” screen) Click on then enter a name plus the id of the device.
- Page 7 Installation guide Communication status Both digital notice board or HDMI interface are setup to communicate with the web software. Therefore, they need to have an internet access. Every 5 minutes, a connection is triggered from the device to the server to check if any update is needed.
- Page 8 Installation guide Information of union harmonisation legislation FDI MATELEC, as a manufacturer, declares under its sole responsibility that the product IP Notice board complies with the relevant Union harmonisation legislation: RED 2014/53/EU – CEM 2014/30/EU – ROHS 2011/65/EU This declaration is fully available on request at sales@fdimatelec.com or on our web site www.fdimatelec.com under this product part number.
