Connection; Programming - Axema A04 Manual

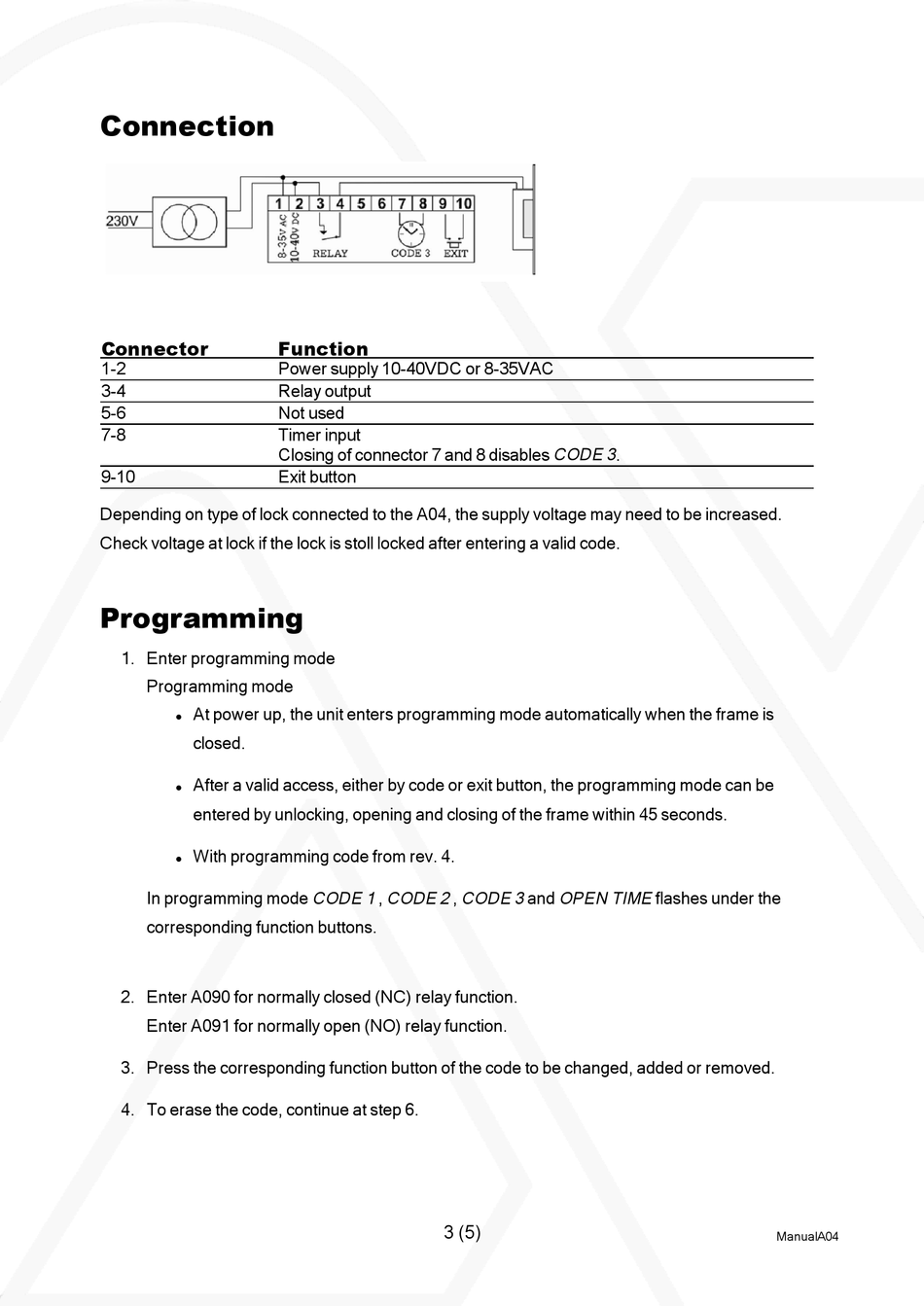

Connection

Connector
1-2
3-4
5-6
7-8
9-10
Depending on type of lock connected to the A04, the supply voltage may need to be increased.
Check voltage at lock if the lock is stoll locked after entering a valid code.

Programming

1. Enter programming mode
Programming mode
At power up, the unit enters programming mode automatically when the frame is
l
closed.
After a valid access, either by code or exit button, the programming mode can be
l
entered by unlocking, opening and closing of the frame within 45 seconds.
With programming code from rev. 4.
l
In programming mode CODE 1 , CODE 2 , CODE 3 and OPEN TIME flashes under the
corresponding function buttons.
2. Enter A090 for normally closed (NC) relay function.
Enter A091 for normally open (NO) relay function.
3. Press the corresponding function button of the code to be changed, added or removed.
4. To erase the code, continue at step 6.
Function
Power supply 10-40VDC or 8-35VAC
Relay output
Not used
Timer input
Closing of connector 7 and 8 disables CODE 3 .
Exit button
3 (5)
ManualA04
