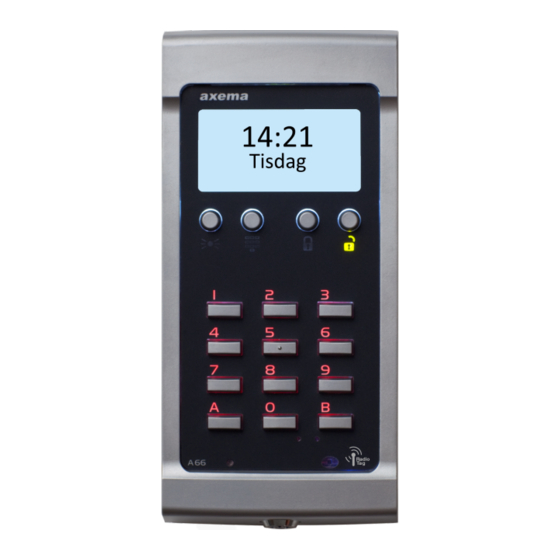

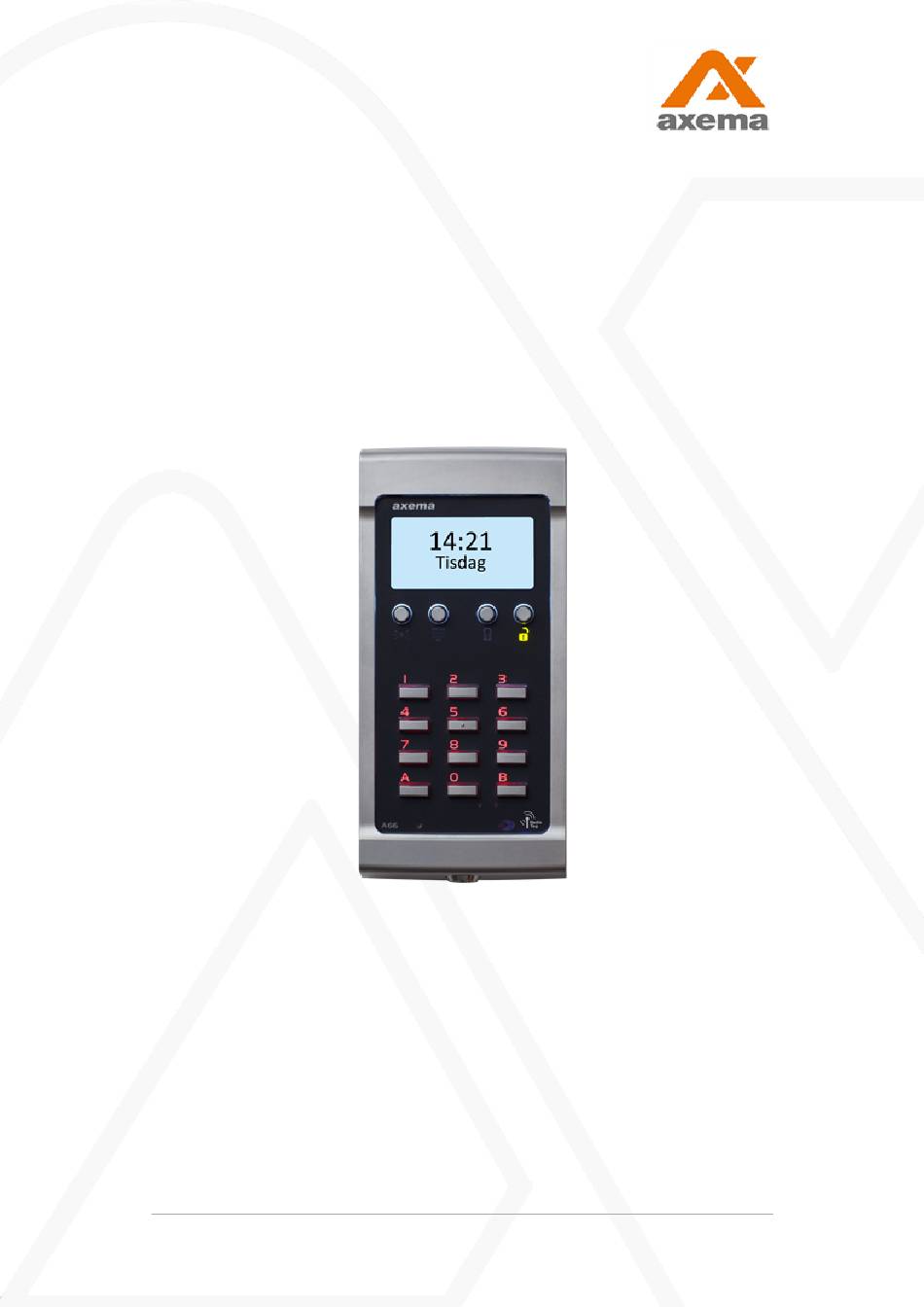

- Page 1 Manual Updated 08/11/2021 Reader VAKA A66 Stand-alone Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | +46 (0)8-722 34 40 | info@axema.se | www.axema.se...
- Page 2 A66 Stand-Alone Screw terminals Commissioning the A66 Real time clock Programming Menus Times Codes Tags Day open and exit button Options Reading Radio SOLO (Off line) Before you contact support Technical data 2 (8) ManualA66 Stand alone...
- Page 3 Screw terminals Connector Function AUX relay (NO/NC) Supply voltage (12-35 VDC) Exit button * 8, 10 Door contact ** The 100Ω resistor (supplied) is only used when the reader is connected to a door controller. * Closing the open button input means that the lock is unlocked for the corresponding time (plus the set opening time).
- Page 4 (Default set to 112233). Factory default settings are highlighted in bold. An Excel programming template can be downloaded from: www.info.axema.se/download/A66_programmeringsmall.xlsx Remember to replace the programming code with a self-selected 6-digit code. Menus Times Time / date , setting the time and date.
- Page 5 Tags New tag , add a tag or radio key by reading or by ID number. Series installation , programming of tags in ID number sequence (EM) with the first and last tag in the series. Tags are programmed with the keypad or by reading. Remove tag , tag removal can be done in different ways.
- Page 6 Options Reversed Lock Function , Activate/Deactivate Reversed Lock Function , Activate/Deactivate Activated when selecting one or more channels. 1. PostNord, the Swedish Direct Marketing Agency, the Swedish Prosecution Authority and the Police 2. Bring and CityMail (Press Morning Service) 3. Not used 4.
- Page 7 Radio reading can only be done with radio key VAKA RN18. SOLO (Off line) With Axema SOLO, an Offline system can be built with up to ten A66 readers, completely without interconnecting cabling. A common database is stored locally in the readers and is spread by MIFARE DESFire EV2 tags.
- Page 8 Before you contact support After a factory reset, the A66 needs a power cycle to power up. If --:-- is shown in the display, it's necessary to set date and time. See also Real time clock. A66 gives no warning sound if the door remains open after the specified unlocking time. For that function, the UDR-Plus can be used.
