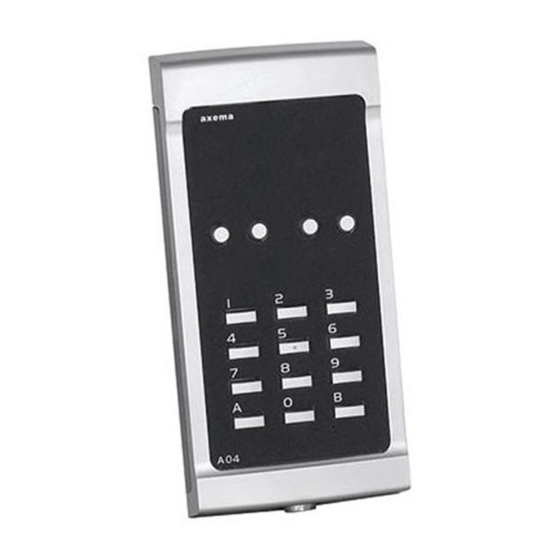

- Page 1 Manual Updated 04/11/2021 Codelock A04 A04 is a robust, stand alone code lock for indoor and outdoor use. Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | +46 (0)8-722 34 40 | info@axema.se | www.axema.se...
- Page 2 Connection Connector Function Power supply 10-40VDC or 8-35VAC Relay output Not used Timer input Closure between terminals 7 and 8 means that code 3 (CODE 3) is not working. 9-10 Exit button Programming To start the programming mode After power-up, the programming mode starts automatically when the enclosure is closed. The pro- gramming mode can then be activated by one of the following options: Within 45 seconds after a valid access (with code or exit button) unlock, open and close the enclosure.
- Page 3 Delete code 1. Enter programming mode 2. Press the function key for the code to be deleted. 3. Exit programming mode by pressing B or wait for 30 seconds. Change unlock time 1. Enter programming mode 2. Press the function key OPEN TIME . 3.
- Page 4 Technical data and performance Attribute Tamper detection Power supply 10-40 VDC/8-35 VAC Maximum relay load 10-30 VDC IP rating IP55 IP rating IK08 Temperature range (C) -30° to +55C° Number of codes 4 (4) ManualA04...
