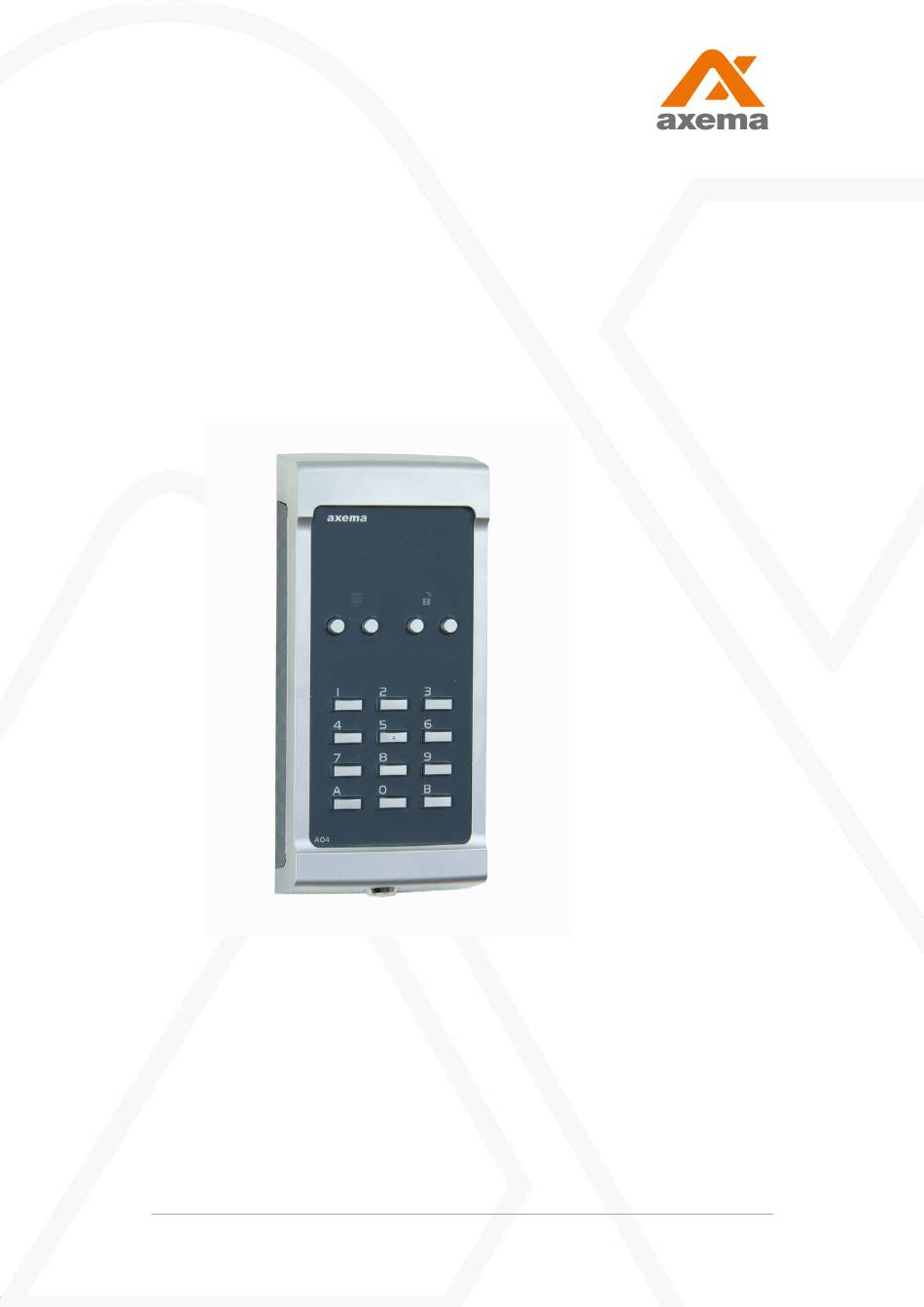

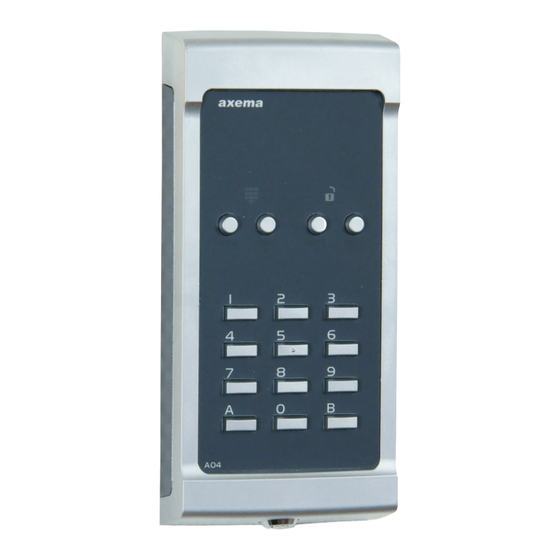

- Page 1 Manual Updated 11/20/2020 Codelock A04 A04 is a stand alone codelock designed for in- and outdoor usage Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | +46 (0)8-722 34 40 | info@axema.se | www.axema.se...
- Page 2 A04 Codelock Connection Programming Enter programming code Example- access code 4455 in code slot 1 and five seconds open time. Blocking after invalid code Factory reset Factory settings Technical data and performance 2 (5) ManualA04...
- Page 3 Closing of connector 7 and 8 disables CODE 3 . 9-10 Exit button Depending on type of lock connected to the A04, the supply voltage may need to be increased. Check voltage at lock if the lock is stoll locked after entering a valid code. Programming 1.
- Page 4 5. Enter the desired code. 6. Press the function button for OPEN TIME . 7. Set desired unlocking time 8. Exit programming mode by pressing B or wait for 30 seconds. Enter programming code 1. Enter programming mode 2. Press A20 . 3.
- Page 5 Factory reset 1. Enter programming mode 2. Enter A 00199200. Factory settings 7 seconds unlocking time No codes N/O lock relay function Technical data and performance Attribute Power supply 10-40 VDC/8-35 VAC Maximum relay load 1A 30VDC IP-rating IP55 IP rating IK08 Temperature range -30°...
