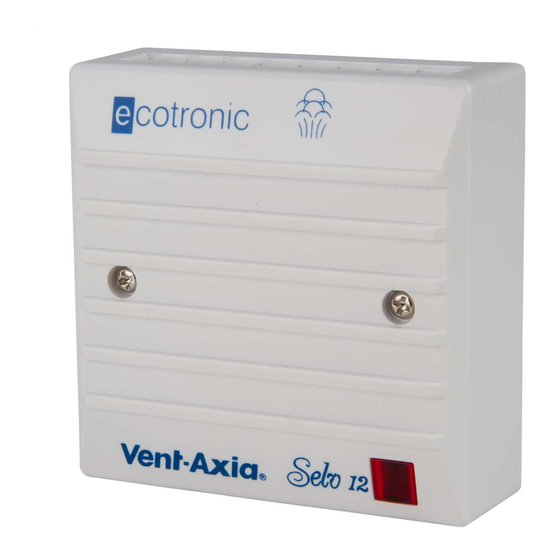

Vent-Axia 563531A Fitting And Wiring Instructions

Humidity controller

ECOTRONIC SELV 12V

Humidity Controller

Fitting AND WIRING INSTRUCTIONS

Suitable for use with a single Vent-Axia SELV 12 fan up to 5.6A,

eg. Solo SVH, VA100SVL 12, VA100SVX 12, LuminAir

Stock Ref:- 56 35 31A

PLEASE READ ALL INSTRUCTIONS

CAREFULLY BEFORE INSTALLATION

AND LEAVE WITH THE END USER

Table of Contents

Need help?

Do you have a question about the 563531A and is the answer not in the manual?

Page 1 ECOTRONIC SELV 12V Humidity Controller FITTING AND WIRING INSTRUCTIONS Suitable for use with a single Vent-Axia SELV 12 fan up to 5.6A, eg. Solo SVH, VA100SVL 12, VA100SVX 12, LuminAir Stock Ref:- 56 35 31A PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLATION...
Page 2 Resistive). Only connect together products NOTE: On installation it is possible that the humidity from the Vent-Axia SELV 12 range as they are controller will run continuously until it has specially designed to work on 12V AC and are acclimatized to the environment.
Page 3 Fig.1. EXAMPLE WIRING CONNECTIONS. Fan On when relay energised by RH% or manual override, Off otherwise. Mains supply 220- 240V 50Hz Vent-Axia Vent-Axia Vent-Axia SELV 12 fan SELV 12 Ecotronic transformer SELV 12...
Page 4 The guarantee is offered to you as an extra benefit, and does not affect your legal rights. As part of the policy of continuous product improvement Vent-Axia reserves the right to alter specifications without notice. Head Office: Fleming Way, Crawley, West Sussex RH10 9YX Tel: 01293 526062 Fax: 01293 551188 Internet site at: www.vent-axia.com...
