Summary of Contents for Vent-Axia SAC 5
Page 1

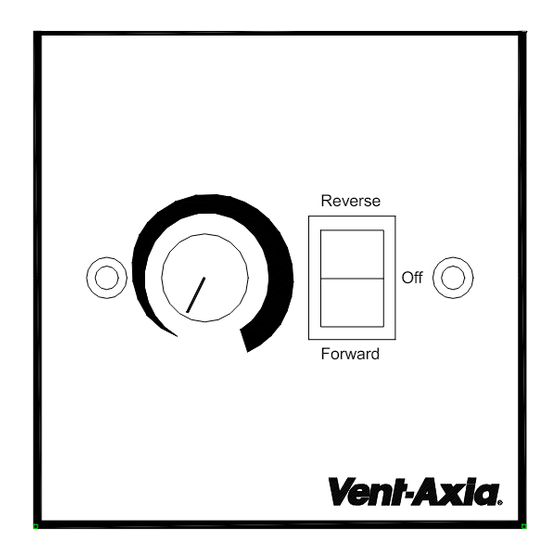

SAC 5 ELECTRONIC REVERSING FAN CONTROLLER Installation and Wiring Instructions Reverse Forward Stock Ref. No 428238 230V/1/50Hz READ INSTRUCTIONS IN CONJUNTION WITH ILLUSTRATIONS READ AND SAVE THESE INSTRUCTIONS...
Page 2
C. Ensure that the mains supply (Voltage, Frequency and phase) complies with the rating label. D. The control switch should only be used in conjunction with the appropriate Vent-Axia product. E. It is recommended that the connection to the terminal box be made with flexible cable/conduit.
Page 3
CEILING SWEEP FANS. LR N LF LR CEILING CEILING CEILING CEILING CEILING SAC 5 SPEED CONTROLLER SWITCHED FUSED SPUR 1 PHASE SUPPLY (220-240V 50Hz) THE CONTROLLER IS FITTED WITH AN INTERNAL FUSE TO PROTECT CONTROLLER WIRING AND COMPONENTS. IT IS NOT DESIGNED TO PROVIDE MOTOR OVERLOAD PROTECTION, ADDITIONAL...
Page 4
United Kingdom contact your local supplier. Vent-Axia guarantees this product for one year from the date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s discretion the product will be replaced without charge, provided that the product: Has been installed and used in accordance with the instruction given with each unit.
