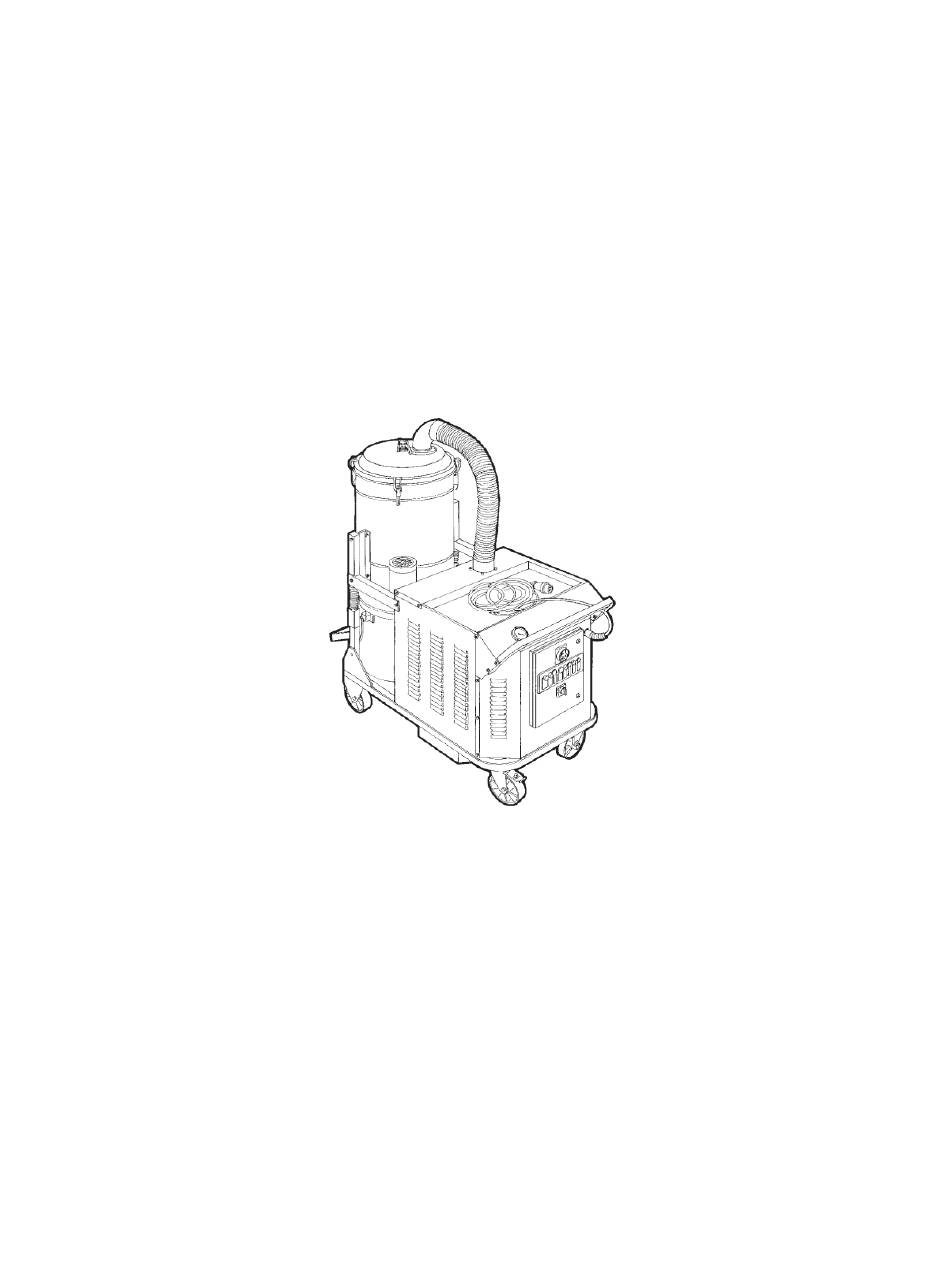

- Page 1 Instructions for Use Manual Nilfisk CFM 3707/10 Nilfisk CFM 3907 Nilfisk CFM 3907/18 4/2009 C340...
-
Page 3: Table Of Contents
3707/10 - 3907 - 3907/18 Table of contents Operating instructions ..............................4 Operator safety ............................4 General information about use of the vacuum cleaner ................4 Proper uses ..............................4 General recommendations ........................... 5 Description of the vacuum cleaner - Labels ....................6 Optional kits .............................. -
Page 4: Operating Instructions
3707/10 - 3907 - 3907/18 Operating instructions Read the operating instructions and comply with the important safety recommendations identified by the words: WARNING! WARNING! Operator safety Improper connection of the equipment-grounding conductor can WARNING! result in a risk of electric shock. Check with a qualified electrician or service person if you are in the doubt as to whether the outlet Before starting the vacuum cleaner, it is absolutely is properly grounded. -
Page 5: General Recommendations
3707/10 - 3907 - 3907/18 General Recommendations WARNING! Risk of fire outbreaks and explosions. – The vacuum cleaner can only be used when it is certain that active sources of ignition are not going to be vacuumed. – It is forbidden to vacuum the following materials: burning materials (hot ashes, lighted cigarettes, etc.), flammable liquids, aggressive fuels (e.g. -
Page 6: Description Of The Vacuum Cleaner - Labels
3707/10 - 3907 - 3907/18 Description of the vacuum cleaner - Labels Optional kits Various optional kits are available for converting the vacuum Figure 1 cleaner: A. Identification plate: Code of the Model which includes, – liquid shut-off kit; Technical Specifications, Serial Number, CE marking, Year of –... -
Page 7: Packing And Unpacking
3707/10 - 3907 - 3907/18 Packing and unpacking Dispose of the packing materials in compliance with the laws in force. Figure 2 Box Dimensions Model 3707/10 3907 3907/18 A (in) B (in) C (in) Weight (lbs.) Extensions Connection to the power supply If an extension is used, make sure it is fit for the power draw and protection degree of the vacuum cleaner. -
Page 8: Wet And Dry Applications
3707/10 - 3907 - 3907/18 Wet and dry applications Maintenance and repairs Note WARNING! The supplied filters and the safety container (if applicable) Disconnect the vacuum cleaner from its power source before must be installed correctly. cleaning, servicing, replacing parts or converting it to obtain If the machine is used to clean up liquids, make sure that the another version/variant. -
Page 9: Technical Data - Dimensions
3707/10 - 3907 - 3907/18 Technical data - Dimensions Technical data Units 3707/10 3907 3907/18 Voltage @ 60Hz volts 200-240/440-480 440-480 440-480 no. of Type of Power phases Power 12.6 15.3 Current Draw amps 27.9/15.5 inches Waterlift, max. Airflow, max. Filter Area, main sq. -
Page 10: Controls, Indicators And Connections
3707/10 - 3907 - 3907/18 Controls, indicators and connections Operating the vacuum Figure 4 Figure 7 A. Vacuum gauge RED ZONE B. Main switch (on “I“ - off “0“) GREEN ZONE C. Reverse phase indicator D. Thermal overload Check the flow rate: E. -
Page 11: Emergency Stopping
3707/10 - 3907 - 3907/18 Emergency stopping Use as a wet cleaner Make sure that the vacuum cleaner is equipped with a float (liquid Press the stop button “H” (Fig. 4). level sensor) and is suitable for use as a wet cleaner. Do not clean up flammable liquids. -
Page 12: Maintenance, Cleaning And Decontamination
3707/10 - 3907 - 3907/18 Maintenance, cleaning and decontamination How to disassemble and replace the main and Hepa filters WARNING! WARNING! NOTE: The precautions described below must be taken during all the maintenance operations, including cleaning When the vacuum cleaner is used to clean up hazardous and replacing the main and Hepa filters. -
Page 13: Hepa/Ulpa Filter Replacement
3707/10 - 3907 - 3907/18 Hepa/Ulpa filter replacement Cleaning and replacing the separator WARNING! Note Do not agitate the dust when this operation is carried out. If there is only a dust deposit on separator “D” (Fig. 17), allow the Wear a mask and other protective clothing plus protective dust to drop through the central hole. -
Page 14: Wiring Diagrams
3707/10 - 3907 - 3907/18 Wiring diagrams Phase sequence (1/3) Figure 22 Basic machine (1/3) MAIN DISCONNECTOR Figure 18 INVERTER THREEPOLAR FUSING HOLDER MAIN DISCONNECTOR PHASE SEQUENCE RELAY INVERTER THERMAL RELAY THREEPOLAR FUSING HOLDER VACUUM THERMAL RELAY FUSING HOLDER TRANSFORMER VACUUM FUSING HOLDER TRANSFORMER Model... -
Page 15: Recommended Spare Parts
3707/10 - 3907 - 3907/18 Recommended spare parts Troubleshooting The following is a list of spare parts that should be kept on hand Problem Causes Remedies in order to speed up maintenance work. The vacuum suddenly Clogged main filter Shake the filter. stops Replace it if this is not List of recommended spare parts... - Page 16 3707/10 - 3907 - 3907/18 C340 04/2009...
- Page 17 3707/10 - 3907 - 3907/18 3707LMH12 3707LMH11 04/2009 C340...
- Page 18 3707/10 - 3907 - 3907/18 3307LMH11 3707LMH03 C340 04/2009...
- Page 19 3707/10 - 3907 - 3907/18 3307LMH13 3307LMH14 3307LMH15 04/2009 C340 3707LMH07...
- Page 20 3707/10 - 3907 - 3907/18 3307LMH18 3307LMH20 C340 04/2009...
- Page 21 3707/10 - 3907 - 3907/18 3707LMH04 3307LMH22 04/2009 C340...
- Page 22 3707/10 - 3907 - 3907/18 3307LMH23 3707LMH05 C340 04/2009...
- Page 23 3707/10 - 3907 - 3907/18 04/2009 C340...
- Page 24 3707/10 - 3907 - 3907/18 C340 04/2009...
- Page 25 3707/10 - 3907 - 3907/18 04/2009 C340...
- Page 26 3707/10 - 3907 - 3907/18 C340 04/2009...
- Page 27 3707/10 - 3907 - 3907/18 04/2009 C340...
