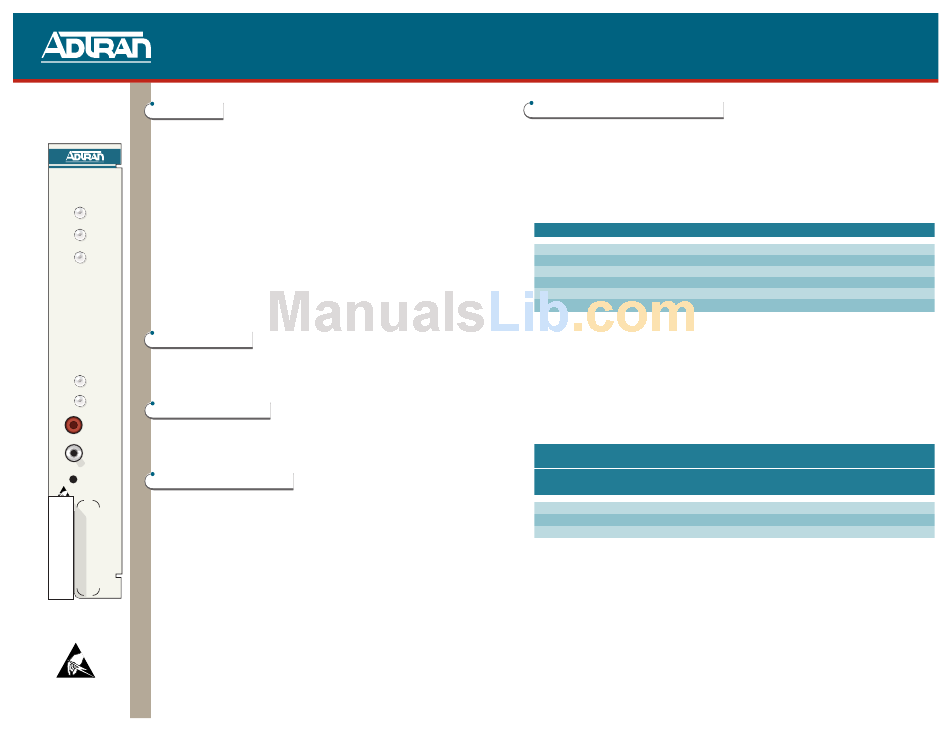

ADTRAN DS3 MX Job Aid

DS3 MX
STATUS LEDs
CLEI: M3CMSP0E_ _ G G
POWER
G
G
G G
STATUS
DS3MX
G
1181020L1
G
G
POWER
G G
TEST
G
STATUS
G G
LOCKOUT
G
TEST
G
G G
ONLINE
G
APS PUSHBUTTON
I When depressed simultaneously with the Test/Enable switch on the Off-line unit, a
protection switch is forced.
LOCKOUT
When depressed with the Test/Enable switch on the On-line unit, it toggles APS status.
I
ON LINE
TEST/ENABLE BUTTON
APS
When depressed alone, tests all unit LEDs (multicolor LEDs appear YELLOW).
I
When depressed simultaneously with the APS switch on the Off-line unit, a protection switch
I
TEST/
is forced.
ENABLE
INSTALLATION PROCEDURE
I Ensure the TA 3000 system chassis is properly mounted and wired for power. BNC Adapter
Module, P/N 1181004L1, is required for DS3 operation. The adapter is mounted to connector
J34 (J20 on 19" shelf), located in the lower right corner of the backplane.
I Ensure SCU is seated and receiving power.
Plug DS3 module into slot A or B of system chassis. Gently but firmly push the DS3 Mux into
I
one of the Mux slots, A or B, at the left end of the shelf. Simultaneous thumb pressure at the
top (above the POWER LED) and bottom (below the Test/Enable button) of the unit will
ensure a good seat of the DS3 pins into the backplane connector. Push the ejector tab up and
closed against the DS3 faceplate.
I Allow the self-test LED sequence to complete. The self- test should take about 40 seconds.
Upon completion, the POWER LED will be YELLOW, indicating the unit is Out-of-Service
and the STATUS LED will be OFF indicating the unit is in the Unassigned (OOS-UA) state.
C A U T I O N C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
OFF No power is present on the unit
YELLOW Unit is Out-of-Service
GREEN Unit is In-Service
OFF Unit is Out-of-Service, Unassigned
GREEN DS3 signal is present and synchronized
RED Local alarm or local and remote alarm condition detected
YELLOW Remote alarm condition detected
OFF Unit is not in loopback
YELLOW Loopback active
OFF APS enabled
YELLOW APS disabled due to INHIBIT
RED APS is locked out due to three non-forced APS events within a
24-hour period
OFF Unit is stand-by unit (unit receives from network but does not
transmit to network)
GREEN Unit is on-line unit (unit receives from and transmits to network)
I For a complete Installation and Maintenance: 877.457.5007, Document #317. Please have your fax number available. I
DS3 MUX
PROVISIONING THE DS3 MULTIPLEXER
To provision the DS3 Mux, connect a terminal emulator via the RS-232 (DB-9) connector on the faceplate
of the SCU. The terminal must be VT-100 or compatible and set for 9600 bps, 8 data bits, no parity and 1
stop bit.
At the LOGON screen, enter the system password. Note the default password is "PASSWORD" (case
I
sensitive) and can be changed upon initial login.
I Select Common A or Common B from the Total Access Menu.
Select option 2, Provisioning, and press <enter>.
I
The following table lists the provisioning settings and their default values.
Options
Framing
Line Build Out
Clock Source
Service State
Linked Provisioning
Line Code
I Framing - sets the DS3 framing.
I Line Build Out - set LBO to either Short or Long.
Short - cable length is less than 225 feet of 734A or equivalent coaxial cable or less than
100 feet of Lucent 735 or equivalent coaxial cable.
Long - cable length is greater than 225 feet of 734A or equivalent coaxial cable or
greater than 100 feet of Lucent 735 or equivalent coaxial cable.
I Clock Source - selects where the transmit clock derives its timing.
Local - derives its clock from an on-board oscillator.
Loop - derives its clock from the incoming DS3 data stream.
Service States - the following table lists the operations allowed in each state.
I
Service Report
State Alarms
OOS, Un N
OOS, Ma N
In Service Y
Linked Provisioning - when enabled, automatically transfers provisioning changes made to the
I
enabled unit to the other unit.
Line Code - this value is hardcoded to B3ZS and cannot be changed.
I
Settings
M13, C-Bit, Auto detect
Short, Long
Local, Loop
In Service, OOS-Unassigned, OOS-Maint
Enabled, Disabled
B3ZS (cannot be changed)
Report Switch to Allow Trib Ntwrk
TL1 PM Provide Forced Data Data
Data Service Switch
on Fault into Unit
Y N N AIS IDLE
Y Y Y Norm Norm
Y Y Y Norm Norm
JOB
A
ID
61181020L1-22A
0008
Default
Auto detect
Short
Loop
OOS-Unassigned
Enabled
B3ZS
Allow Allow Allow
Dwnld Prov Maint
Y Y Y
Y Y Y
N N N
