Update the WiFi module
● Download and unpack the firmware files for the WiFi module from
Power up your Fusion and make sure the WiFi is enabled (Settings -> WiFi)
●
On your PC or phone search for a new WiFi network like "TBS_FUSION_AP_xxxxxx"
●
Connect your pc with this network. On Windows machines this can take up to one minute
●
Open your browser and enter IP in the address bar: 192.168.4.1
●

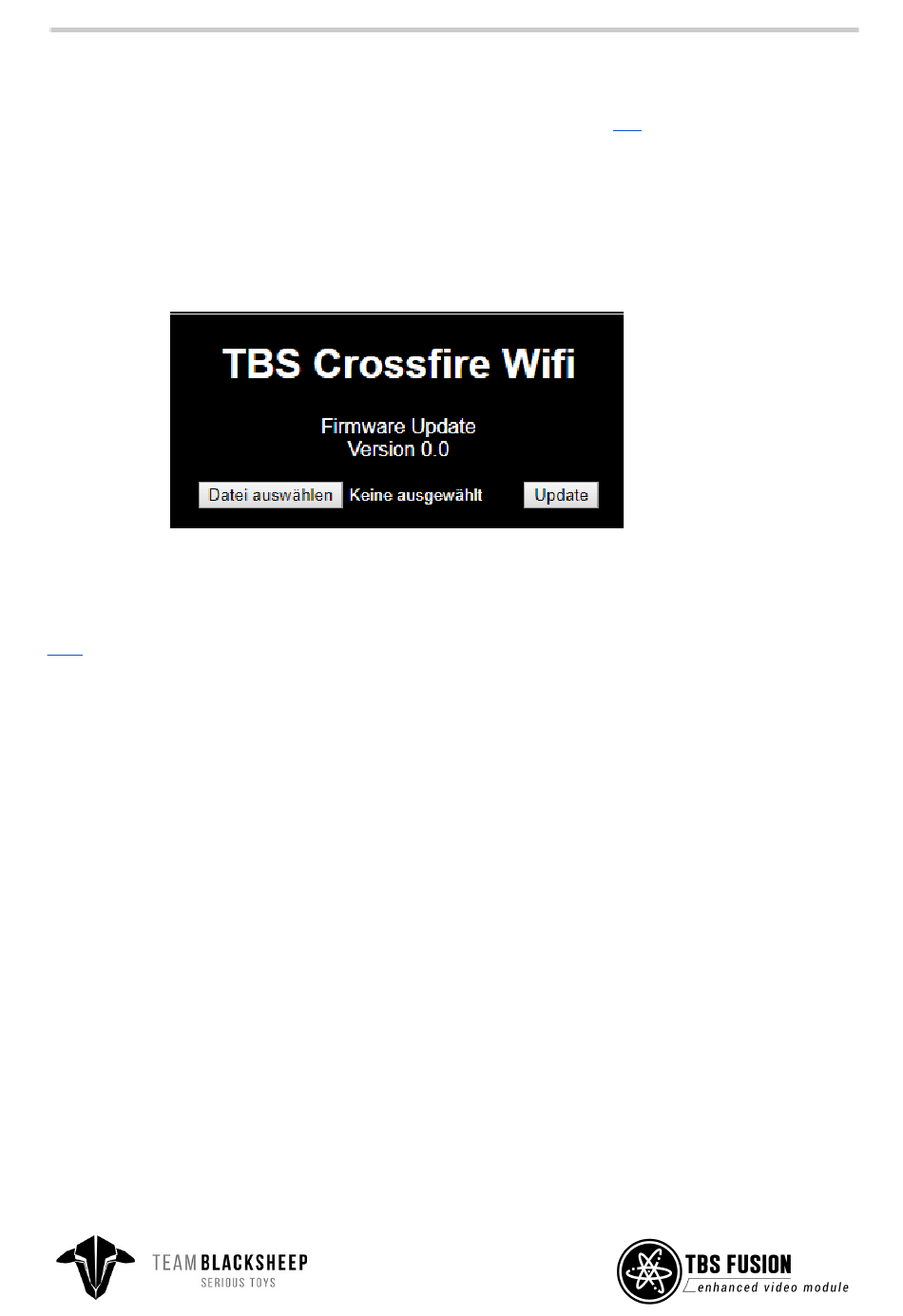

Click on Select file and search for the unpacked firmware files you downloaded before
●
Hit Update and wait for the website to reload
●
○ Do not shut down your Module during WiFI module updating process
Here you can find the whole process as video
Connection to a WiFi hotspot
Once your WiFI module is initiated, you can now connect to an external hotspot. The easiest way is to
connect it by the Web-ui:
● Connect the Tracer TX to your radio and power it up
● On your PC or phone search for a new WiFi network like "TBS_Tracer_AP_xxxxxx"
● Connect your pc/ phone with this network. On Windows machines this can take up to one minute
Open your browser and enter ip in the address bar: 192.168.4.1
●
Open the WiFI tab
●
Click on Scan to search for available WiFi hotspot/ networks
●
Click on the name of the found network you want to connect to - the name will be entered for you
●
● Enter your password and hit Connect/ Disconnect
● When you refresh the WebUi page after a few seconds, you will see the IP address assigned by the
WiFi network for tracer TX
Note: if WIFi hotspot/ network has no internet connection, cloud based features will not work.
