Summary of Contents for Little Doctor LD-207U

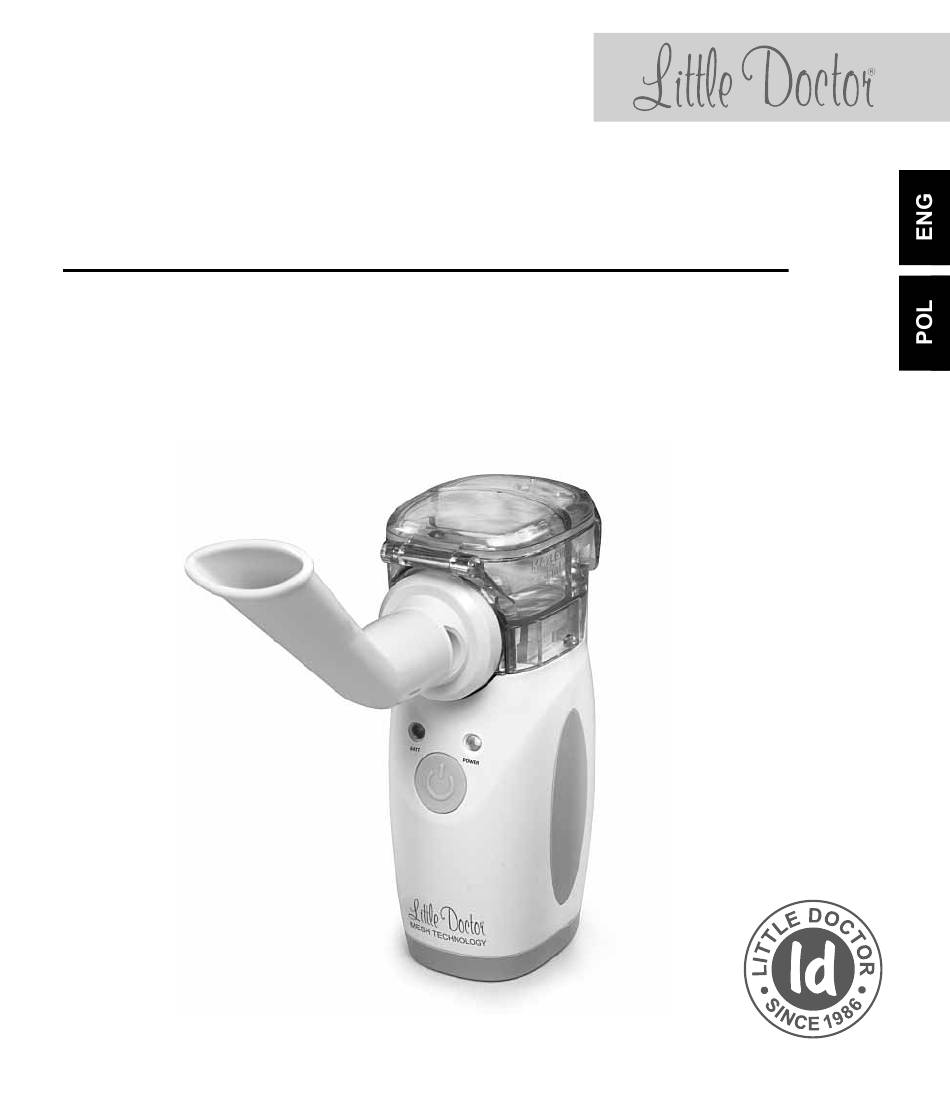

- Page 1 LD-207U Ultrasonic Nebulizer LD Instruction Manual Inhalator ultradźwiękowy LD Instrukcja obsługi...
-
Page 2: Table Of Contents
Accessories for nebulizer LD-207U ........ -
Page 3: New Technology For Producing Aerosol

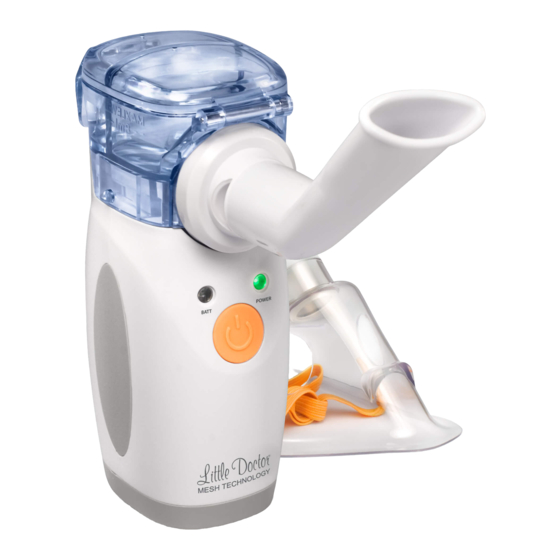

NEW TECHNOLOGY FOR PRODUCING AEROSOL LD-207U is a nebulizer, which utilizes the latest MESH – technology of obtaining aerosol: using the mesh membrane and low-frequency ultrasonic generator. In comparison with usual ultrasonic nebulizers, use of MESH-technology provides several advantages: • Compact size of the device;... -
Page 4: Parts List
PARTS LIST Batt Power... - Page 5 № POSITION NAME DESCRIPTION ON THE SCHEME Inhalation Removable camera with a mesh membrane to form an aerosol chamber inhalation solution LD-N060. Expendable material. Compartment for Compartment for inhalation solution. medicine Compartment for Compartment for hot water. water Mesh membrane Transforms the inhalation solution into an aerosol.
-
Page 6: Precautionary Measures
• Do not place the device in water, drain, or in the shower. Do not use while bathing. • If the device does not work, see «Troubleshooting. Detection and correction». • Use only accessories that are designed for LD-207U and described in this manual. • Do not insert foreign objects into the holes in the device. -
Page 7: Installation Of Batteries
• Never plug in or unplug from the power socket with wet hands. • Do not immerse the main unit into water or other liquids. • Protect it against water or other liquid splashes. In case it contacts with any splash, disconnect the power supply and mop up with gauze or other soft adsorbing materials. -
Page 8: Use Of The Device
USE OF THE DEVICE Important! Before using the device for the fi rst time it is necessary to make a full cleaning, as described in item 1 of section «Care, storage, repair and recycling» 1. Insert the inhalation chamber into the slots at the top of the main unit until it clicks (Fig. -
Page 9: Membrane Cleaning Mode
Important! During inhalation do not close the holes (Figure 9). This will reduce the effi ciency of the device. If you want to stop the procedure, press the to turn off the power. POWER indicator will go out. If inhalation solution used Fig.7 in full, the unit will automatically turn off. -
Page 10: Care, Storage, Repair And Recycling
CARE, STORAGE, REPAIR AND RECYCLING 1. After inhalation with any medicine solution is recommended to spray clean water for 1-2 minutes to clean the mesh membrane of residual medicines. DO NOT clean the membrane with items (towels, rags, cotton buds and so on)! 2. -
Page 11: Main Technical Characteristics
MAIN TECHNICAL CHARACTERISTICS Model LD-207U Type Ultrasonic Power supply 2×AA batteries or Adapter (AC-DC 3V1A) Rated Power Ultrasonic Frequency 140 kHz Safety level Type BF, ClassII Nebulizing Rate ≥0.2ml/min Max./Min. Liquid Volume 8ml/0.5ml Average particle size of aerosol (MMAD) Approximately 5μm Range of aerosol particles, mkm <5 –... -
Page 12: Troubleshooting. Detection And Correction
SYMBOL EXPLANATION BF type product Manufacturer Important: Read the instruction Compliance with the Directive 93/42/EEC Protection class II Representative in the EU The revision date of this Operation manual is indicated at the last page in the EXXX/YYMM/NN format, where YY is the year, ММ... -
Page 13: Certification And State Registration
57G Zawila Street, 30-390, Krakow, Poland Service phone: +48 12 2684748, 2684749 Manufactured under control: Little Doctor International (S) Pte. Ltd., Yishun Central P.O. Box 9293 Singapore 917699 Manufacturer: Little Doctor Electronic (Nantong) Co. Ltd., No.8, Tongxing Road Economic & Technical... -
Page 14: Accessories For Nebulizer Ld-207U
Made of PVC • For individual use • Package Quantity - 1 pc. Inhalational mouthpiece LD-N023 • Designed for use with ultrasonic nebulizer LD-250U, LD-207U • Made of plastic • For individual use • Package Quantity - 2 pcs. Nebulizer Chamber LD-N060 •... -
Page 15: Manufacturer's Declaration
Guidance and manufacturer’s declaration – electromagnetic immunity The model LD-207U Mesh Nebulizer is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the model LD-207U Mesh Nebulizer should assure that is used in such an environment. - Page 16 If the measured fi eld strength in the location in which the Model LD-207U Mesh Nebulizer is used exceeds the applicable RF compli- ance level above, the Model LD-207U Digital Blood Pressure Monitor should be observed to verify normal operation.
- Page 17 Recommended separation distances between portable and mobile RF communications equip- ment and the LD-207U Mesh Nebulizer. The LD-207U Mesh Nebulizer is intended for use in an electromagnetic environment in which ra- diated RF disturbances are controlled. The customer or the user of the LD-207U Mesh Nebulizer...
- Page 18 No.8, Tongxing Road Economic & Technical Development Area, 226010 Nantong, Jiangsu, PEOPLE'S REPUBLIC OF CHINA Little Doctor Europe Sp. z o.o. 57G Zawila Street, 30-390, Kraków, Poland ® Registered Trade Marks Little Doctor International (S) Pte. Ltd. © Little Doctor International (S) Pte. Ltd., 2012-2019 E502/1909/10...
