Summary of Contents for Little Doctor LD-221C

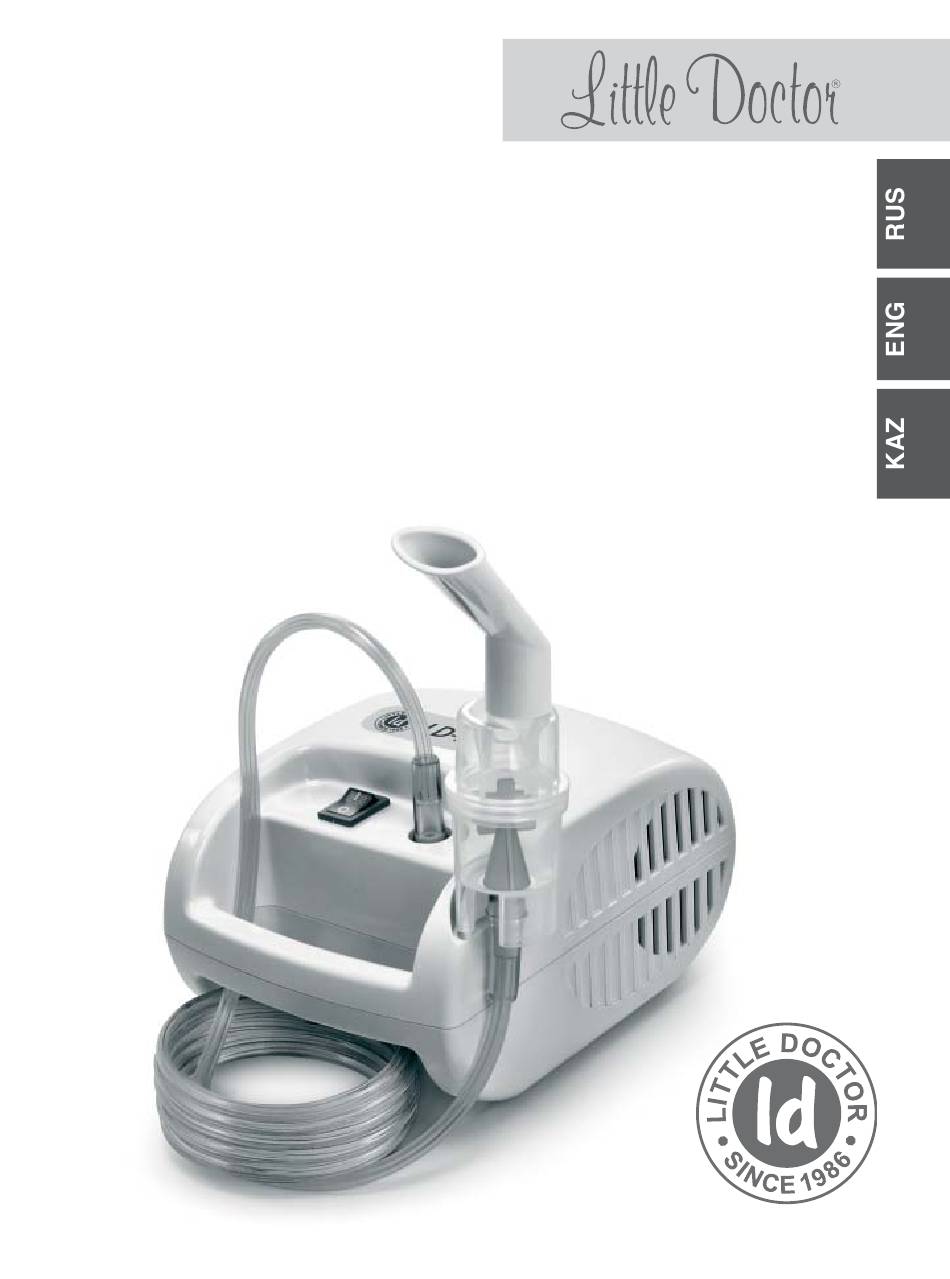

- Page 1 LD-221С Ингалятор компрессорный LD Руководство по эксплуатации Compressor Nebulizer LD Instruction Manual Ауа сығымдағыш LD ингаляторы Пайдалану жөніндегі басшылық құжат...
-
Page 2: Parts And Components
PARTS AND COMPONENTS LD-221C... - Page 3 DEVICE PARTS DESCRIPTION № position on the NAME DESCRIPTION scheme Compressor Nebulizer compressor unit for to create air pressure. Power Switch Tumbler I/O – switch on/switch off power. Connector of Compressor Fitting compressor for connecting an inhalation tube. Intake Holes for air intake to cool the compressor. Nebulizer holder Holder for the nebulizer.
-
Page 4: Nebulizer Therapy - What Is It
(bronchi expansion) is reached, and the need for hospitalization is eliminated or the hospital stay is reduced. Little Doctor Internatiоnаl (S) Pte. Ltd. offers you to use inhaler LD-221C, whose distinctive features are the possibility to use a wide range of medicines, low inhalation solution residual volume, and reliable and simple use. -
Page 5: Side Effects
stage of decompensation, nosebleeds or a predisposition to nosebleeds, hemoptysis, fever (body temperature above 38 °C), active pulmonary tuberculosis, acute pneumonia, hypertrophy of the mucous membranes of the respiratory tract, tonsillitis, pleurisy, epilepsy with frequent seizures, hysteria with severe convulsive seizures, psychosis with symptoms of psychomotor agitation, alcohol or drug intoxication, individual intolerance to procedures, general severe patient status. -
Page 6: Using The Device
USING THE DEVICE Preparing for inhalation. Important Before using the appliance for the fi rst time it is nec- essary to make a full cleaning, as described in last paragraph «SAFETY INFORMATION». 1. Place the nebulizer in front of you on the table. Make sure the device is turned off (power switch is in position «O»), and the power cord is not plugged into the mains. - Page 7 Fig. 4 particle sizes, mkm * - Measured by Little Doctor International (S) Pte. Ltd. Performing the inhalation. The length of one treatment session should not exceed 20 minutes. Consult your attending physician about the length of the inhalation procedure.
-
Page 8: Care, Storage, Repair And Disposal
Briefl y hold your breath, and then exhale slowly. Do not attempt to breathe too rapidly. Make pauses if you feel that you need it. Breath-actuated nebulizer. INHALE EXHALE The special design of the nebulizer in the form of chambers connected in a certain manner pro- vides different ways of air streams during inhal- ing and exhaling. -
Page 9: Warranty
masks, nozzles for the nose, mouthpieces and tubing is performed using specialized disinfectants. Nozzles for the noser LD-N058 and LD-N059, mouthpiece LD-N022 can be boiled for 10 minutes. If necessary, the nozzles for the nose LD-N058, LD-N059 and the mouthpiece LD-N022 can be sterilized in an autoclave at a temperature not exceeding 150 C for 10 minutes. -
Page 10: Technical Specifications
LD-N055 13 Instruction Manual — 14 Warranty Card — 15 Packaging — 16 Bag — TECHNICAL SPECIFICATIONS Model LD-221C Type Compressor Nebulizer Rating: AC 230V, 50Hz Power Consumption 190VA Nebulizing Pressure, max 210-400 KPa Noise Level, approx. 54 dB* Max capacity of nebulizer kit... - Page 11 130mm x 98mm x 180mm Net Weight, no more 1250 g Protection against electric shock type BF * - Measured by Little Doctor International (S) Pte. Ltd. SYMBOLS CE marking in conformity with EC directive 93/42/EEC Type BF Important: Read the manual...
-
Page 12: Electromagnetic Compatibility Information
7 m. Make sure that the device is working correctly if the distance is less. The rest of the IEC 60601-1-2 compliance documentation is available from Little Doctor company’s offi ce at the address provided in this manual. This documentation is also avail- able on the Littledoctor.sg website. - Page 13 Kazakhstan. Phone: +7 (7232) 76-97-97. E-mail:info@kаzmedimport.kz. www.kazmedimport.kz Manufactured under control: Little Doctor International (S) Pte. Ltd., 7500A, Beach Road, 11-313 The Plaza 199591, Singapore. Postal address: Yishun Central P.O. Box 9293 Singapore 917699. Manufacturer: Little Doctor Electronic (Nantong) Co., Ltd., No.8, Tongxing Road Economic & Technical Development Area, Nantong 226010, Jiangsu, PEOPLE’S REPUBLIC OF CHINA...
- Page 14 WWW.LITTLEDOCTOR.SG UA.TR.001 Зарегистрированные товарные знаки Little Doctor International (S) Pte. Ltd. ® © Little Doctor International (S) Pte. Ltd., 2022 I584/2208/13...
