Art DJ PRE II Specifications

ART cessories
JULY 2005

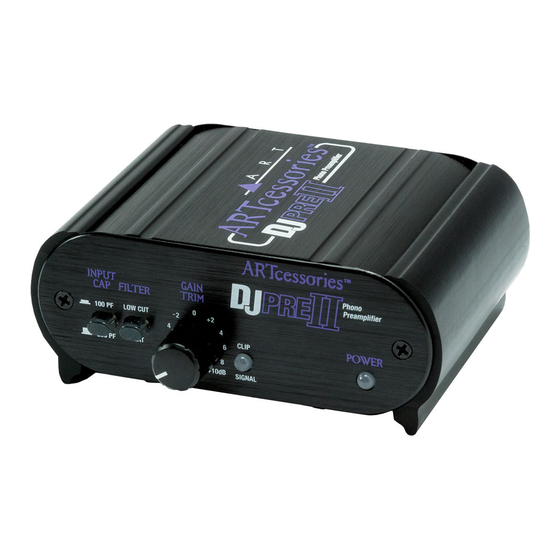

The DJ PRE II is a high quality Phono preamp designed for your home and
studio. It acts as an interface between your turntable and your audio recording
system. The analog input capacitance can be switched between 100pf and
200pf to optimize your phono cartridge response. A switchable low cut filter
removes turntable rumble while leaving the audio pristine. The front gain trim
control and signal/clip LED allow you to optimize the preamps gain for a wide
range of input sources. The built-in low noise Phono preamp circuitry is highly
accurate and precisely conforms to the RIAA standard. The Line Output jacks
are low impedance and can work with any sound card.
Housed in an all aluminum black anodized case, the DJ PRE II can be powered
by a wide variety of external supplies. If you need to amplify and EQ your vinyl
records to interface with your audio workstation, sound card, or main monitor
system, the DJ PRE II gives you flawless audio reproduction in a rugged and
reliable package.
Creative audio solutions in cool little boxes.
Phono Preamplifier
Phono
Preamplifier

Specifications:

Frequency Response:
THD:
Hum and Noise:
Input Impedance:
Maximum Input Level:
Maximum Gain:
Input / Output Connections:
Maximum Output Level:
Filter Type/Response:
Power Requirements:
Dimensions:
Weight:
DESIGNED & DISTRIBUTED BY: APPLIED RESEARCH AND TECHNOLOGY
215 Tremont Street • Rochester, New York 14608 • USA
For Customer Service, please call: 585.436.2720
Email: support@artproaudio.com • www.artproaudio.com
ART-ARTcs-05/05
™
Phono Preamplifier
10Hz –50KHz, +/-.5dB
.01% Typical @ 1KHz
>90dB below clipping
47k Ohms in parallel with either
100pF or 200pF
40mVrms @1KHz
45dB @ 1KHz
RCA
+6dBu (1.4Vrms)
Switchable, Low Cut, -3dB @ 22Hz
7-12V DC or 9-12V AC @ 150mA
1.75"H x 4.2"W x 3.5"D
(44.5mm x 107mm x 89mm)
1.25 lbs. (.57kg)
