- Page 1 ConeS DFC series Protein Skimmer DFC-80 / DFC-120 / DFC-180 / DFC-280 Installation Guide...

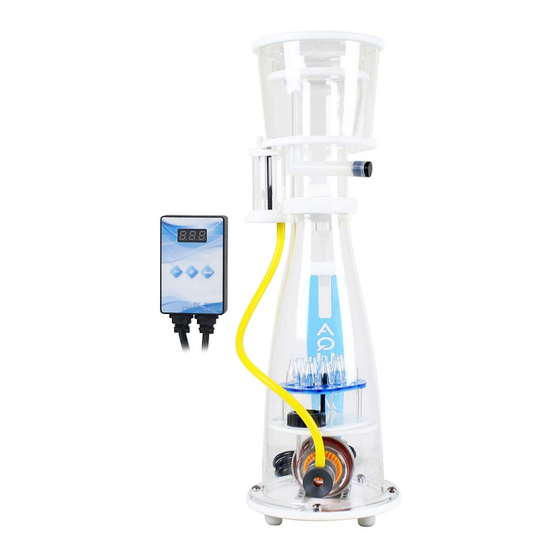

- Page 2 Before installation and operation Please open the package carefully and check for damaged or lost parts. PARTS INCLUDED: Collection cup and lid Quick-precise adjus�ng valve Air silencer Main skimmer body Air hose Diffuser (with diffuser plate) Venturi Body Screws *5 Transformer DC pump controller Pump...
- Page 3 Assembly of the main unit 1. Unscrew the body screws from the base plate 2. A�ach the pump to the base plate 3. Loosen the lid on the pump for next step to a�ach the diffuser www.aquamaxxaquariums.com...
- Page 4 4. Unscrew the center screw to take off the diffuser plate 5. A�ach the diffuser base to the pump and �ghten the lid. make sure the diffuser is in center posi�on, or the main body cannot be installed 6. A�ach the diffusor plate with the center screw. the diffuser plate should only be installed in this posi�on www.aquamaxxaquariums.com...
- Page 5 7. Reinstall the skimmer body the valve should leave some space for wire 8. Install the body screws on the base plate 9. Install the venturi on to the skimmer pump 10 . connect the airline tubing from the air silencer to the venturi www.aquamaxxaquariums.com...
- Page 6 11. Install the silencer on to the skimmer by thighten the center screw 12. Install the collec�on cup and lid (DO NOT OVER TIGHTEN SKIMMER CUP AS DAMAGE MAY RESULT) 13. Connect the pump to the pump controller and the transformer www.aquamaxxaquariums.com...
- Page 7 Select a suitable place to set your protein skimmer For best results place the skimmer in 7 to 8 inches of water. Please make sure that the skimmer is in no more than 8 inches of water. Otherwise, the Quick- precise adjus�ng valve will not func�on properly.
- Page 8 A purchase receipt is required for any warranty service. Products requir- ing warranty service must be returned to AquaMaxx. You are responsible for the cost of ship- ping a warranty claim to AquaMaxx and any damages that may occur during transit. Once a returned product has been inspected, it will be repaired or exchanged at our discre�on and...
