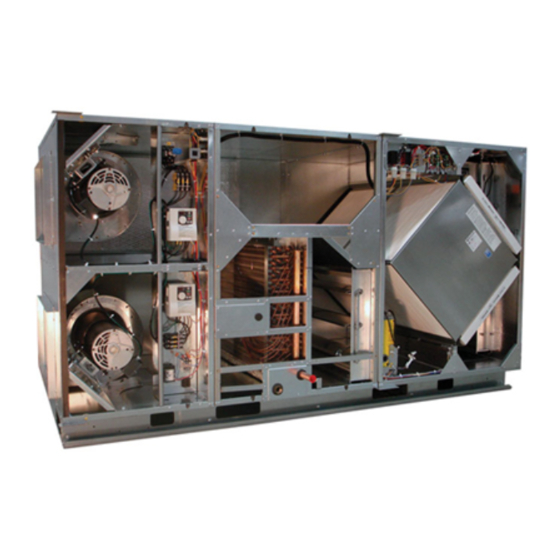

RD MODELS: INSTALLATION
AND OPERATION MANUAL
BOOK 5
START-UP, COMMISSIONING, MAINTENANCE
ABOUT BOOK 5:
This book covers Start-Up, Commissioning and
Maintenance of the RD MODELS.
Please see Book 1 for an overview of the RD
MODELS and system design considerations.
See Book 2 for product and performance
specifications.
See Book 3 for basic mechanical installation.
See Book 4 for basic electrical connections and
Wiring Schematics.
This book does not cover all system design or
system integration issues. Some of these issues are
discussed here and in Book 1, but in general,
specification documents provided by a qualified
specifying engineer are to be considered the Basis
of System Design.
Following these instructions does not necessarily
assure compliance with local codes and standards,
which must always be observed.
RD MODELS
138251_006
RD_BOOK_5.0_APR21DOC
Due to continuing product development, specifications are subject to change without notice
Revised 04/2021
201 Raemisch Road, Waunakee, WI 53597
608.221.4499, 800.627.4499
support@renewaire.com www.renewaire.com
Table of Contents
BOOK 1: Overview
Product Features
De-Coupled and DOAS System Overview
RD Psychrometrics
System Integration
Critical Warnings
Checklist for Specifying Engineer
BOOK 2: Specifications
Product Features
Available Features
Descriptive Drawings
Configuration Codes
Specifications
Airflow and Power Ratings
Coil Performance Ratings
Modes of Operation
Connections to External Equipment
Guide Specifications
BOOK 3: Mechanical Installation (INDOOR UNITS)
Product Features
Order of Installation
Critical Dimensions
How to Reconfigure the Unit (opt.)
How to Move Dampers to Remote Loc's (opt.)
Tie-down of Unit
Duct Location, Construction & Termination
Coils and Drain Connections
How to Install Field-Supplied Coil (opt.)
Disassembly for 3' Door (RD2XIN only)
BOOK 3: Mechanical Installation (ROOFTOP UNITS)
Product Features
Order of Installation
Critical Dimensions
Curb and Rail Dimensions
Service Clearances
Curb and Rail Installation Considerations
Rigging Information
Securing the Unit Against Wind Loads
Ducting
Coil and Drain Connections
How to Reconfigure the Inlet and Outlet (opt.)
How to Install Field-Supplied Coil (opt.)
BOOK 4: Electrical Installation
Product Features
Power Connections
Disconnect Switch Ratings
On-Board Transformer
Control Connections
Electrical Installation Checklists
Schematics
Ladder Schematics
BOOK 5: Start-Up, Commissioning and Maintenance
Product Features
Initial Checks
Balance Air Flow
Review / Adjust On-Board Controls (opt.)
VFD Parameters
Control Connection Examples: On/Off and 3-speed
Analog Control of the VFDs -- General
Scaling to VFD Response to Analog Inputs
Control Connection Examples: Analog Controllers
Control Connection Examples: Mixed Analog and On/Off
To Reset VFD Parameters
Service Parts
Warranty Information
Commissioning Records
Quarterly Maintenance Procedures & Records
Annual Maintenance Procedures & Records
Miscellaneous Service Notes
