5.3
Connectors
The TQMLS1028A is connected to the carrier board with 240 pins on two connectors.
The following table shows details of the connector assembled on the TQMLS1028A.
Table 16:
Connector assembled on TQMLS1028A
Manufacturer
TE connectivity
The TQMLS1028A is held in the mating connectors with a retention force of approximately 24 N.
To avoid damaging the TQMLS1028A connectors as well as the carrier board connectors while removing the TQMLS1028A
the use of the extraction tool MOZI8XX is strongly recommended. See chapter 5.8 for further information.
Note: Component placement on carrier board
2.5 mm should be kept free on the carrier board, on both long sides of the TQMLS1028A
for the extraction tool MOZI8XX.

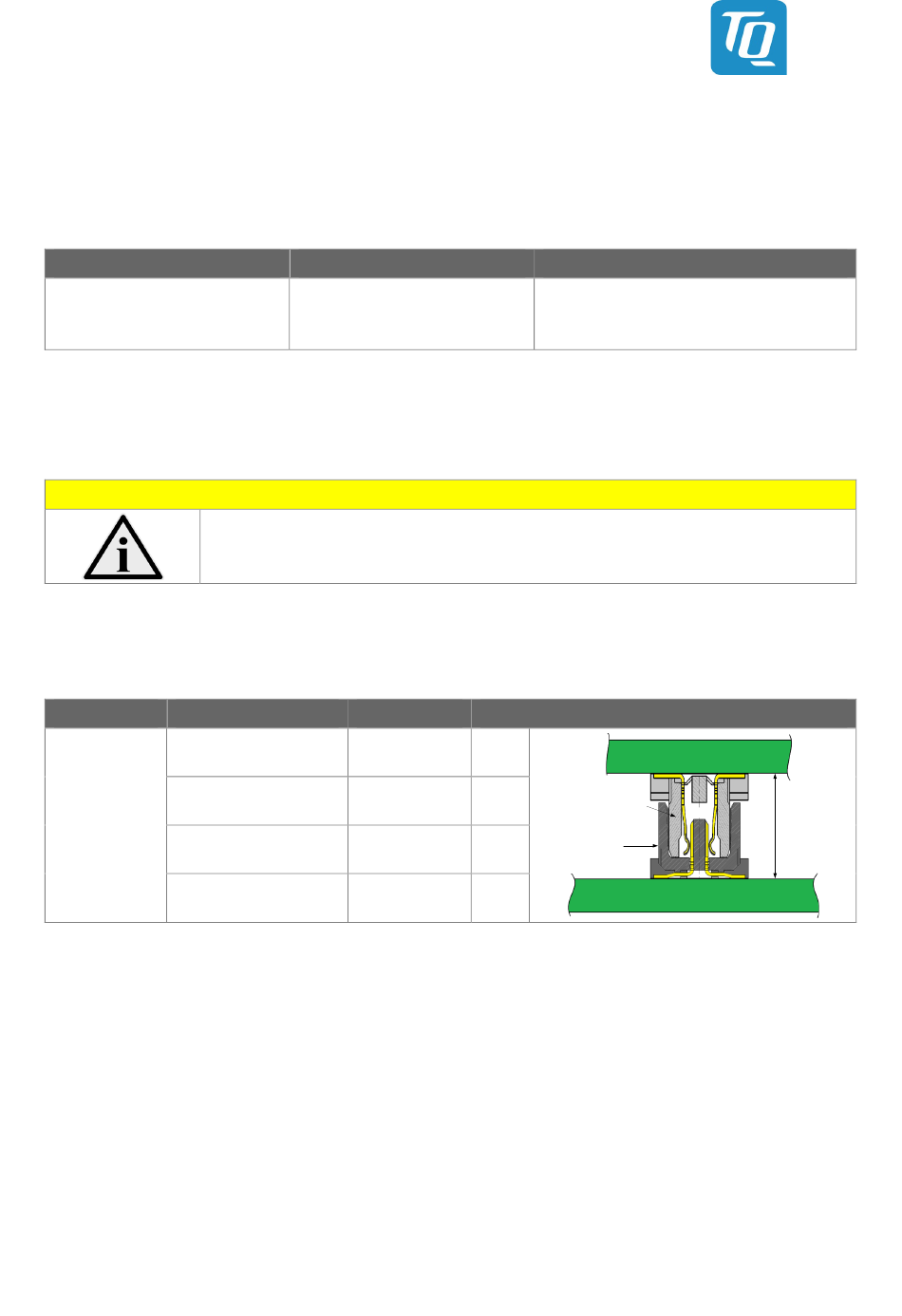

The following table shows some suitable mating connectors for the carrier board.
Table 17:
Carrier board mating connectors
Manufacturer
Pin count / part number
120-pin:
120-pin:
TE connectivity
120-pin:
120-pin:
5.4
Adaptation to the environment
The TQMLS1028A overall dimensions (length × width) are 55 × 44 mm
The LS1028A CPU has a maximum height of approximately 9.2 mm above the carrier board,
the TQMLS1028A has a maximum height of approximately 9.6 mm above the carrier board.
The TQMLS1028A weighs approximately 16 grams.
5.5
Protection against external effects
As an embedded module, the TQMLS1028A is not protected against dust, external impact and contact (IP00).
Adequate protection has to be guaranteed by the surrounding system.
User's Manual l TQMLS1028A UM 0101 l © 2020, TQ-Systems GmbH
Part number
5177985-5
Remark
5177986-5
On MBLS1028A
1-5177986-5
–
2-5177986-5
–
3-5177986-5
–
•
120-pin, 0.8 mm pitch
•
Plating: Gold 0.2 µm
•
–40 °C to +125 °C
Stack height (X)
5 mm
Receptacle
(TQ-Module)
6 mm
Plug
7 mm
(carrier board)
8 mm
2
.
Page 24
Remark
X
