4.2.3 Self-Reset on TQMLS1028A revision 02xx (continued)

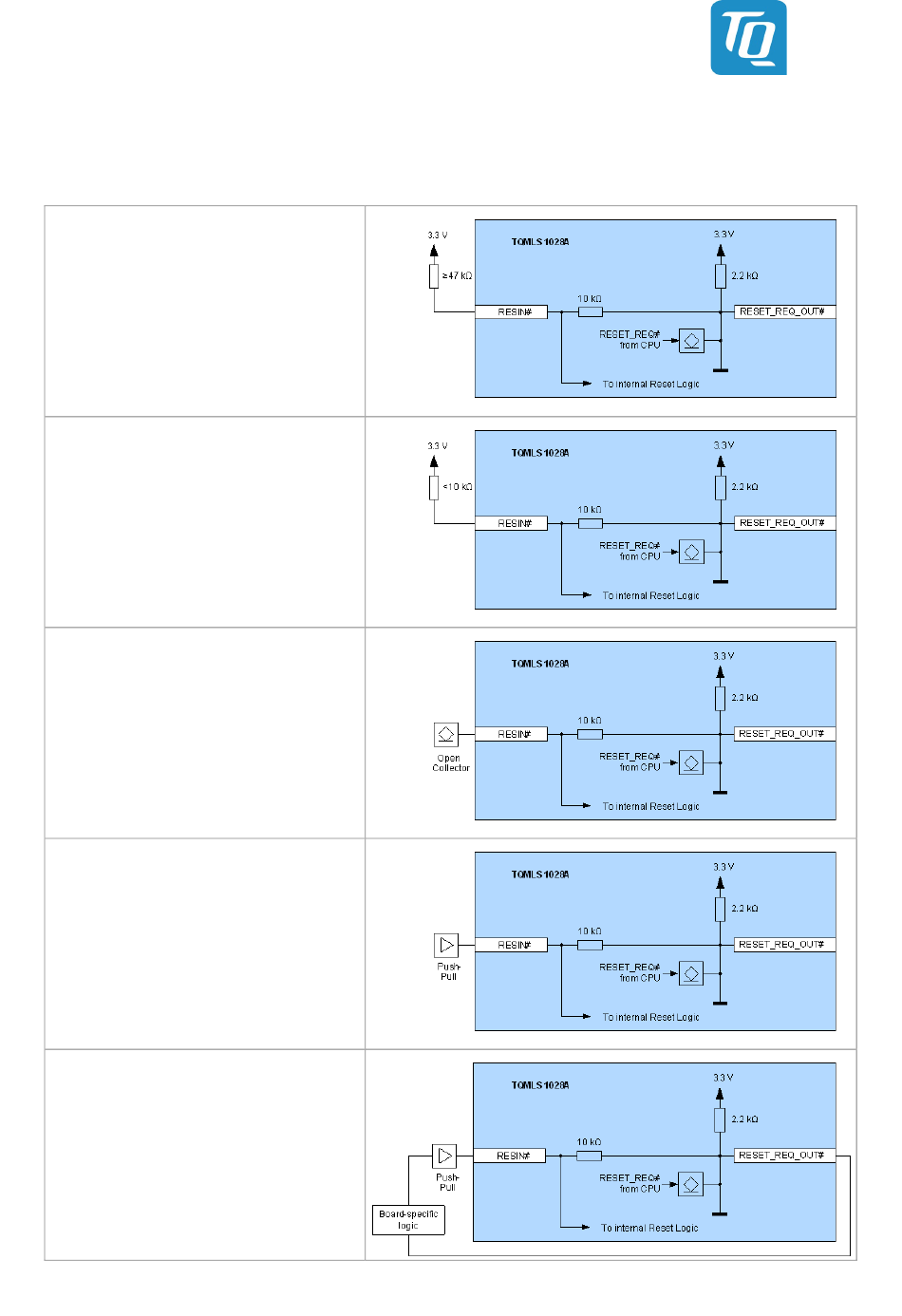

The following wirings show different possibilities to connect RESIN#.
Table 4: RESIN# connection
Self-Reset performed
when RESET_REQ# asserted by CPU.
No Self-Reset performed
when RESET_REQ# asserted by CPU.
Self-Reset performed
when RESET_REQ# asserted by CPU,
external reset signal connected to RESIN#.
No Self-Reset performed
when RESET_REQ# asserted by CPU,
external reset signal connected to RESIN#.
Self-Reset via external reset signal
using additional logic.
