Simrad RS100 Quick Start Manual

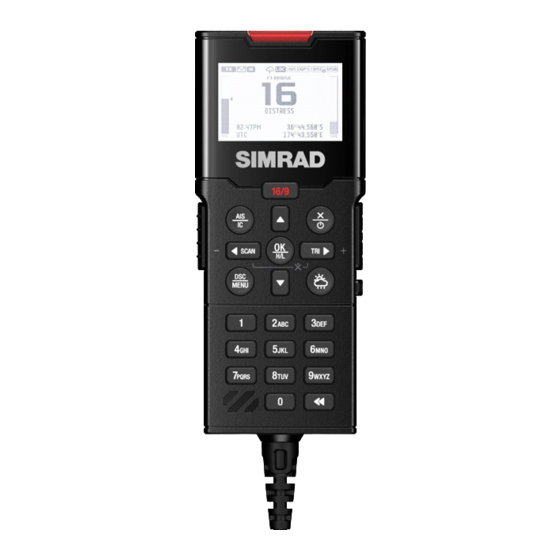

Handset keys and
its functions
Distress
A
A Distress call is broadcast
to all DSC equipped radios,
so it will create an alarm on
every DSC radio within range.
If position information is
available, it will be included in
the transmission.
Short press to commence
a distress call. Nature of the
distress can be selected from
the list. Long press to initiate
an immediate 'undesignated'
distress call.
16 / 9
B
Short press to change to the priority channel CH16. Press again to return to original
channel. Long press to make Channel 09 the priority channel (US/CAN country mode
only).
X / POWER
C
Short press in menu mode to EXIT when navigating menus, to clear incorrect entries,
to exit from a menu without saving changes, and to back up to the previous screen.
Short press in menu mode to change the backlight setting. Long press to turn the
radio system ON/OFF.
¼ Note:
The radio system can only be turned ON from any fixed handset (F1-F4).
¼ Note:
When the radio system is ON:
•
The radio system can only be turned OFF from the fixed handset 1 (F1).
•
Long presssing the X/POWER key from the fixed handset (F2-F4) will turn that
handset OFF. Long presssing the X/POWER key from the wireless handset (W1-W4)
will turn that handset OFF/ON.
PTT (Push-to-talk)
D
Press key to transmit. Only depress for duration of message to be broadcast. The radio
can't receive while PTT is pressed (transmitting).
RS100, RS100-B, V100, V100-B
Quick Start Guide
RS100 - RS100B - V100 - V100B |
G
L
16/9
N
AIS
D IC
OK
SCAN TRI
P H/L
K
DSC
MENU
U
1 2 3
ABC DEF
X
4 5 6
GHI JKL MNO
AA
8 9
7
TUV WXYZ
PQRS
Q
0
Quick Start Guide - EN
EN
A
S
B
E
C
I
O
J
M
H
VOL-SQL
F
W
V
Z
Y
AC
AB
R
T
|
1
