Technical specifications
Power
Power Supply
Power Consumption
Technical/Environmental
Housing
Waterproofing standard
Operating temperature
Storage temperature
Maximum Humidity
Connectors
Weight excluding bracket
Retention Bracket weight
*988-10223-002*
Dimensions - Single unit
18 mm (0.7")
12V DC nominal (via network)
Backlight off: 45mA @ 13.5V DC
Backlight max: 145mA @13.5V DC
ABS moulding
IPx7
-10° C to +55° C (+14° F to + 131° F)
-30° C to +70° C (-22° F to 158° F)
100%
1x male Micro-C
155 grams (0.34 lb)
25 grams (0.06 lb)
N2584
System Installation manual
System Operator manual
www.simrad-yachting.com
www.bandg.com
65 mm (2.5")
60 mm (2.4")
Suncover
outline
88 mm (3.5")
15 mm (0.6")
www.bandg.com | www.simrad-yachting.com
Dimensions - Multiple instruments
Min
65 mm
(2.5")

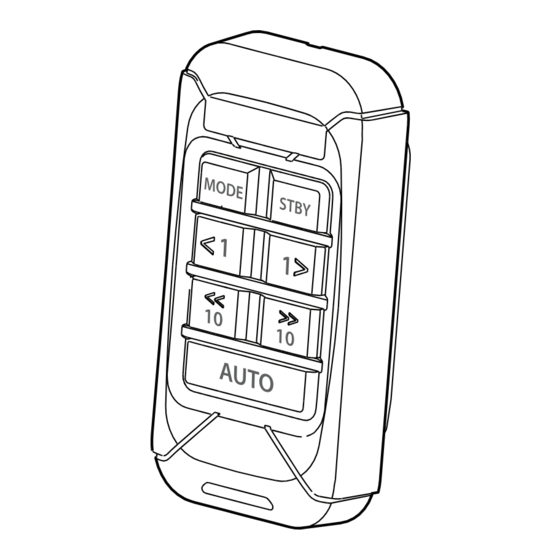

OP10/Triton Pilot
Controller
Installation Guide
English
Min 120 mm (5.5")
Advertisement
Table of Contents
Related Manuals for Simrad OP10
Summary of Contents for Simrad OP10

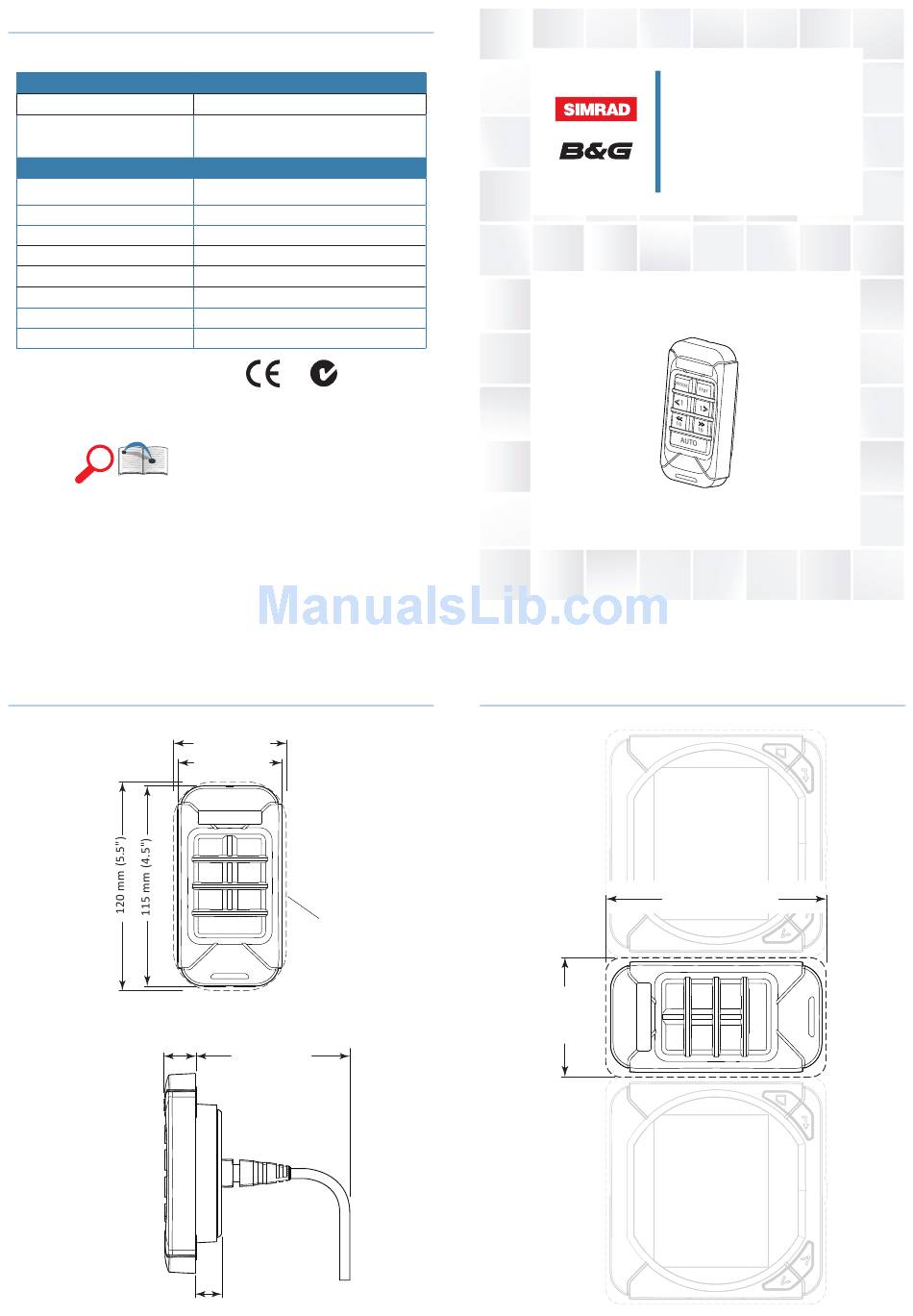

- Page 1 Technical specifications OP10/Triton Pilot Power Power Supply 12V DC nominal (via network) Controller Power Consumption Backlight off: 45mA @ 13.5V DC Installation Guide Backlight max: 145mA @13.5V DC Technical/Environmental English Housing ABS moulding Waterproofing standard IPx7 Operating temperature -10° C to +55° C (+14° F to + 131° F) Storage temperature -30°...
