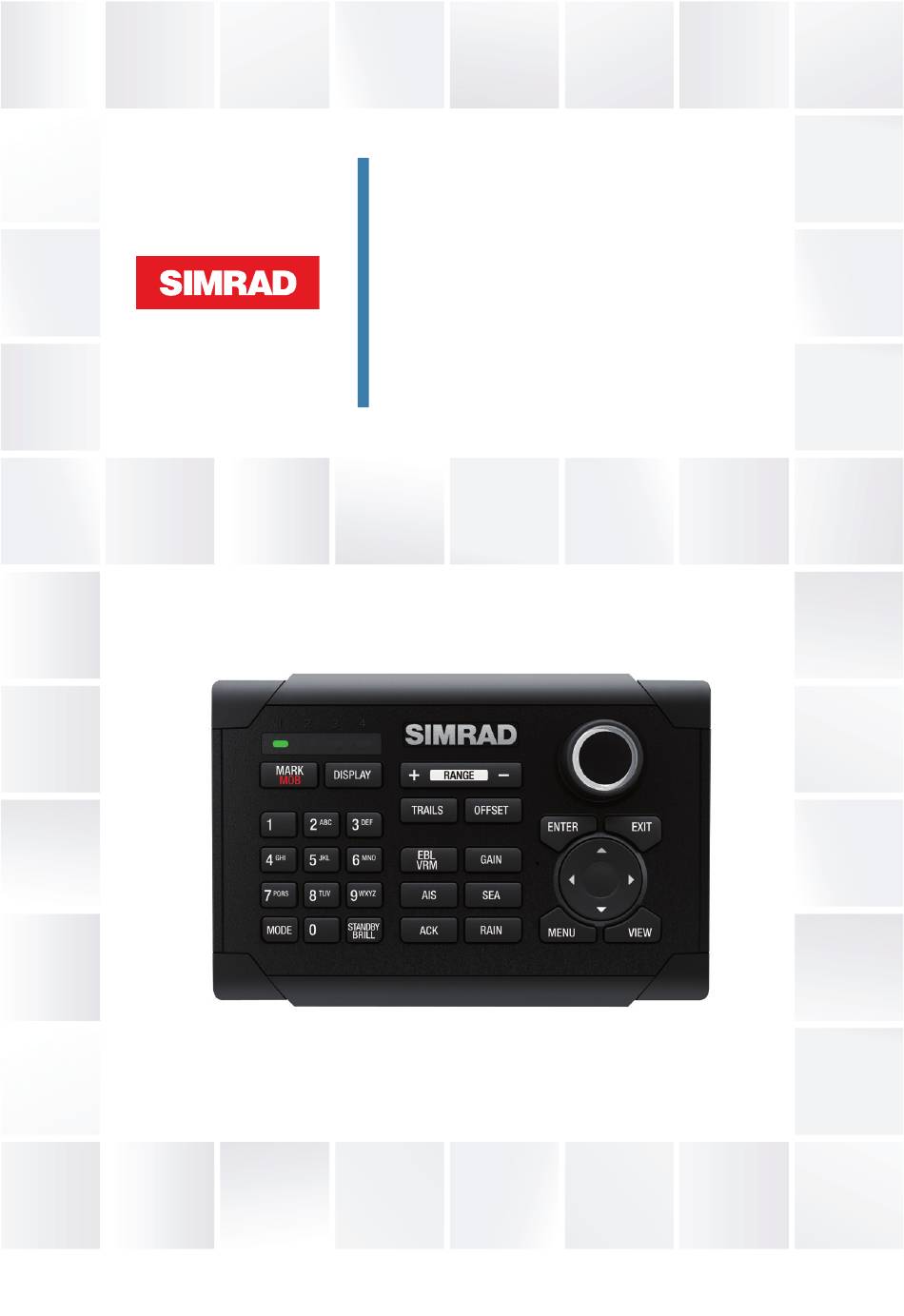

- Page 1 O2000 Controller User Guide ENGLISH navico-commercial.com...
-
Page 3: Technical Specifications
Introduction The O2000 Controller is designed to take remote control of up to 4 radar control units. You can have more than one O2000 Controller on the network. ¼ Note: The O2000 Controller cannot be used for MFD control. Technical specifications ¼... -
Page 4: Front Panel And Keys

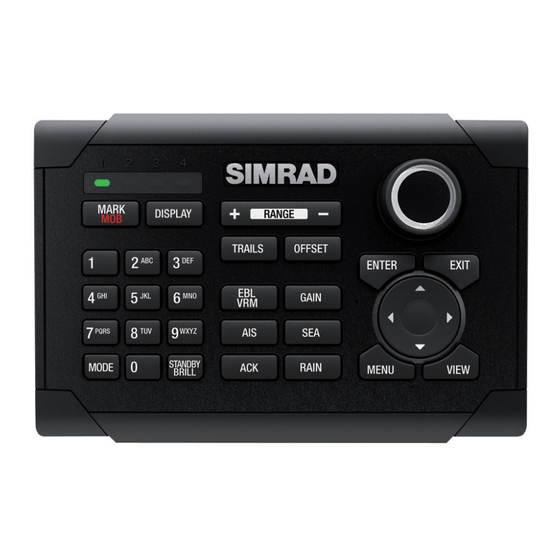

Front panel and keys PQRS WXYZ STANDBY... - Page 5 DISPLAY key. Press once to toggle through displays that are configured for the control of the O2000 Controller. Press and hold to turn the O2000 Controller to configuration mode. EBL/VRM key. Press once to toggle EBL/VRM markers On/Off. Press and hold to toggle between EBL/VRM 1 and EBL/VRM 2.
- Page 6 It will not be responsive until it has been assigned to control a radar control unit on the network. Turn ON all radar control units that are to be configured for O2000 control Press and hold the DISPLAY key on the O2000 Controller for 5...
- Page 7 Press the 1, 2, 3 or 4 key on the O2000 Controller to assign active radar control unit to LED position 1, 2, 3 or 4 respectively It is logical to assign LED(s) 1 through 4 (left to right) to units moving from left to right.
- Page 8 Radar control unit assigned to the LED Green - flashing position is powering up. Radar control unit assigned to the LED Green - steady position is ON and ready for O2000 control. All LEDs The O2000 Controller is in configuration Red - steady mode.
- Page 10 For regulatory compliance certificates and declarations, refer to the product website on: www.navico-commercial.com *988-10961-001*...
