- Page 1 OP50 Controller User Guide ENGLISH www.simrad-yachting.com...
-
Page 2: Compliance Statements
¼ Note: NMEA 2000® and the NMEA 2000 logo are registered trademarks of the National Maritime Electronics Association. Compliance Statements OP50 controller: • complies with CE under EMC directive 2014/30/EU • complies with the requirements of level 2 devices of the... -
Page 3: Front Panel And Keys

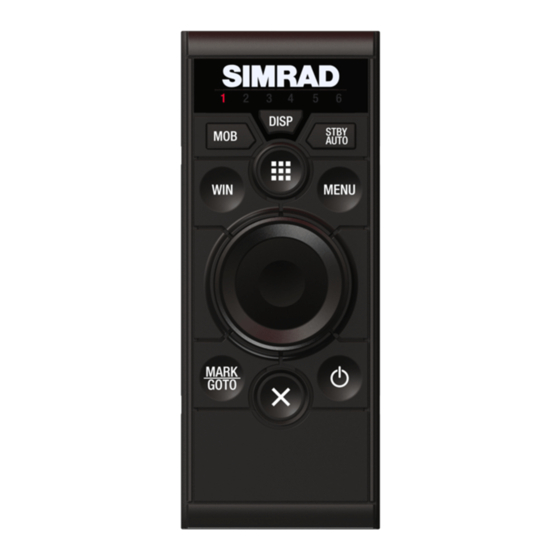

Front panel and keys DISP STBY AUTO MENU MARK GOTO MENU STBY AUTO DISP MARK GOTO... - Page 4 DISP (Display) key. Press once to toggle through displays that are configured for the control of the OP50. Press and hold to turn the OP50 to configuration mode. STBY/AUTO key. Switches the system to Standby mode if the autopilot is active.
- Page 5 Out of date software on MFDs will limit the remote control to 4 MFDs. From the factory the OP50 is not assigned to control any MFD. It will not be responsive until it has been assigned to control an MFD on the network.
- Page 6 Press the DISP key to toggle through the LEDs. DISP Once a LED has red steady light the OP50 is in control of the MFD assigned to that LED. The MFD controlled by the OP50 has a small icon on the screen.
-
Page 7: Technical Specifications
Technical specifications ¼ Note: For updated technical specifications, compliance and certifications, refer to our website. Weight & Dimensions Dimensions 150 mm x 60 mm (H x W) 5.9 in x 2.3 in (H x W) Weight 0.36 kg (0.8 lbs) with cable Power Power supply 12 V DC (Micro-C) - Page 8 For regulatory compliance certificates and declarations, refer to the product website on: www.simrad-yachting.com *988-10906-001*...
