Page 1

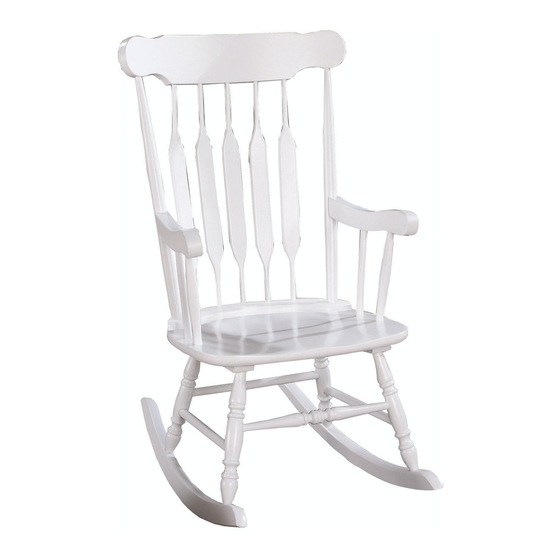

600174 ROCKING CHAIR ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE www.coastercompany.com PAGE 1 OF 4 REVISION 0: 09/25/2013...
Page 2
600174 ITEM : ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
Page 3
600174 ITEM : ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 Align and fasten front and back stretchers to left and Place wooden seat upside down on soft surface. right leg frame using barrel nut, long bolt, lock washer Align and fasten left and right leg frame to and small flat washer and tighten with Allen wrench.
Page 4
600174 ITEM : ASSEMBLY INSTRUCTIONS STEP 4 4.1) Align and fasten left and right arm rest to wooden seat using long bolt, lock washer and big flat washer.DO NOT FULLY TIGHTEN AT THIS STEP. 4.2) Align and fasten left and right arm rest to chair back using long bolt, lock washer and small flat washer.
