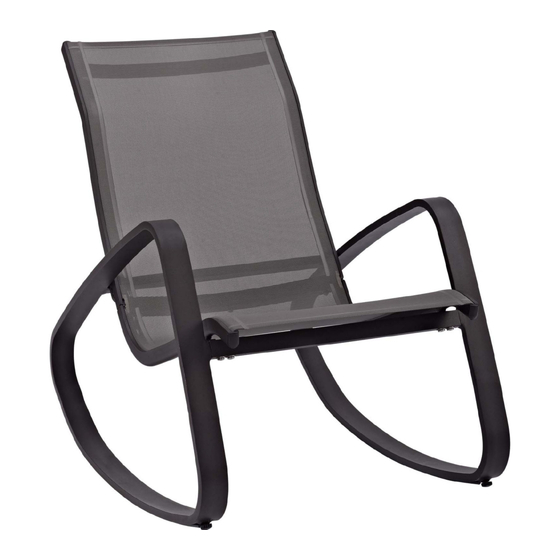

EEI –3027 ROCKING CHAIR
Thank you for purchasing the MODWAY ROCKING CHAIR！
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
1
Mesh with Frame x 1
Customer Service 908-368-1025︱www.modwayfurniture.com
3
1
2
2 Left Arm x 1
Hardware:
A.
Bolt M6x35mm
B.
Bolt M6x25mm
C.
Bolt M6x15mm
D.
Flat Washer
E.
Nut
F.
Allen Wrench
G.
Wrench
4
4
3 Right Arm x 1
x 3
x 4
x 8
x 15
x 3
x 1
x 1
4 Rail x 2
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for modway EEI-3027
Summary of Contents for modway EEI-3027
- Page 1 EEI –3027 ROCKING CHAIR Thank you for purchasing the MODWAY ROCKING CHAIR！ Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –3027 ROCKING CHAIR STEP 1: Please open Mesh with Frame (1) and put on a carpeted or padded surface. Insert 3 pieces of Bolts (A) with 3 pieces of Flat Washers (D) into the top holes on the back frame of Mesh with Frame (1) as shown.
- Page 3 EEI –3027 ROCKING CHAIR STEP 3: Insert Left Arm (2) into the pre-drilled holes on Rails (4) as shown. STEP 4: Insert 4 pieces of Bolt (C) with 4 pieces of Flat Washers (D) into the pre-drilled holes on Rails (4). Tighten Bolts (C) by using Allen Wrench (F) as shown Hardware &...
- Page 4 EEI –3027 ROCKING CHAIR STEP 5: Attach Right Arm (3) into the pre-drilled holes on Rail (4) then insert 4 pieces of Bolts (C) with 4 pieces of Flat Washers (D) as shown. Tighten Bolts (C) by using Allen Wrench (F) as shown. Hardware &...
